Product Details

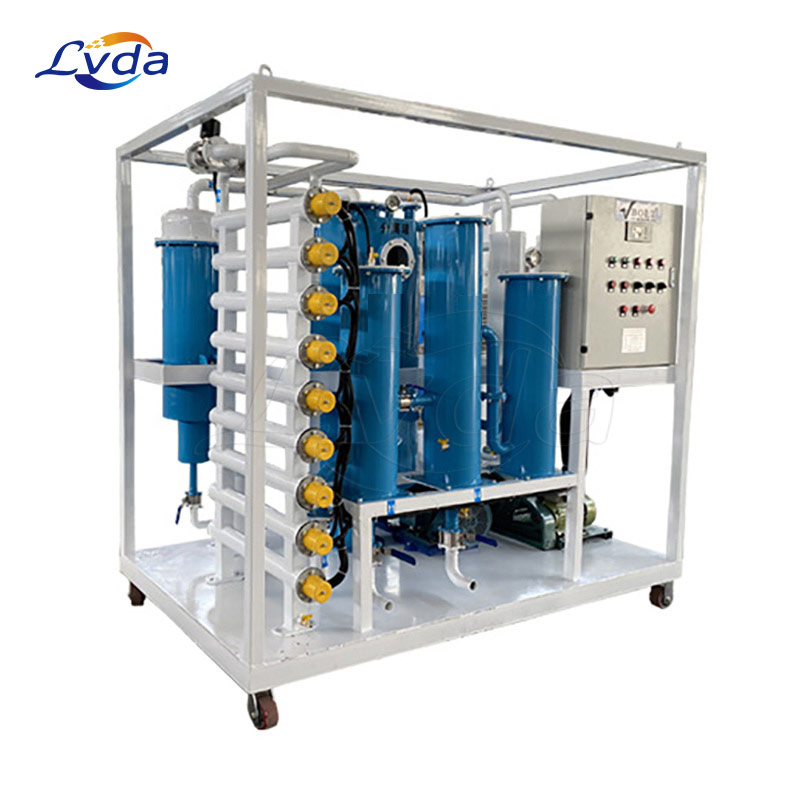

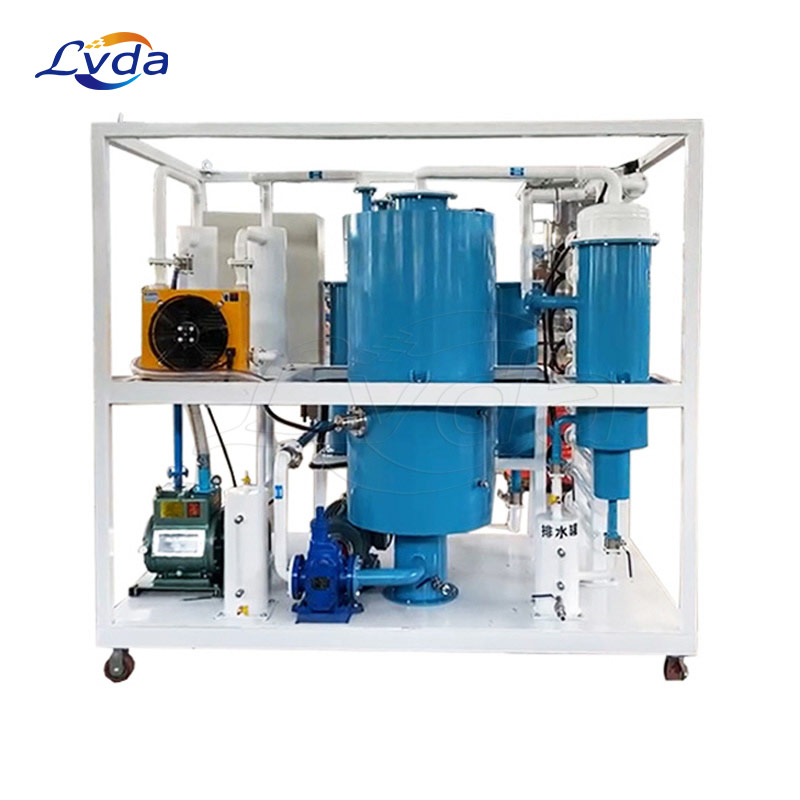

Our Multi-functional Decoloration Machine utilizes the physical treatment, on the premise of without affecting the components and the performance of the oil,to rapidly remove the color, moisture, impurities (particulate impurities and mechanical impurities) and gases(acetylene, hydrogen, methane etc) and other harmful ingredients, etc. in the lubricating oil,thus improving the quality of the oil and recovering oil’s viscosity, flash point and properties to make the oil purified and regenerated; and can effectively ensure the normal operation of equipment; meanwhile improve the life cycle and avoid accidents.
This machine adopts the the latest micro-filtration technology,which is a multi-functional purification system with vacuum oil filter, fine filter and decolorizing device.It uses pure physical treatment to remove water, gases, impurities and decolor,which will not affect the composition and performance of the oil. Equipped with chain protection device, the machine is easy to operate, safe and reliable.
What we do:
-Transformer Oil Filtration System
-Vacuum Pumping Set for Evacuating Transformer
-Lubricating Oil Purification Plant
-Hydraulic Oil Purification Machine
-Turbine Oil Filtration System
-UCO Purification Processing Plant
-Light Fuel Oil Filtering Unit
-Waste Lube Oil Decolorizing Purifier
-Portable Oil Purifiers and Oil Filling Unit
Weather Proof House, Mobile Trailer, PLC Automatic Control System, Explosion-Proof Device can be added to each of the above model.
So, welcome to choose our lube oil decolorizing purifier!
Product parameters
| Technical item | Unit |
|
|
| Model |
|
|
|
|
| AD-30 | AD-50 | AD-100 | AD-150 | AD-200 | AD-250 | AD-300 |
| Flow | L/min | 30 | 50 | 100 | 150 | 200 | 250 | 300 |
| Average power | Kw/h | 7 | 7 | 9 | 9 | 12 | 15 | 15 |
| Heating power | Kw/h | 3 | 4.5 | 6 | 6 | 9 | 9 | 11 |
| Working vacuum | Mpa |
|
|
| -0.04～-0.098 |
|
|
|
| Working oil temperature | ℃ |
|
|
| 30～160 |
|
|
|
| Working pressure | MPa |
|
|
| ≤0.8 |
|
|
|
| With power supply | V |
|
|
| 380 |
|
|
|
| Noise | db(A) |
|
|
| ≤70 |
|
|
|
Features
Fast decolorization, obvious effect, pure physical oil purification method, high degree of automation, simple and convenient operation, and movable. It can effectively remove pollutants in oil products, degas, dehydrate, remove mechanical impurities and severely oxidized sludge, asphaltenes, carbon residues, colloids, chromatin, etc.;
The various properties and physical and chemical indicators meet the relevant oil standards, and improve the cleanliness, flash point and emulsification performance of the oil.
Applications
Electric power, petroleum, chemical industry, metallurgy, mining, machinery, aviation, shipbuilding, railway and many other industries.
It is mainly used for the centralized regeneration of various red and blackened dirty oils and scrapped oils. Oils such as Hydraulic Oil,Turbine Oil,Lubrication Oil,Gear Oil,Transformer Oil,Diesel Fuel,Phosphate Ester (Fyrquel EHC Fluid),PAO Fluid.
