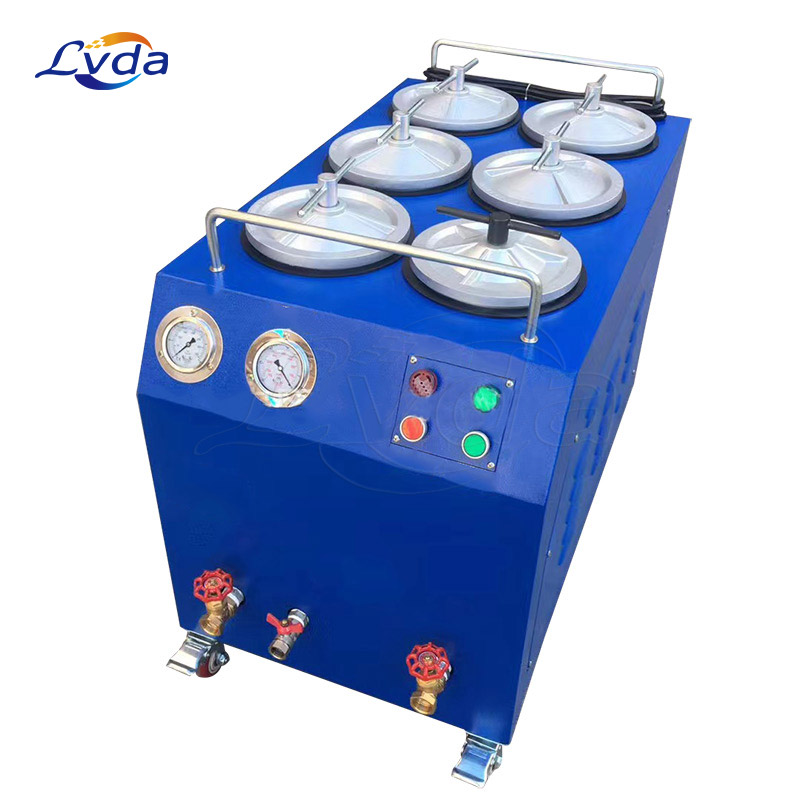

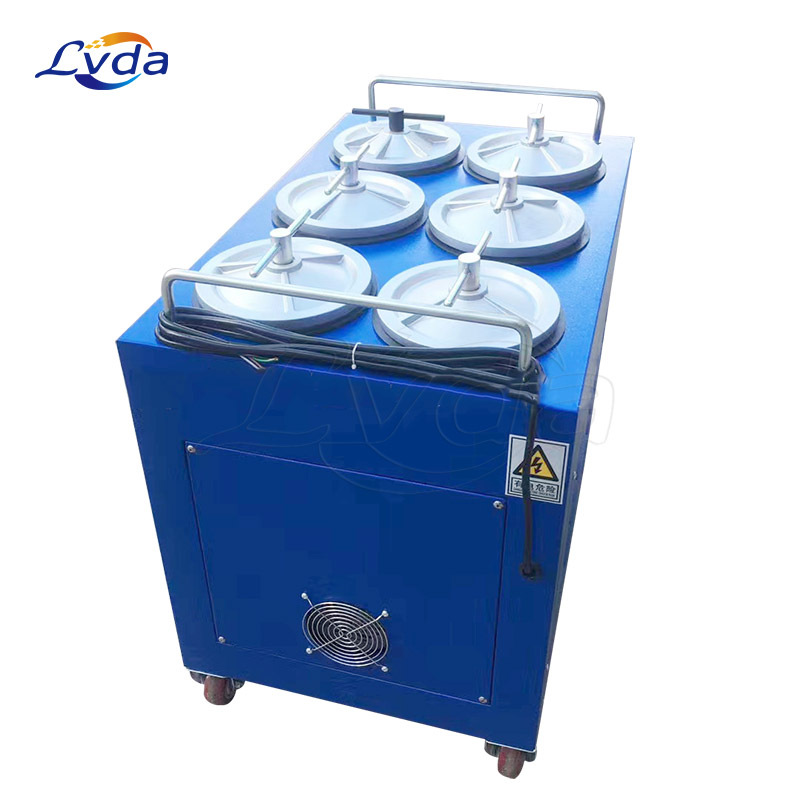

Product Details
As a new product, high precision lube oil purifier is suitable for treatment of oil with high viscosity. As the new technology, vacuum-segregating employs a particular stainless steel, foldable column for dehydration and degassing , and enlarges the area of separatingto facilate three-dimensional evaporation, so as to abtain enough time for degrassing and achieve the best effect of separation. Using new type of heating equipment, which has low heating load and is able to prevent oil from ageing. It uses an imported liquid ring vacuum pump and takes cooling liquid (or water) as a lubracating meduim. Thus it wont matter if gas enters the vacuum pump, and users need not to bother to replace the medium-functioning oil in the roatry vane vacuum pump. oil level control adopt photoelectric way ( the main components is chinamade )and features a very sensitive precise control. Even foams can be sensed, and thus there is no possibility of oil spray.. It uses a special high-vicosity oil feed pump and a special sealing treatment. It is free from oil leakage, low in operation noise, and long in useful life. it also features a scientifically designed precision filtering element. In this filter, china-made filtering elements can be inter-replaced with italy imported ones so that users can resort to a suitable filter material according to the quality of different oil. Thus the use costs and oil treatment effects can be taken into balanced account.
Technical parameter
| Model | AOP-S- 1R-* | AOP-S-2 R-* | AOP-S-3 R-* | AOP-S-4 R-* | AOP-S-5 R-* | AOP-S-6 R-* | AOP-S-7 R-* |
| Rated flow(L/min) | 3 | 6 | 9 | 12 | 15 | 18 | 24 |
| Rated pressure(MPa) | 1.6 |
| Mpa(MPa) | ≤0.25 |
| Coarse filter precision(μm) | 100 |
| Fine filter precision(μm) | NAS1638 3-6 Grade |
| Differential pressure | 0.8Mpa |
| Working temperature(°C) | 5-80 |
| Recommended viscosity(cSt) | 10-180 |
| Voltage(V) | AC380V(Three- phase)、50Hz |
| Motor power(kw) | 0.2 | 0.2 | 0.4 | 0.4 | 0.55 | 0.75 | 0.75 |
| Weight(kg) | 66 | 86 | 90 | 108 | 112 | 120 | 135 |
| Dimensions(mm) | 380x500x680 | 380x500x680 | 600x500x680 | 600x500x680 | 860x500x1000 | 1100x500x1000 | 100x500x1000 |
Features
-High-fficiency electric heating system, automatic control, less power consumption.
-Strong ability of demulsific ation, separating oil and water fficinty.
-Large area three-dimensional flash disillation technology.
-Interlocking protection mechanism.
-Automatic oil level controller.
-Humanized design, easy control for operation and supervision.
-Automatic pressure protect system.
Applications
Feed stocks to protect catalytic reactor beds
LPG, gasoline, diesel, and jet fuel final products
Many other contaminated products that can be
found in a variety of storage tanks in a plant
Amine (rich and lean)
Aromatic extraction solvents
Dehydration solvents
Sour water
Make-up water
Pre-filtration for liquid/liquid separations
Lubricant oil filtration
Hydraulic lubrication system fltration during refueling
Bypass filration during operation of hydraulic lubrication system
Comprehensively improve the cleanliness of hydraulic lubrication system
