Product Details

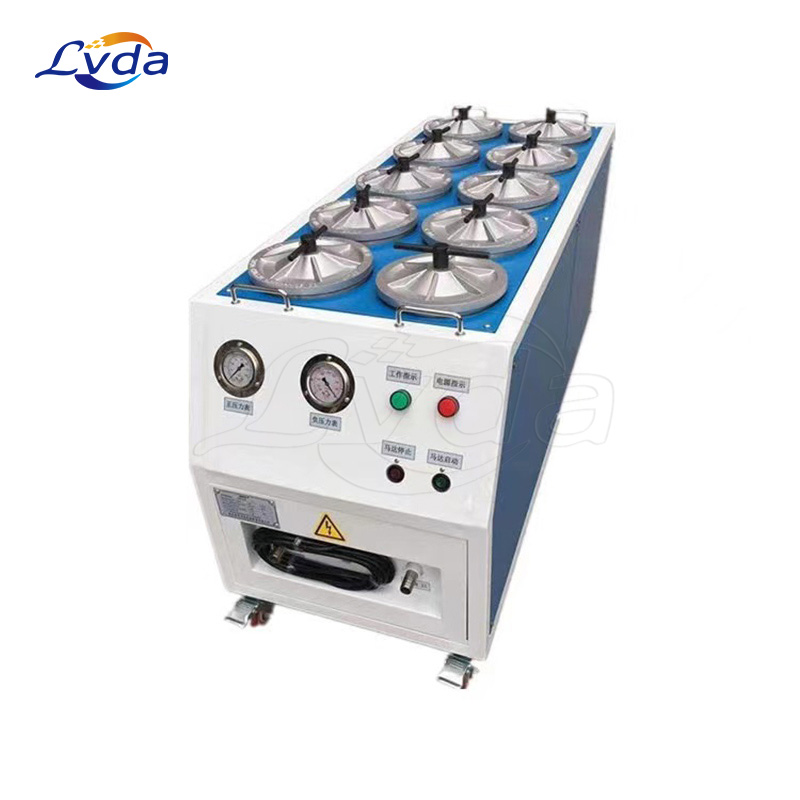

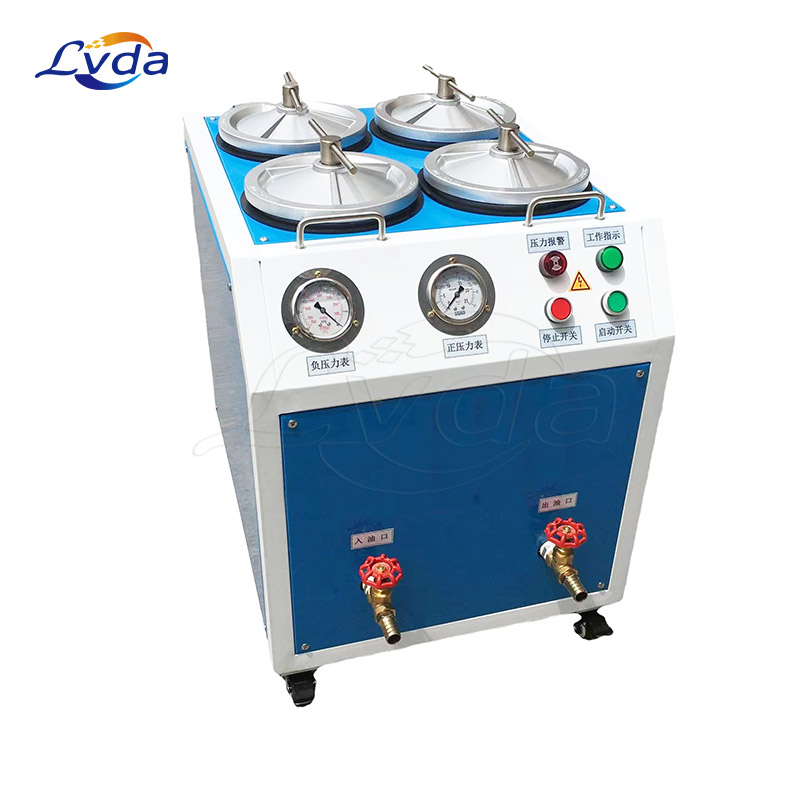

The high precision oil purifier portable lube oil filtering machine employs a multi-stage filtration system. It is easy to operate and easy to maintain. Besides, our high precision oil purifier portable lube oil filtering machine is suitable for filtering various impurities such as insulating oil, turbine oil, mechanical oil and hydraulic oil. It can be equipped with different filter elements. Low cost and high filtration precision are the regenerative products of plate and frame pressure oil purifiers.
For more than 20 years our corporation has been solving complex contamination problems across the refining, petrochemical and oil and gas industries. By applying our advanced filtration and separation technologies directly to the problem, we’re able to help operators reduce maintenance costs and minimize unscheduled shutdowns. Our high precision oil purifier portable lube oil filtering machine is proven to efficiently filter contaminants from a wide variety of process and product streams, which can cause a multitude of costly operational and fluid quality issues.
Technical parameter
| Model | AOP-S- 1R-* | AOP-S-2 R-* | AOP-S-3 R-* | AOP-S-4 R-* | AOP-S-5 R-* | AOP-S-6 R-* | AOP-S-7 R-* |
| Rated flow(L/min) | 3 | 6 | 9 | 12 | 15 | 18 | 24 |
| Rated pressure(MPa) | 1.6 |
| Mpa(MPa) | ≤0.25 |
| Coarse filter precision(μm) | 100 |
| Fine filter precision(μm) | NAS1638 3-6 Grade |
| Differential pressure | 0.8Mpa |
| Working temperature(°C) | 5-80 |
| Recommended viscosity(cSt) | 10-180 |
| Voltage(V) | AC380V(Three- phase)、50Hz |
| Motor power(kw) | 0.2 | 0.2 | 0.4 | 0.4 | 0.55 | 0.75 | 0.75 |
| Weight(kg) | 66 | 86 | 90 | 108 | 112 | 120 | 135 |
| Dimensions(mm) | 380x500x680 | 380x500x680 | 600x500x680 | 600x500x680 | 860x500x1000 | 1100x500x1000 | 100x500x1000 |
Features
Fully valved and piped on skid (clean and dirty side vents and drains)
PSV connection and pressure safety valve
Local differential pressure gauge
Full bore flange with lifting davit
Integrated, valved fluid sampling panel for influent and effluent samples
Filter vessel complies with ASME Code, Section VIII, Div.1
7HFH skid: Maximum hydraulic flow capacity: 795 m3/hr (3,500 USGPM) (120,000 bbl/day)
Single-point lifting with sling; lifting points at four corners of skid
Fork lift slots for portability
The machine apply vacuum flash separation technology and steps evaporation technology, high-efficiency dehydration, and emulsification to make oil quickly reach the standard of use.
The safe and reliable electric heating system adopts carbon fiber heating technology to ensure heating and uniform oil temperature stability while reducing energy consumption.
Chinamade a multi-stage precision filter element, which can effectively remove all kinds of impurities and encrypt it step by step, with a large amount of dirt and long service life.
Our mobile precision oil purifier and oiling machine adopts the technology to ensure that the equipment will not spray oil during operation, safe and stable operation.
Automatic overload protection, automatic pressure shutdown, ensuring the safe operation of the whole machine.
The machine is equipped with a trailer device on the basis of the oil filter machine to facilitate fieldwork.
In addition to oil filter equipment, we also provide products for testing oil, as well as dry air generators, etc., and have a variety of customized equipment to choose from.
Applications
This high precision oil purifier portable lube oil filtering machine can be widely used in the industries such as power station, electricity factory,power electrical substation of industrial and mineral enterprise, lube oil depot, tractor station, petroleum, chemical engineering, metallurgy, national defense unit, etc, filtering water and impurities of transformer oil, turbine oil, engine oil, EP gear oil, machine oil, diesel oil, kerosene, hydraulic oil, aviation hydraulic oil, as well as edible oil while using stainless steel plates and frame.
