Product Details
For more than 20 years our Corporation has been solving complex contamination problems across the refining, petrochemical and oil and gas industries. By applying our advanced filtration and separation technologies directly to the problem, we’re able to help operators reduce maintenance costs and minimize unscheduled shutdowns. Our machine is proven to efficiently filter contaminants from a wide variety of process and product streams, which can cause a multitude of costly operational and fluid quality problems.

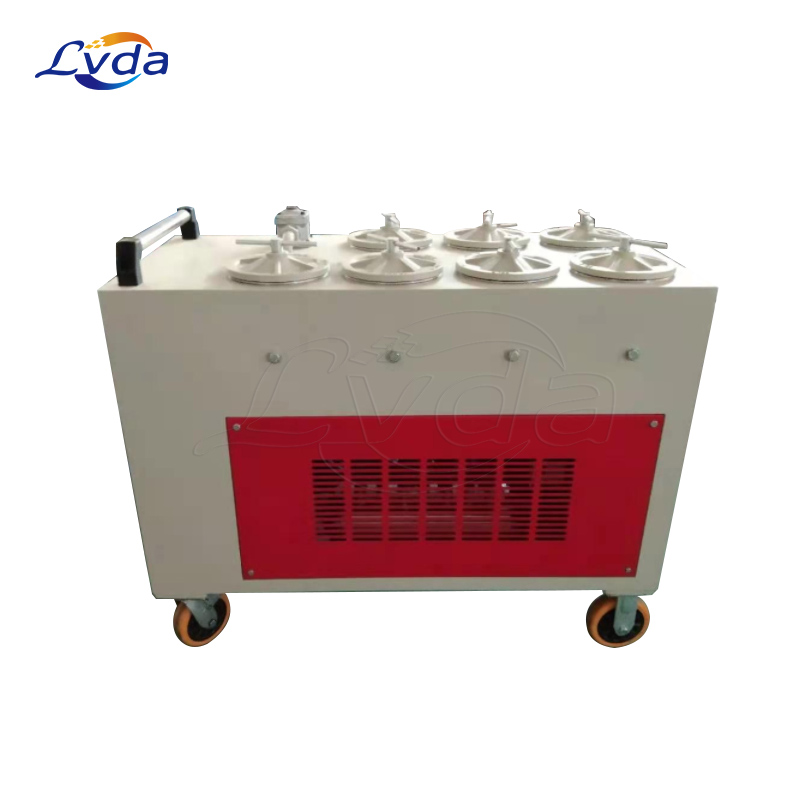

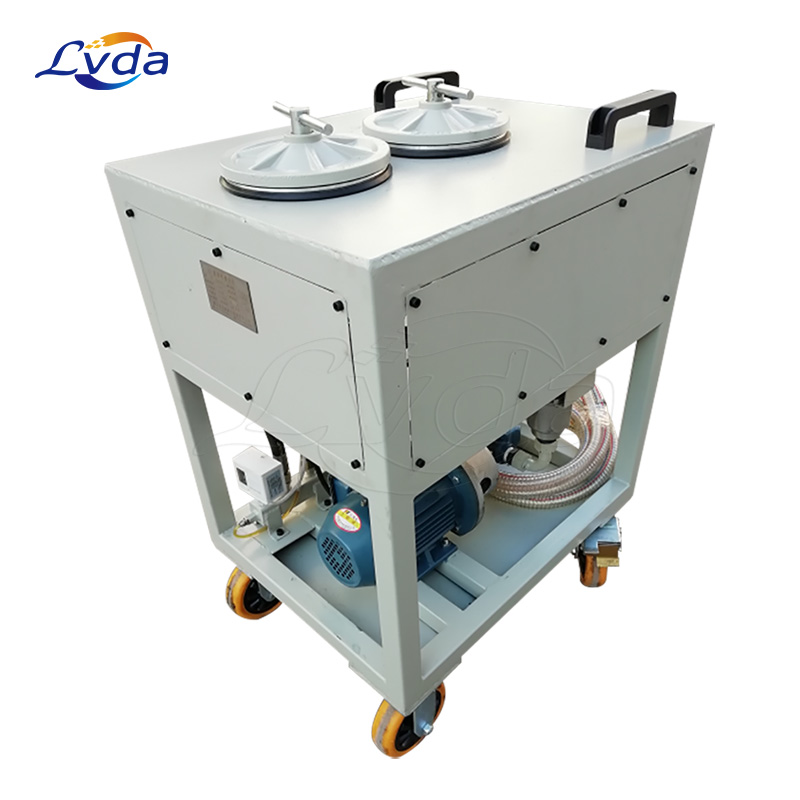

Bypass filtration portable high accuracy oil purifier portable oil purifier is to filter the oil which is filled up in hydraulic lubrication systerm, to establish equipment periodic maintenance. The by-pass filtration for the working hydraulic lubrication system. The circulation filtration before hydraulic lubrication system in motion. The oil of hydraulic lubrication system is filtered and pumped without the pump of equipment itself. It includes a special gear wheel drove by electric machinery,it has features of low noise,good self-priming and stable performance. Excess flow protection device has been fitted in high pressure pipelines to protect hydraulic system. Using thermal overload relay to provide overload protection for electric machinery.The coarse suction filter can not only protect oil pump but aslo prolong the service life of main filter. It is consist of two grades to sift the procedure of examining precisely after the pump, make the oil reach very high cleanness degree. According to different requirements,the filter precision can be selected to reach different oil rate. With quick-opening structure on the filter body,the filter elements can be replaced conveniently without any other tools,the pressure gauge on the panel indicates system state and pollution degree of filter element continuously.
Technical parameter
| Model | AOP-S- 1R-* | AOP-S-2 R-* | AOP-S-3 R-* | AOP-S-4 R-* | AOP-S-5 R-* | AOP-S-6 R-* | AOP-S-7 R-* |
| Rated flow(L/min) | 3 | 6 | 9 | 12 | 15 | 18 | 24 |
| Rated pressure(MPa) | 1.6 |
| Mpa(MPa) | ≤0.25 |
| Coarse filter precision(μm) | 100 |
| Fine filter precision(μm) | NAS1638 3-6 Grade |
| Differential pressure | 0.8Mpa |
| Working temperature(°C) | 5-80 |
| Recommended viscosity(cSt) | 10-180 |
| Voltage(V) | AC380V(Three- phase)、50Hz |
| Motor power(kw) | 0.2 | 0.2 | 0.4 | 0.4 | 0.55 | 0.75 | 0.75 |
| Weight(kg) | 66 | 86 | 90 | 108 | 112 | 120 | 135 |
| Dimensions(mm) | 380x500x680 | 380x500x680 | 600x500x680 | 600x500x680 | 860x500x1000 | 1100x500x1000 | 100x500x1000 |
Features
The machine apply vacuum flash separation technology and steps evaporation technology, high-efficiency dehydration, and emulsification to make oil quickly reach the standard of use.
The safe and reliable electric heating system adopts carbon fiber heating technology to ensure heating and uniform oil temperature stability while reducing energy consumption.
Chinamade a multi-stage precision filter element, which can effectively remove all kinds of impurities and encrypt it step by step, with a large amount of dirt and long service life.
Our mobile precision oil purifier and oiling machine adopts the technology to ensure that the equipment will not spray oil during operation, safe and stable operation.
Automatic overload protection, automatic pressure shutdown, ensuring the safe operation of the whole machine.
This machine is equipped with a trailer device on the basis of the oil filter machine to facilitate fieldwork.
In addition to oil filter equipment, we also provide products for testing oil, as well as dry air generators, etc., and have a variety of customized equipment to choose from.
Applications
Feed stocks to protect catalytic reactor beds
LPG, gasoline, diesel, and jet fuel final products
Many other contaminated products that can be
found in a variety of storage tanks in a plant
Amine (rich and lean)
Aromatic extraction solvents
Dehydration solvents
Sour water
Make-up water
Pre-filtration for liquid/liquid separations
