Product Details

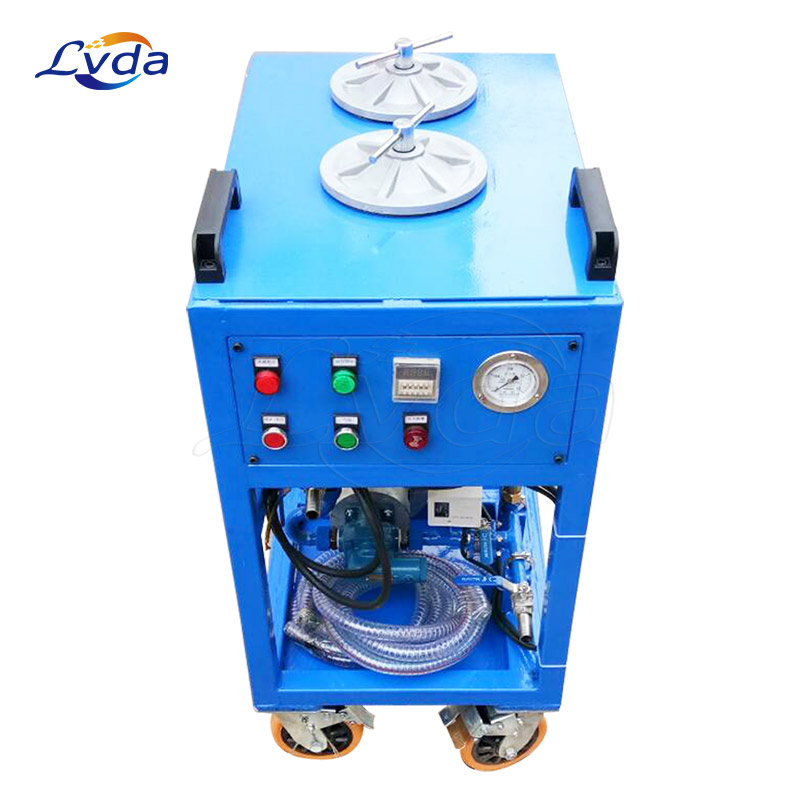

High-precision fluidcleaner mobile oil purifier machine is composed of four-stage oil filter element. And as designed to be trolley type, so it is portable.This high-precision fluidcleaner mobile oil purifier machine is simple and easy to operate, low cost. So it is a three-stage oil purification system which has strong filtering capacity for many different kind of contaminated oil, which has high capacity impurities, or low, and big particles or small, it’s suitable for all occasions use and most requirements can be satisfied well at one time. it’s also very portable and easy to move for on-site filtration work with trolley design. High-precision fluidcleaner mobile oil purifier machine can be customized for different filtering requirements depends on customer’s actual needs so to satisfy different use application. The high-precision fluidcleaner mobile oil purifier machine can effectively purify the big particles, and tiny& fine mechanical impurity from contaminated oil fast and thoroughly as required. The High-precision fluidcleaner mobile oil purifier machine is simple and easy operating, very low price, and low consumption for spare parts. It is no need of purification paper, and no contamination to the ground. This high-precision fluidcleaner mobile oil purifier machine is an ideal substitute of the board-frame oil purifier and the centrifugal oil purifier. It is also can serve as precise filtering and oiling. This high-precision fluidcleaner mobile oil purifier machine can quickly remove moisture, gas, impurities and volatiles (gasoline, diesel, kerosene, etc.) from oil. Improve oil quality, restore lubricating oil viscosity, flash point and performance. Ensure the normal operation of hydraulic system, power system and lubrication system.
Technical parameter
| Model | AOP-S- 1R-* | AOP-S-2 R-* | AOP-S-3 R-* | AOP-S-4 R-* | AOP-S-5 R-* | AOP-S-6 R-* | AOP-S-7 R-* |
| Rated flow(L/min) | 3 | 6 | 9 | 12 | 15 | 18 | 24 |
| Rated pressure(MPa) | 1.6 |
| Mpa(MPa) | ≤0.25 |
| Coarse filter precision(μm) | 100 |
| Fine filter precision(μm) | NAS1638 3-6 Grade |
| Differential pressure | 0.8Mpa |
| Working temperature(°C) | 5-80 |
| Recommended viscosity(cSt) | 10-180 |
| Voltage(V) | AC380V(Three- phase)、50Hz |
| Motor power(kw) | 0.2 | 0.2 | 0.4 | 0.4 | 0.55 | 0.75 | 0.75 |
| Weight(kg) | 66 | 86 | 90 | 108 | 112 | 120 | 135 |
| Dimensions(mm) | 380x500x680 | 380x500x680 | 600x500x680 | 600x500x680 | 860x500x1000 | 1100x500x1000 | 100x500x1000 |
Features
*Purifers are equipped with a chain safety protective system, an interlocking of oil drainage system, vacuum system and heating system, which avoids any possible negative impacts caused by mal-operation.
*Advanced dehydrating and degassing system that uses large area three-dimensional flash distillation technique to remove harmful composition in the oil such as water, air and gas.
*It can be widely used for oil flling for transformers and circuit breakers under vacuum condition.
*It is humanization design with low noise, deep purfication and long time free maintenance to save cost from the running process.
*Precise fltration system, high-quality filter element, multi-stage filtration with gradual precision can help to remove
mechanical impurities in the oil.
*Online work, allowing separated operation of manual operators from machine with lamps indicating the condition for operation.
*An advanced fully automatic temperature controlling system, liquid-level controlling system, defoaming controlling system, pressure protecting system and excellent configuration can ensure operation of the equipment with high performance.
Applications
Feed stocks to protect catalytic reactor beds
LPG, gasoline, diesel, and jet fuel final products
Many other contaminated products that can be
found in a variety of storage tanks in a plant
Amine (rich and lean)
Aromatic extraction solvents
Dehydration solvents
Sour water
Make-up water
Pre-filtration for liquid/liquid separations
