Product Details

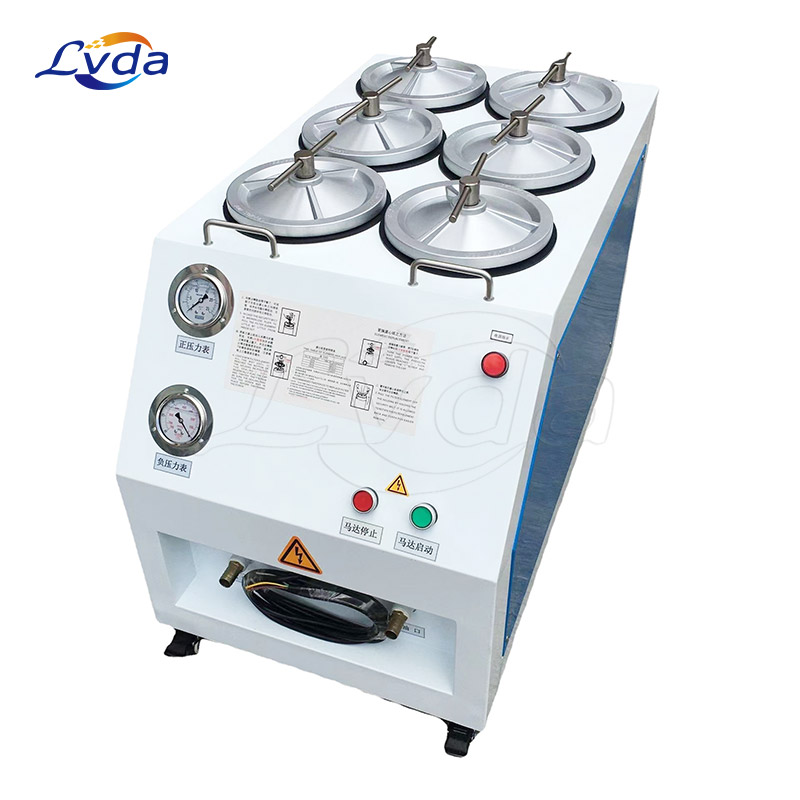

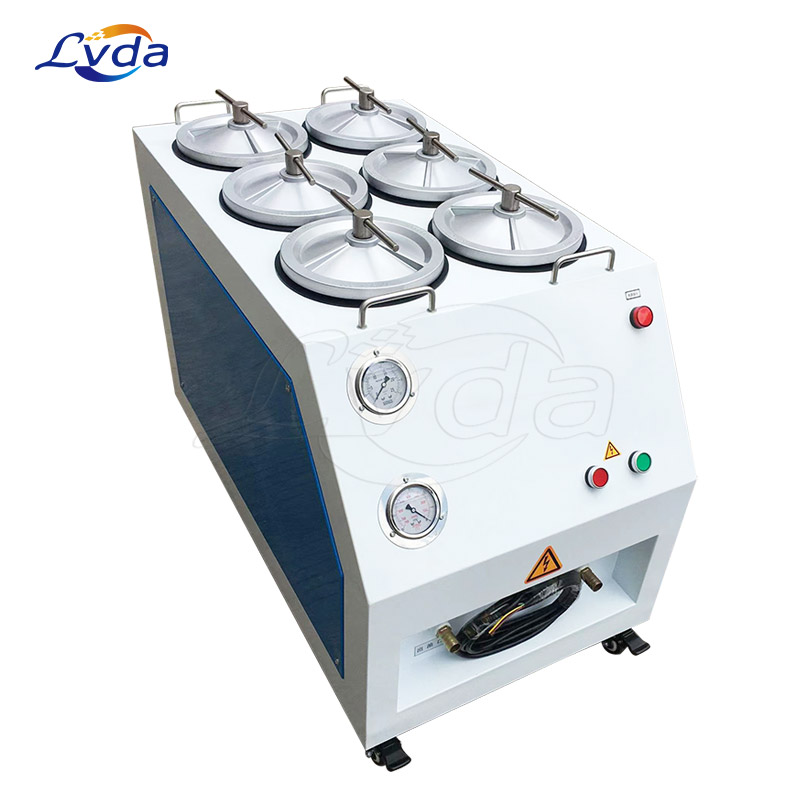

Our portable oil purifier high precision oil purifier machine, also known as oil filter machine, oil filter cart. Its function is to filter and purify the contaminated oil, restore or improve the properties of the oil itself. Including oil cleanliness, water content, air content, acid value, viscosity, flash point, dielectric strength, color, etc., and can effectively remove impurities in the oil to ensure the safe operation of oil equipment.
The hydraulic oil, lubricating oil, and transformer oil used in industrial production will contain many impurities after a period of use, and these impurities will affect the quality of the oil.
The use of an oil purifier can effectively remove various impurities in the oil. Users can also choose different oil purifiers according to the types of impurities.
The oil purifier includes a special gear pump driven by a motor, which has the characteristics of low noise, strong self-priming ability, and stable operation.
The high-pressure pipeline is equipped with an overflow protection device, which can effectively protect the safety of the hydraulic system.
Use thermal relay protection to prevent motor damage caused by motor overload.
The coarse filter at the suction port protects the oil pump and prolongs the service life of the main filter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
The precision filter can be selected according to the different needs of users with different precisions to meet the required requirements.
The oil filter housing adopts a quick-opening structure, and without any tools, the upper cover can be opened quickly and the filter element can be replaced.
The panel is equipped with a pressure gauge, which continuously indicates the operating status of the system and the degree of pollution of the filter element when it is working.
Technical parameter
| Model | AOP-S- 1R-* | AOP-S-2 R-* | AOP-S-3 R-* | AOP-S-4 R-* | AOP-S-5 R-* | AOP-S-6 R-* | AOP-S-7 R-* |
| Rated flow(L/min) | 3 | 6 | 9 | 12 | 15 | 18 | 24 |
| Rated pressure(MPa) | 1.6 |
| Mpa(MPa) | ≤0.25 |
| Coarse filter precision(μm) | 100 |
| Fine filter precision(μm) | NAS1638 3-6 Grade |
| Differential pressure | 0.8Mpa |
| Working temperature(°C) | 5-80 |
| Recommended viscosity(cSt) | 10-180 |
| Voltage(V) | AC380V(Three- phase)、50Hz |
| Motor power(kw) | 0.2 | 0.2 | 0.4 | 0.4 | 0.55 | 0.75 | 0.75 |
| Weight(kg) | 66 | 86 | 90 | 108 | 112 | 120 | 135 |
| Dimensions(mm) | 380x500x680 | 380x500x680 | 600x500x680 | 600x500x680 | 860x500x1000 | 1100x500x1000 | 100x500x1000 |
Features
-High-fficiency electric heating system, automatic control, less power consumption.
-Strong ability of demulsific ation, separating oil and water fficinty.
-Large area three-dimensional flash disillation technology.
-Three stage filtration system (primary flter, secondary filter, fine filter).
-Interlocking protection mechanism.
-Automatic oil level controller.
-Humanized design, easy control for operation and supervision.
-Automatic pressure protect system.
Application
Filtering when refueling hydraulic lubrication system
Bypass filter when hydraulic lubrication system is working
Circulation filtration before the hydraulic lubrication system is put into operation
The oil of the hydraulic lubrication system is not pumped out through the pump filter of the equipment itself
