Product Details

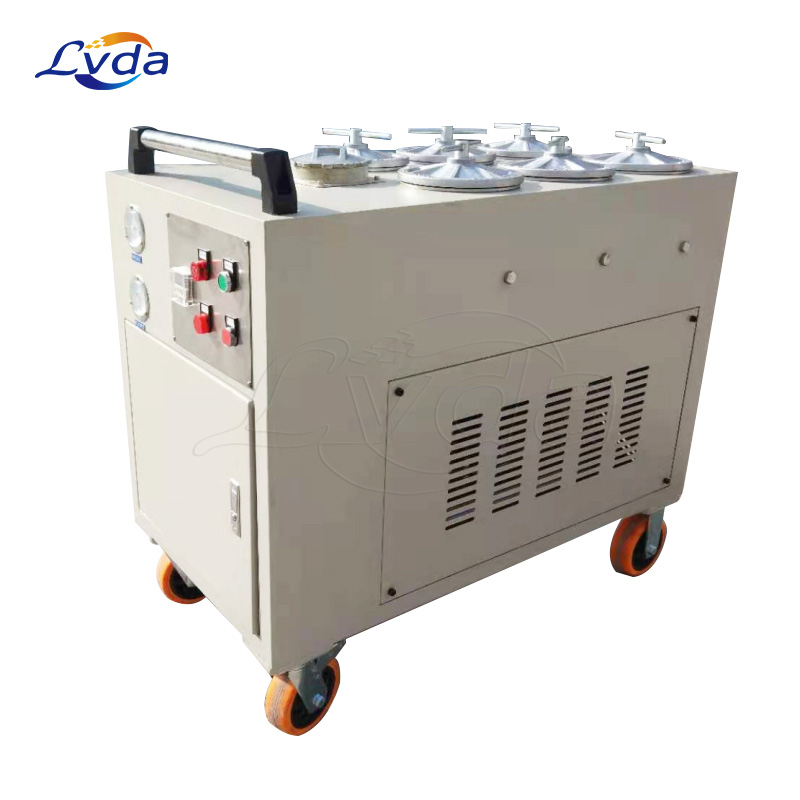

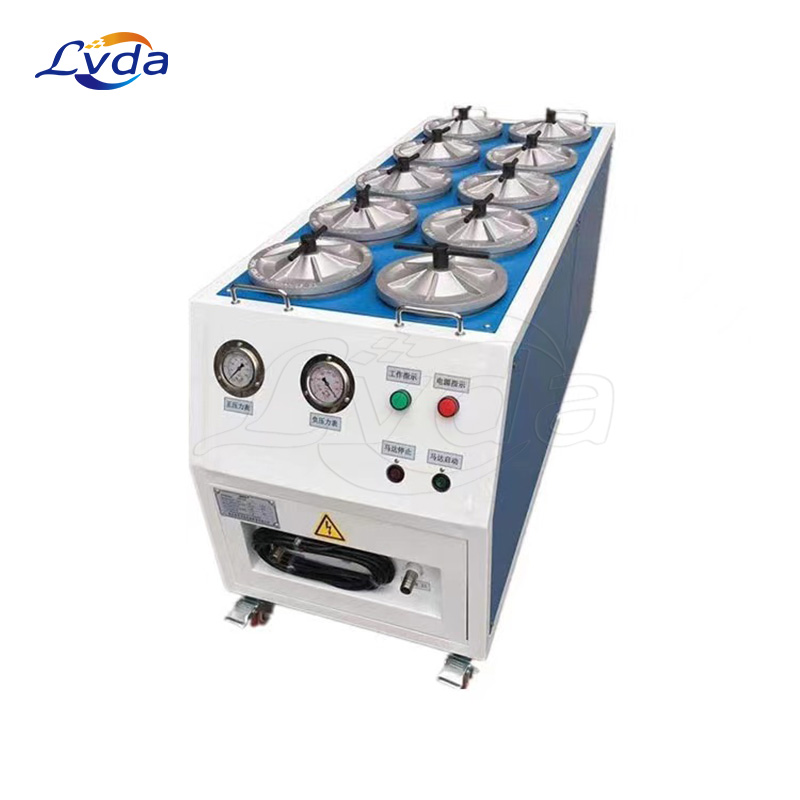

Our high precision oil purifier for solids removal is the oil infusion and purification device, which is developed y our company, has practical design, can move conveniently and maintain simply, with low noise, high adsorption and stable operation.
The pipeline is provided with overflow protection device, can efficiently protect safety of hydraulic pressure system.
It adopts thermal relay protection to prevent motor from damage caused by overloading.
The coarse filter in suction orfice can protect oil pump and increase service life of filter; There are two-stage fine filters in back of the pump, which can make oil rapidly achieve required service condition.
The filter shell adopts quickly open structure, can repaidly open upper cover and replace filter cartridge without using any tools.
The pressure gauge is installed on control panel to continuous indicate operation condition of system and pollution condition of cartridge during working.
Technical parameter
| Model | AOP-S- 1R-* | AOP-S-2 R-* | AOP-S-3 R-* | AOP-S-4 R-* | AOP-S-5 R-* | AOP-S-6 R-* | AOP-S-7 R-* |
| Rated flow(L/min) | 3 | 6 | 9 | 12 | 15 | 18 | 24 |
| Rated pressure(MPa) | 1.6 |
| Mpa(MPa) | ≤0.25 |
| Coarse filter precision(μm) | 100 |
| Fine filter precision(μm) | NAS1638 3-6 Grade |
| Differential pressure | 0.8Mpa |
| Working temperature(°C) | 5-80 |
| Recommended viscosity(cSt) | 10-180 |
| Voltage(V) | AC380V(Three- phase)、50Hz |
| Motor power(kw) | 0.2 | 0.2 | 0.4 | 0.4 | 0.55 | 0.75 | 0.75 |
| Weight(kg) | 66 | 86 | 90 | 108 | 112 | 120 | 135 |
| Dimensions(mm) | 380x500x680 | 380x500x680 | 600x500x680 | 600x500x680 | 860x500x1000 | 1100x500x1000 | 100x500x1000 |
Features
-High-fficiency electric heating system, automatic control, less power consumption.
-Strong ability of demulsific ation, separating oil and water fficinty.
-Large area three-dimensional flash disillation technology.
-Three stage filtration system (primary flter, secondary filter, fine filter).
-Interlocking protection mechanism.
-Automatic oil level controller.
-Humanized design, easy control for operation and supervision.
-Automatic pressure protect system.
Applications
*The oil infusion and purification for hydraulic and lubricant system
*As a by-pass filter in hydraulic and lubricant system during working
*Cycle filtering before operation of hydraulic and lubricant system
*The oil in hydraulic and lubricant system will not be discharged from filter pump
