Product Details

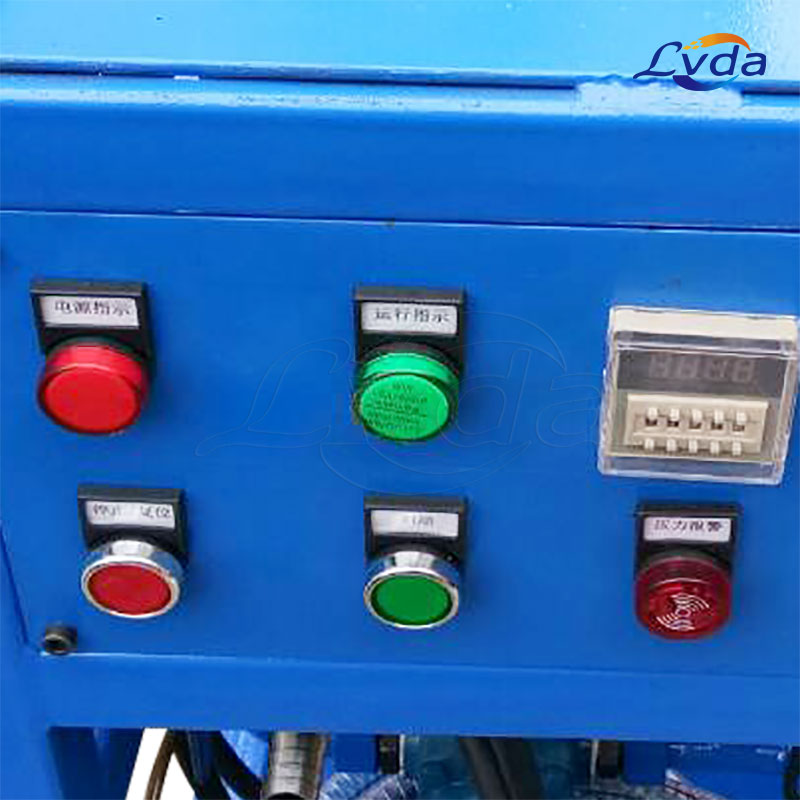

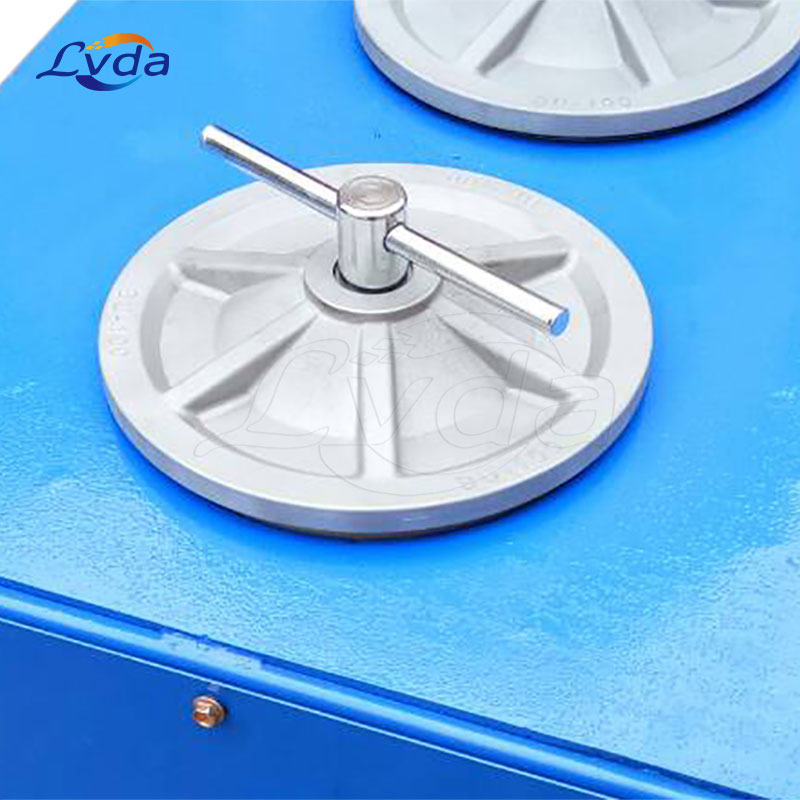

During the operation of hydraulic oil, mechanical oil, cooling oil and other lubricating oils, moisture, gas, volatile substances and impurities are inevitably mixed into the lubricating oil due to various reasons, which accelerates the oxidation of the oil and promotes foam, fouling and sludge. The formation of oil reduces the lubrication, heat dissipation, dispersion, cooling and other properties of oil. At the meantime, it causes corrosion and wear of metal parts, which affects the normal operation of hydraulic system, power system and lubrication system. This series of high precision oil purifying and filtrating equipment can quickly remove moisture, gas, impurities and volatiles from different oils. Improve oil quality, restore lubricating oil viscosity, flash point and performance. Ensure the normal operation of hydraulic system, power system and lubrication system. Our high precision oil purifying and filtrating equipmentconsists of several parallel pipes of precision oil filters, and is equipped with a pump motor, vacuum gauge, pressure gauge, suction filter, electromagnetic switch, iron frame, etc. to form a filtering system, and is equipped with wheels for easy mobile use , suitable for centralized filtration or all kinds of mechanical rotation filtration of the same oil, the filtration process is simple, the effect is nice, the price is affordable, and the scope is wide.
Technical parameter
| Model | AOP-S- 1R-* | AOP-S-2 R-* | AOP-S-3 R-* | AOP-S-4 R-* | AOP-S-5 R-* | AOP-S-6 R-* | AOP-S-7 R-* |
| Rated flow(L/min) | 3 | 6 | 9 | 12 | 15 | 18 | 24 |
| Rated pressure(MPa) | 1.6 |
| Mpa(MPa) | ≤0.25 |
| Coarse filter precision(μm) | 100 |
| Fine filter precision(μm) | NAS1638 3-6 Grade |
| Differential pressure | 0.8Mpa |
| Working temperature(°C) | 5-80 |
| Recommended viscosity(cSt) | 10-180 |
| Voltage(V) | AC380V(Three- phase)、50Hz |
| Motor power(kw) | 0.2 | 0.2 | 0.4 | 0.4 | 0.55 | 0.75 | 0.75 |
| Weight(kg) | 66 | 86 | 90 | 108 | 112 | 120 | 135 |
| Dimensions(mm) | 380x500x680 | 380x500x680 | 600x500x680 | 600x500x680 | 860x500x1000 | 1100x500x1000 | 100x500x1000 |
Features
-High-fficiency electric heating system, automatic control, less power consumption.
-Strong ability of demulsific ation, separating oil and water fficinty.
-Large area three-dimensional flash disillation technology.
-Interlocking protection mechanism.
-Automatic oil level controller.
-Humanized design, easy control for operation and supervision.
-Automatic pressure protect system.
Applications
Lubricant oil filtration
Hydraulic lubrication system fltration during refueling
Bypass filration during operation of hydraulic lubrication system
Comprehensively improve the cleanliness of hydraulic lubrication system
