Product Details
High Precision Hydraulic Oil Filtration Plant is an optional equipment for processing hydraulic oils, machinery oil, compressor oil, refrigerator oil, and so on.
AOP-S series ultra-precision oil purifier can effectively remove water, particles and other contaminants from oil.
After processing, the oil technical parameters and properties are improved, prolonging oil service life and ensuring safety operation of industrial equipment.
Technical parameter
| Model | AOP-S- 1R-* | AOP-S-2 R-* | AOP-S-3 R-* | AOP-S-4 R-* | AOP-S-5 R-* | AOP-S-6 R-* | AOP-S-7 R-* |
| Rated flow(L/min) | 3 | 6 | 9 | 12 | 15 | 18 | 24 |
| Rated pressure(MPa) | 1.6 |
| Mpa(MPa) | ≤0.25 |
| Coarse filter precision(μm) | 100 |
| Fine filter precision(μm) | NAS1638 3-6 Grade |
| Differential pressure | 0.8Mpa |
| Working temperature(°C) | 5-80 |
| Recommended viscosity(cSt) | 10-180 |
| Voltage(V) | AC380V(Three- phase)、50Hz |
| Motor power(kw) | 0.2 | 0.2 | 0.4 | 0.4 | 0.55 | 0.75 | 0.75 |
| Weight(kg) | 66 | 86 | 90 | 108 | 112 | 120 | 135 |
| Dimensions(mm) | 380x500x680 | 380x500x680 | 600x500x680 | 600x500x680 | 860x500x1000 | 1100x500x1000 | 100x500x1000 |
Features
AOP-S series oil purifier adopts refined outer housing covering all components to protect the equipment from external pollution, especially suitable for occasions with high environmental requirements.
For AOP-S series ultra-precision oil purifiers, a variety of models are available, from 1 R type to 9 R type. Equipped with leakage and overload protection shutdown device to protect motor. Equipped with over pressure protection device to protect the hydraulic system. Equpped with oil pumping and fitration

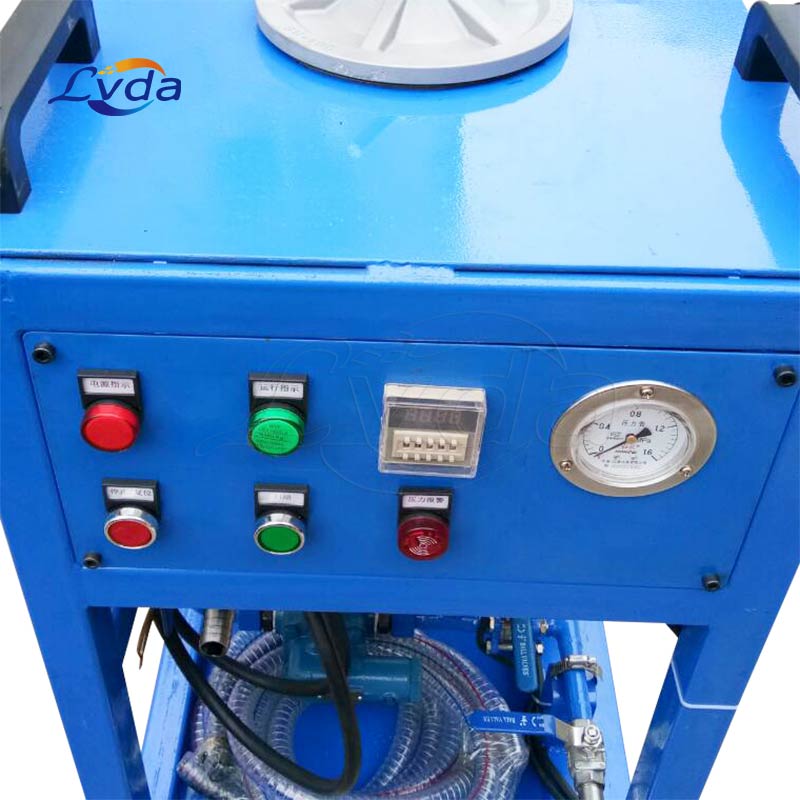

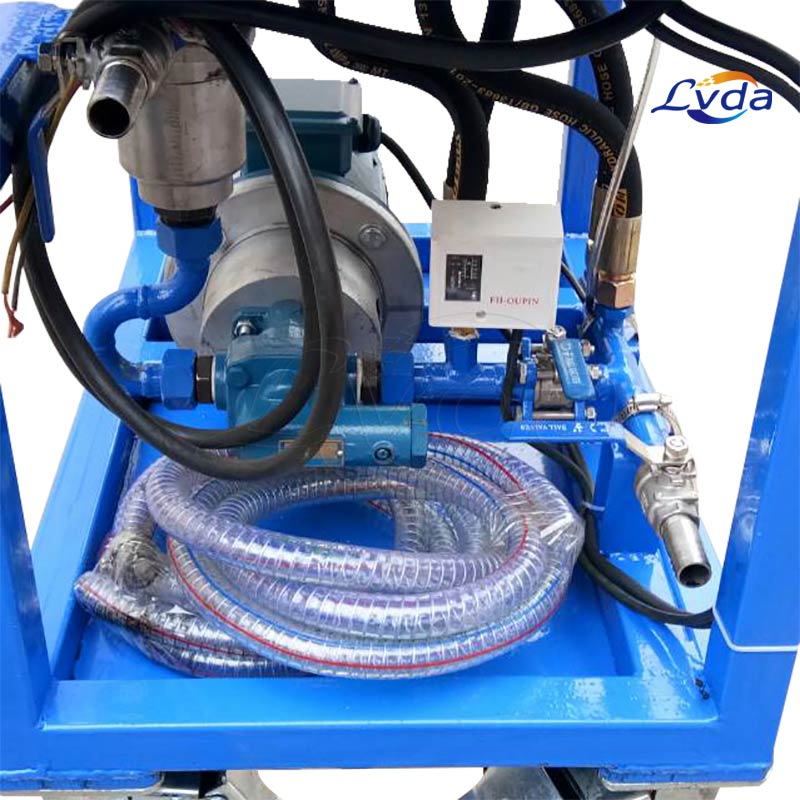

conversion device to easily pump oil and filter. Equipped with filter element block alarm signal and shutdown device. It is composed of independent oil pump, vacuum gauge, pressure gauge and multiple filter catridges in parallel. The primary coarse flter at the suction port
protects the oil pump and prolongs the service life of the main filter. It can continuously purify the oil and remove the polluted particles and water in the oil. The filtering accuracy can reach NAS1638-3.
Applications
●Hydraulic lubrication system fltration during refueling
●Bypass filration during operation of hydraulic lubrication system
●Cyclic filtration of hydraulic lubrication system before operation
●Comprehensively improve the cleanliness of hydraulic lubrication system
