High impurity pushcart filter

Lubricant Oil Purifier

Model Number:

Rated pressure(MPa) : 0.6

Coarse filter precision(μm) : 180、120、80

Differential pressure : 0.2 MPa

Recommended viscosity(cSt) : 10-160

Voltage(V) : AC 380V(Three - phase)、50Hz

Product Details

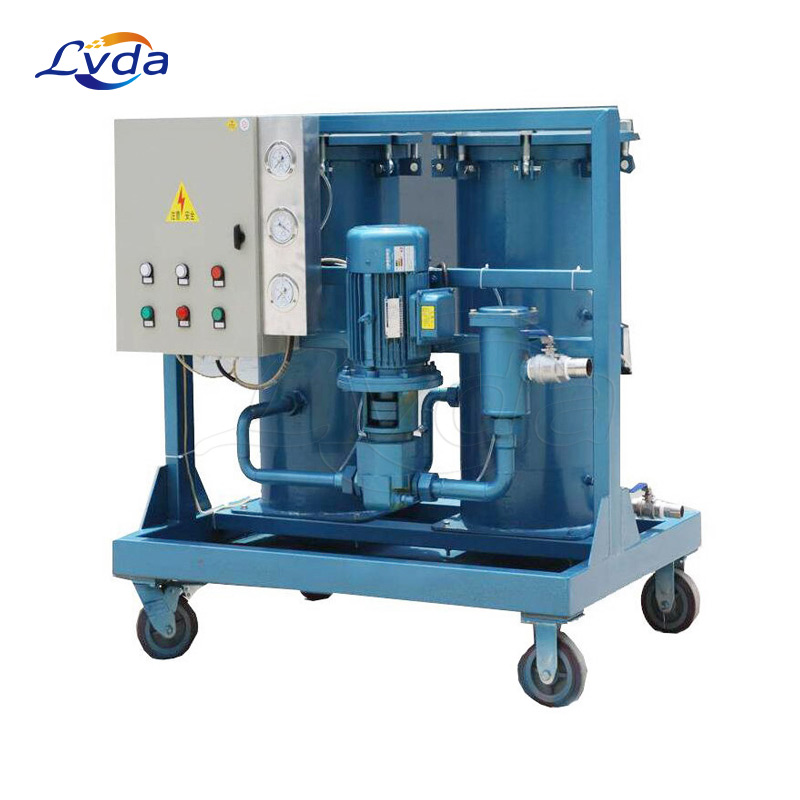

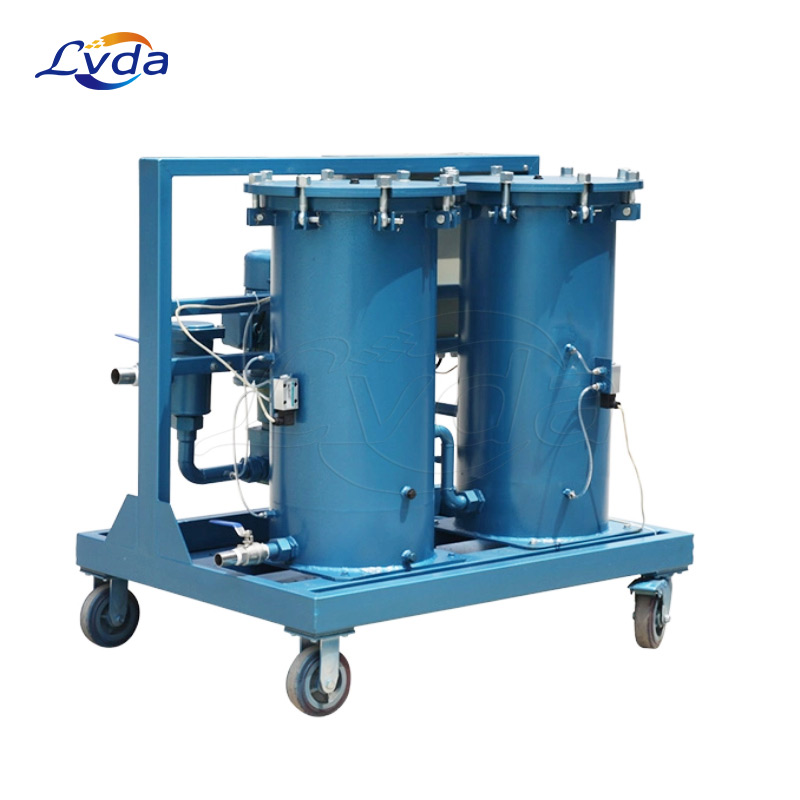

High impurity pushcart filter is a mechanical device that filters solid impurities and water in oil and improves oil performance. Use pressure filtration or vacuum evaporation-pressure filtration to remove solid impurities and moisture in impure oil. The oil purifier truck is mostly applied to raise the insulation performance of electrical oil and the purity of lubricant oils and waste oils.

High impurity pushcart filter can treat the impurities at very high level, so, it's an ideal device for remove high rates of particles in the fluid, especially in food oil processing industry.

Technical parameter

Model	AOP-G32 -/*	AOP-G50 -/*	AOP-G100 -/*	AOP-G150 -/*	AOP- -G200 -/*
Rated flow(L/min)	32	50	100	150	200
Rated pressure(MPa)	0.6
Mpa(MPa)	≤0.1
Coarse filter precision(μm)	180、120、 80
Clarify filter precision(μm)	5、10、20
Fine filter precision(μm)	3
Differential pressure	0.2MPa
Recommended viscosity(cSt)	10-160
Voltage(V)	AC 380V(Three - phase)、50Hz
Motor power(kw)	0.75	1.1	2.2	3.0	5.5
Weight(kg)	220	280	360	480	600
Dimensions(mm)	900x600x1080	1000x600x1080	1200x880x1280	1200x880x1520	1350x900x1870
