Product Details
Box type explosion-proof movable filter cart

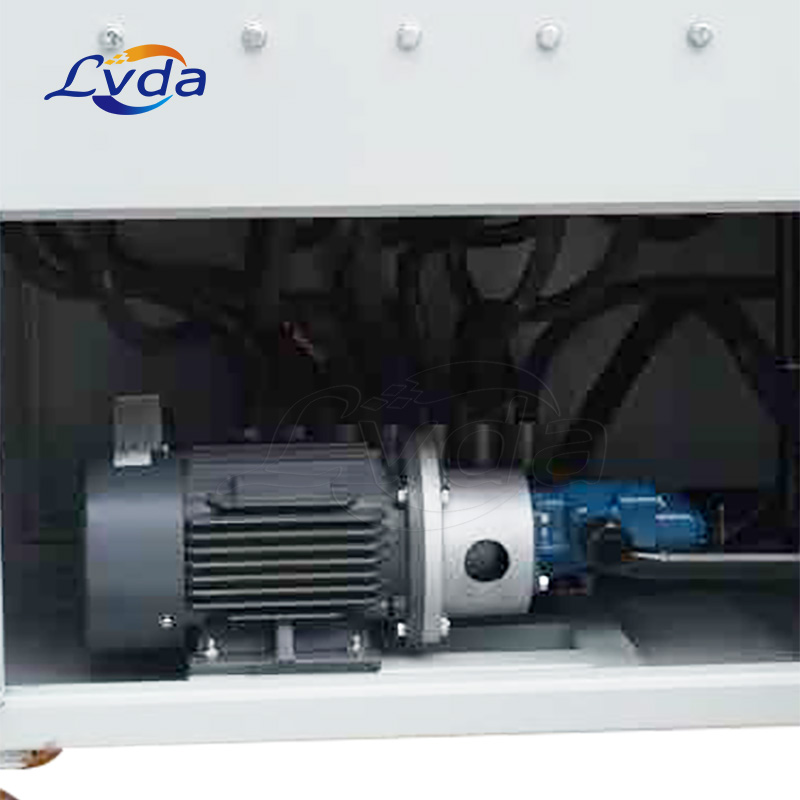

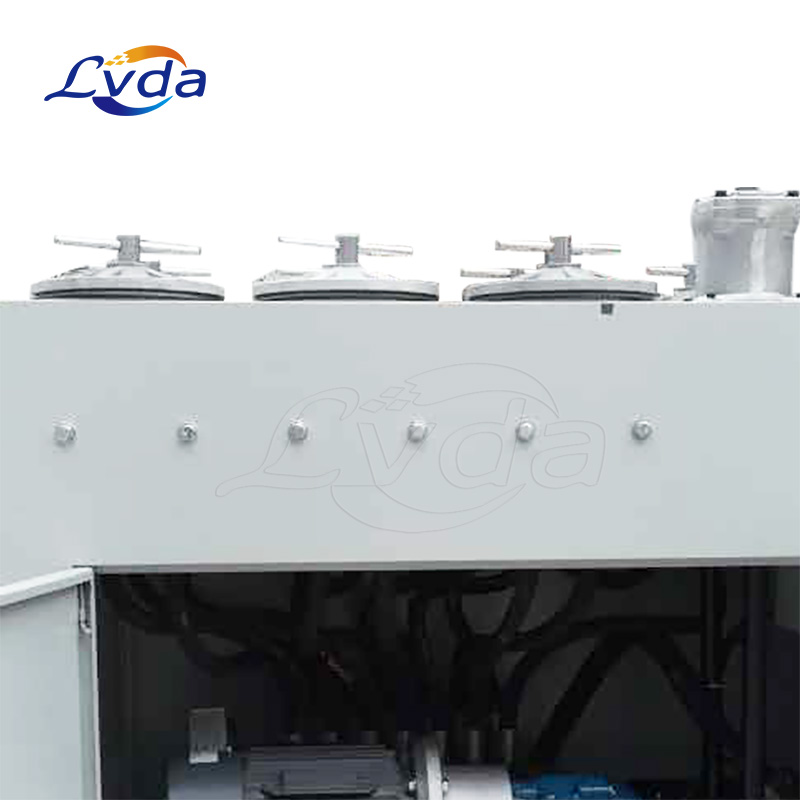

The box type explosion-proof movable filter cart is equipped with special gear pump driven by motor features low noise,self priming,smooth running. Excess flow protection device installed to ensure the safety of systems. And it's using thermal relay to avoid the damage caused by motor over load.The coarse filter can not only protect the pump but also prolong the service life of main filter. The unit has a two-stage fine filters increase the dirt-holding capacity to achieve low level of contamination. It permits the use of different filter ratings of elements in each stage,to meet different requirements.The cover can be opened swiftly with out any tools, then the elements can be replaced conveniently.The pressure gauge can continuously indicate conditions of running system and contamination levels.
Technical parameter
| Model |
A0P-B32-*/** |
AOP- B40-*/** |
AOP- B50-*/** |
AOP-B63-*/** |
AOP-B100-*/** |
| Rated flow(L/min) |
32
|
40 |
50 |
63 |
100 |
| Rated pressure(MPa) |
0.6 |
| Mpa(MPa) |
≤0.02 |
| Coarse filter precision(μm) |
100 |
| Grade 1 filter precision( μ m) |
3、5、10、20 |
| Grade 2 filter precision( μ m) |
3、S-W |
| Differential pressure |
0.2Mpa |
| Working temperature(°C) |
5-80 |
| Recommended viscosity(cSt) |
10-160 |
| Voltage(V) |
AC 380V(Three- phase)、50Hz |
| Motor power(kw) |
0.75 |
1.1 |
1.1 |
1.1 |
2.2 |
| Weight(kg) |
135 |
145 |
150 |
156 |
182 |
Dimensions(mm)
|
950 x 560 x 900 |
950 x 560 x 900 |
950 x 560 x 900 |
950 x 560 x 900 |
1100 x 660 x 1000 |
Features
1.We use imported depthype filter material,tapered pore structure,gradient filter,can intercept granule furthest, to extend the service life.
2.We use hightech support materials.Hightech support materials can not only play the role of support filter, material and avoiding compressive deformation,but
also protect the materials from being damaged during processing.
3.We also use the special spiral wrapping belts,so thar filter layers can be connected firmly.Stationary pleated distance ensures the uniform flow when fluid
penetrating the filter layer.Not only improving pressure drop,but also extending service life.
Applications
To filter new oil while filling in hydraulic and lubrication system
Circulate and filter oil off-line on systems with insufficient filtering capacity
Circulate and filter oil during start-up, when contamination is heaviest
To be used in hydraulic and lubrication system, to improve the cleanliness of systems.
