Product Details
Filter oil vehicle series high precision filter cart explosion-proof box type movable filter cart
Filter oil vehicle series high precision filter cart explosion-proof box type movable filter cart is an amazing product from our company. We supply nice filration elements for our clients around the world, so you can just rest assured to choose our filter oil vehicle series high precision filter cart explosion-proof box type movable filter cart. This machine can choose oil filters of different volumes as oil holding tools according to customers' requirements to facilitate oil filtration. And it's a good choice for lubrication system of hydraulic press on the production site. It contains an anti-explosive outer housing which can be made from carbon stell or stainless steel or other alluminum alloy materials. The machine is china made good products, which can be used for many years in all types of oil filtration services on product sites, especiall treating oils from hydraulic system in factories to remove all kinds of impurities and small useless particles, to make sure that your lubricating system is in a good situation, less downtime, low maintaince cost, and less care.
Technical parameter
| Model | A0P-B32-*/** | AOP- B40-*/** | AOP- B50-*/** | AOP-B63-*/** | AOP-B100-*/** |
| Rated flow(L/min) | 32
| 40 | 50 | 63 | 100 |
| Rated pressure(MPa) | 0.6 |
| Mpa(MPa) | ≤0.02 |
| Coarse filter precision(μm) | 100 |
| Grade 1 filter precision( μ m) | 3、5、10、20 |
| Grade 2 filter precision( μ m) | 3、S-W |
| Differential pressure | 0.2Mpa |
| Working temperature(°C) | 5-80 |
| Recommended viscosity(cSt) | 10-160 |
| Voltage(V) | AC 380V(Three- phase)、50Hz |
| Motor power(kw) | 0.75 | 1.1 | 1.1 | 1.1 | 2.2 |
| Weight(kg) | 135 | 145 | 150 | 156 | 182 |
Dimensions(mm)
| 950 x 560 x 900 | 950 x 560 x 900 | 950 x 560 x 900 | 950 x 560 x 900 | 1100 x 660 x 1000 |
Features
Special gear pump driven by motor features low noise, self-priming, smooth running
Excess flow protection device installed to ensure the safety of systems
Using thermal relay to avoid the damage caused by motor over load
The coarse filter can not only protect the pump but also extend the life of the main filter
Two-stage fine filters increase the dirt-holding capacity to achieve low levels of contamination
It allows the use of different filter ratings of items in each stage, to meet different needs
The cover can be opened quickly with out any tools, then the items can be replaced conveniently.

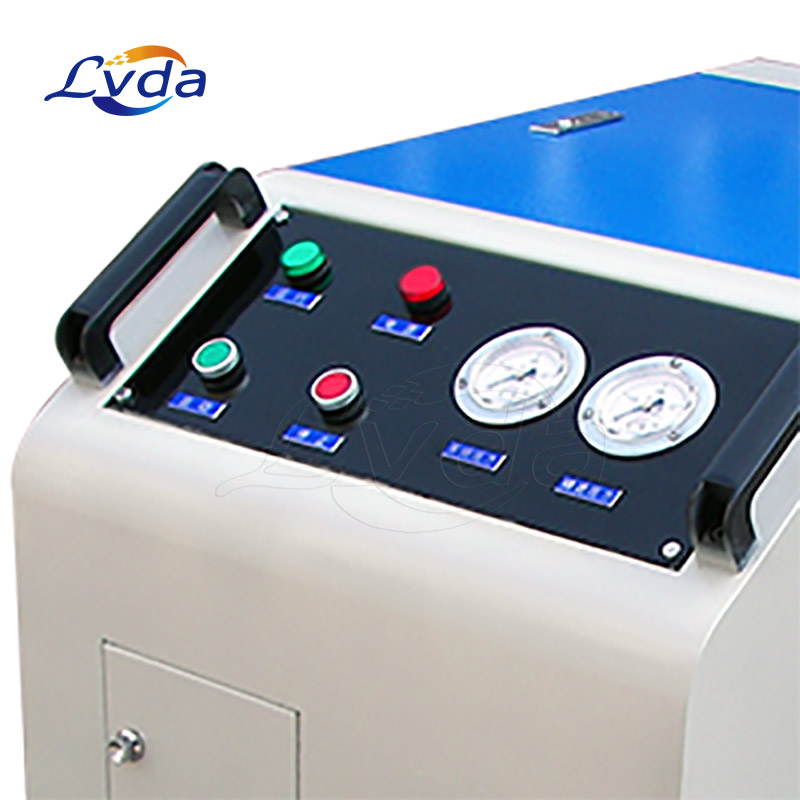

The pressure gauge can continuously show conditions of running system and pollution levels.
Supply machine oil filter & engine oil filter & lubrication system filter element
Supply return oil filter & suction oil filter & pipeline oil filter & pump oil filter
Supply air compressor filter & pp filter & actived carbon filter & filter cart
Applications
To filter new oil while filling in hydraulic and lubrication system
Circulate and filter oil off-line on systems with insufficient filtering capacity
Circulate and filter oil during start-up, when contamination is heaviest
To be used in hydraulic and lubrication system, to improve the cleanliness of systems.
