Tote filter cart oil purifier
Our tote filter cart features a durable enclosure and impact-resistant panel. They can provide excellent hydraulic and lubricating systems protection under the most arduous conditions.
This tote filter cart oil purifier is also equipped with a lightweight construction,which makes the our portable tote filter cart oil purifier an ideal solution in hydraulic & lubricating fluid conditions that require filtration requirements.
Two stage filtration offers the advantages of removing both particulate and water contamination.

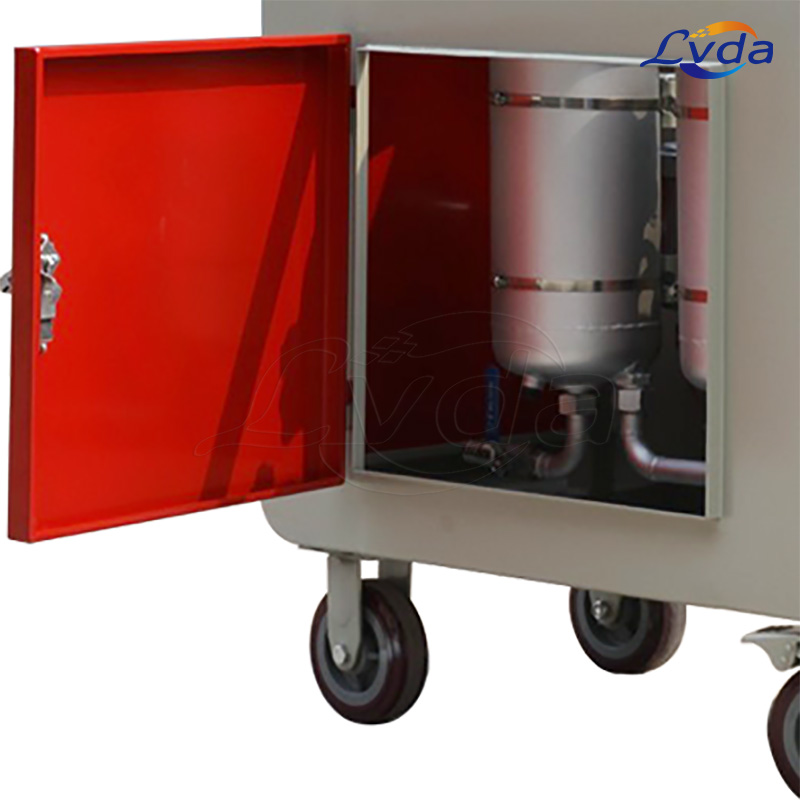

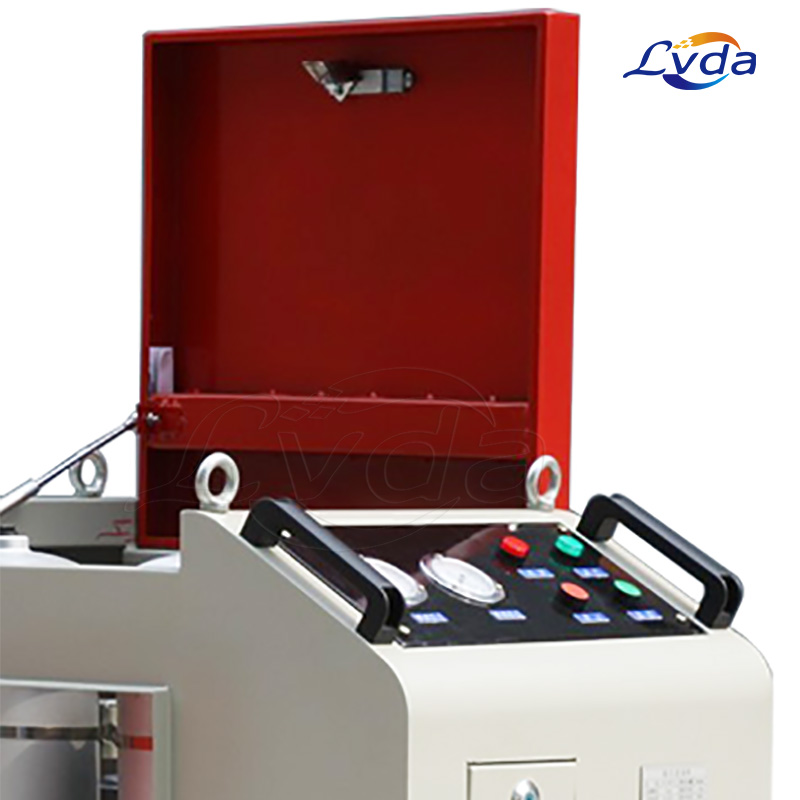

This tote filter cart oil purifier housing adopts a quick open structure, you can open the upper covers and replace the filter cartridge without using any tools.
With this tote filter cart oil filtration unit, the end-users can customize set points to suit specific applications for their systems such as, built in tank or anti-explosion enclosure. All our products are one hundred percent tailored upon request.
Technical parameter
Model | A0P-B32 -*/** | AOP-B40 -*/** | AOP-B50 -*/** | AOP-B63 -*/** | AOP-B100 -*/** |
Rated flow(L/min) | 32 | 40 | 50 | 63 | 100 |
Rated pressure(MPa) | 0.6 | ||||
Mpa(MPa) | ≤0.02 | ||||
Coarse filter precision(μm) | 100 | ||||
Grade 1 filter precision( μ m) | 3、5、10、20 | ||||
Grade 2 filter precision( μ m) | 3、S-W | ||||
Differential pressure | 0.2Mpa | ||||
Working temperature(°C) | 5-80 | ||||
Recommended viscosity(cSt) | 10-160 | ||||
Voltage(V) | AC 380V(Three- phase)、50Hz | ||||
Motor power(kw) | 0.75 | 1.1 | 1.1 | 1.1 | 2.2 |
Weight(kg) | 135 | 145 | 150 | 156 | 182 |
Dimensions(mm) | 950 x 560 x 900 | 950 x 560 x 900 | 950 x 560 x 900 | 950 x 560 x 900 | 1100 x 660 x 1000 |
Features
*Tough and lightweight
*Two- stage filtering to reduce oil contamination
*Anti-explosion or built-in tank options
*Extended oil exchange intervals
*One hundred percent tailored service
Applications
Tote filter cart oil purifier can be used to filtrate and purify oils, such as engine oil, hydraulic oil, lubricating oil, transformer oil, turbine oil, gear oil, rail oil, cutting oil, quenching oil, stamping oil, anti-rust oil, spark oil, etc.
