Hydraulic lubrication system oiling box-type mobile oil purifier unit
Hydraulic lubrication system oiling box-type mobile oil purifier unit
Hydraulic lubrication system oiling box-type mobile oil purifier unit

Hydraulic lubrication system oiling box-type mobile oil purifier unit

Lubricant Oil Purifier

Model Number:

Rated pressure(MPa) : 0.6

Coarse filter precision(μm) : 100

Differential pressure : 0.2Mpa

Working temperature(°C) : 5-80

Recommended viscosity(cSt) : 10-160

Get Quotation

Product Details

Hydraulic lubrication system oiling box-type mobile oil purifier unit

This hydraulic lubrication system oiling box-type mobile oil purifier unit consist of vacuum can,vacuum pump,Condensation tank, liquid tank and Air supply system.

This hydraulic lubrication system oiling box-type mobile oil purifier unit adopts three grades fltration,pre- suction oil fiter used for protect the oil pump and longer service life of the filter elements inside of the machine main body.

Elements media use the gradient hole fberglass,can fiter dfferent sizes and pore particals in the oil,and increased the service life of the filters.

Technical parameter

Model

A0P-B32-*/**

AOP-B40-*/**

AOP-B50-*/**

AOP-B63-*/**

AOP-B100-*/**

Rated flow(L/min)32
405063100
Rated pressure(MPa)0.6
Mpa(MPa)≤0.02
Coarse filter precision(μm)100
Grade 1 filter precision( μ m)3、5、10、20
Grade 2 filter precision( μ m)3、S-W
Differential pressure0.2Mpa
Working temperature(°C)5-80
Recommended viscosity(cSt)10-160
Voltage(V)AC 380V(Three- phase)、50Hz
Motor power(kw)0.751.11.11.12.2
Weight(kg)135145150156182
Dimensions(mm)
950 x 560 x 900950 x 560 x 900950 x 560 x 900950 x 560 x 9001100 x 660 x 1000

Feartures

Pre-filtration, fine filtration, double fltration area, long service life, and optional dewatering flter.

Hydraulic lubrication system oiling box-type mobile oil purifier unit adopts stepwise stepwise heating, and the surface heat load is less than 1.0W/cm2, which will not cause oil deterioration due to oil overheating.

High quality wheels, bearings, smooth running, no noise.

The magnetic starter is equipped with thermal relay protection to protect the motor and is durable.

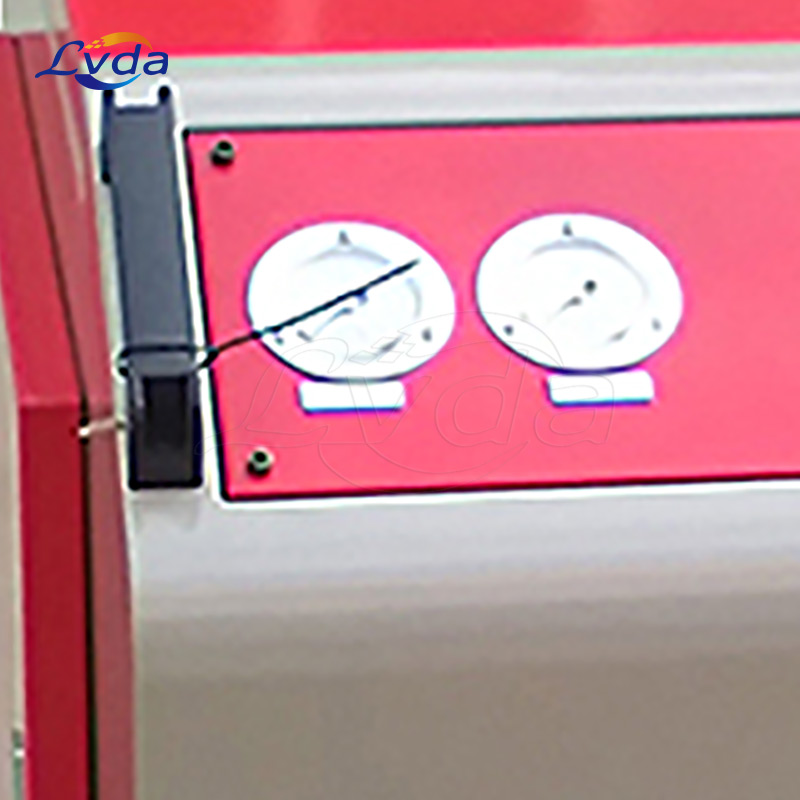

Designing with a pressure indicatorindicate the hydraulic system pressure and change filter elements inside in time.

Applications

Used for purifiying and filtering Insulating oil,Turbine oil,Transformer oil,Lubricating oil,Compressor oil,etc..
