Product Details
AOP-B series box type movable oil purifier
AOP-B series box type movable oil purifier is often used for filtration of hydraulic lubricating system refueling, bypass filtration when wave pressure lubricating system is working, and circulating filtration before the hydraulic lubricating system of the oil purifier is put into operation.
AOP-B series box type movable oil purifier accesses the hydraulic lubrication system to comprehensively improve the cleanliness of the system.
The AOP-B series box type movable oil purifier uses a refined shell to package all components to protect the equipment from external pollution, especially suitable for the stage with high requirements for the use environment.
The AOP-B series box type movable oil purifier series includes a special gear pump driven by a motor, which has the characteristics of low noise, strong self-priming ability and stable operation.
The high-pressure pipeline is equipped with an overflow protection device, which can effectively protect the safety of the hydraulic system.
Adopt thermal relay protection to prevent motor damage caused by motor overload.
The oil suction port coarse filter protects the oil pump and prolongs the service life of the main filter.
There is a two-stage fine filter behind the pump, so that the oil can quickly reach a high degree of cleanliness.
The fine filter can choose different precision according to the different needs of users to meet the required requirements.
The oil filter housing adopts a quick-opening structure, which can quickly and quickly open the upper cover and replace the filter element without any tools.

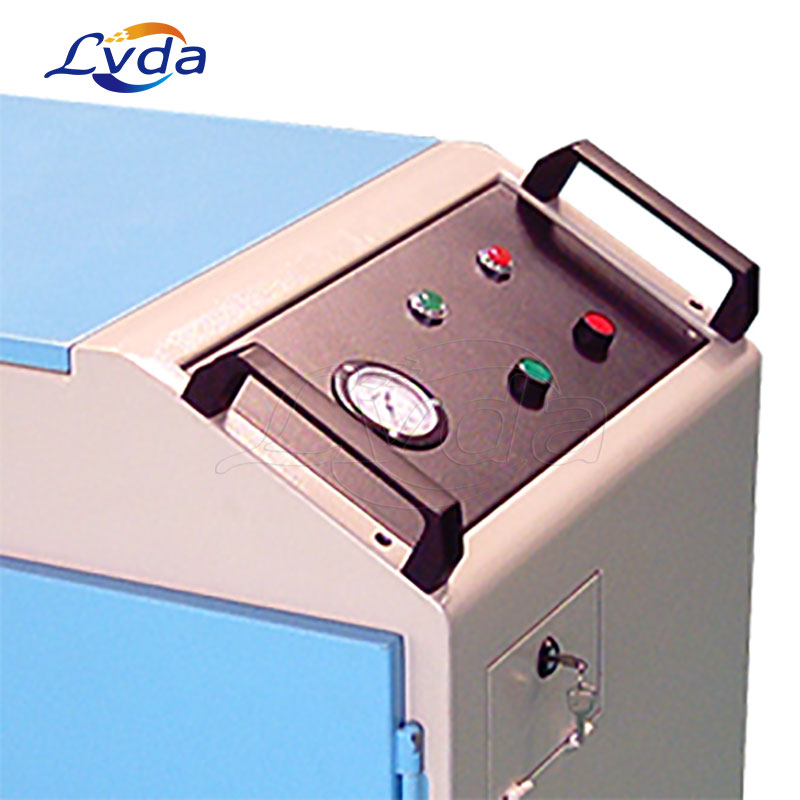

The panel is equipped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the filter element during operation.
Technical parameter
| Model | A0P-B32 -*/** | AOP-B40 -*/** | AOP-B50 -*/** | AOP-B63 -*/** | AOP-B100 -*/** |
| Rated flow(L/min) | 32
| 40 | 50 | 63 | 100 |
| Rated pressure(MPa) | 0.6 |
| Mpa(MPa) | ≤0.02 |
| Coarse filter precision(μm) | 100 |
| Grade 1 filter precision( μ m) | 3、5、10、20 |
| Grade 2 filter precision( μ m) | 3、S-W |
| Differential pressure | 0.2Mpa |
| Working temperature(°C) | 5-80 |
| Recommended viscosity(cSt) | 10-160 |
| Voltage(V) | AC 380V(Three- phase)、50Hz |
| Motor power(kw) | 0.75 | 1.1 | 1.1 | 1.1 | 2.2 |
| Weight(kg) | 135 | 145 | 150 | 156 | 182 |
Dimensions(mm)
| 950 x 560 x 900 | 950 x 560 x 900 | 950 x 560 x 900 | 950 x 560 x 900 | 1100 x 660 x 1000 |
Features
AOP-B series box type portable oil purifier adopts special housing to encapsulate al components and protects the equipment from external contamination.
This oil purifier includes a special gear pump driven by a motor. It has the characteristics of low noise, strong self-priming abilty, and stable operation.
The high-pressure pipeline is equipped with an overflow protection device, which can effectively protect the safety of the hydraulic system.
Use thermal relay protection to prevent motor damage caused by motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main filter.
Different precision for the fine filter can be chosen according to the dfferent needs of users to achieve the required results.
The oil flter housing adopts a quick- -opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.
The panel is equipped with a pressure gauge, which continuously indicates the operating status of the system and the degree of pollution of the flter element during work.
Applications
●Hydraulic lubrication system fltration during refueling( Bypass fltration during hydraulic lubrication system operation
●Cyclic filtration of hydraulic lubrication system before operation
●Comprehensively improve the cleanliness of hydraulic lubrication system
