Product Details
Hydraulic oil mobile compact filter purify devices
The hydraulic oil mobile compact filter purify devices are the ideal filtration system for the recirculating or transferring of fluids in and out of reservoirs and holding tanks. It is ideal for high viscosity lubrication and hydraulic oils.
The hydraulic oil mobile compact filter purify devices are the perfect filtration unit to use when high levels of particulate contamination are present. The high surface area yields extended service life of the filter elements reducing downtime and filter change-outs.
The hydraulic oil mobile compact filter purify devices are manufactured with china made stainless steel. It has large non-shred rubber wheels with swivel/locking casters for ease of portability. All tubing is 304 Stainless Steel for a large compatibility range.
Parameters
| Model |
AOP-B25
-*/** |
A0P-B32
-*/** |
A0P-B40
-*/** |
A0P-B50
-*/** |
A0P-B63
-*/** |
A0P-B100
-*/** |
A0P-B150
-*/** |
| Rated flow(L /min) |
25 |
32 |
40 |
50 |
63 |
100 |
150 |
| Rated pressure(MPa) |
0.6 |
| Mpa(MPa) |
≤0.02 |
| Coarse filter precision(μm) |
100 |
| Grade 1 filter rating(μm) |
10、20、40 |
| Grade 2 filter rating(μm) |
3、5、 10、S-W |
| Differential pressure |
0.2Mpa |
| Working temperature(°C) |
5-80 |
Recommended viscosity(cSt) |
10- 160 |
Voltage(V) |
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.55 |
0.75 |
1.1 |
1.1 |
1.5
|
2.2
|
3.0
|
| Weight(kg) |
46
|
78
|
90
|
96
|
102
|
120
|
160
|
| Dimensions(mm) |
520x350 x950
|
520 x350x950
|
720x 680 x 1020
|
720 x<680 x 1020
|
720 x 680x 1020
|
720x 750x 1020
|
720x750x 122
|

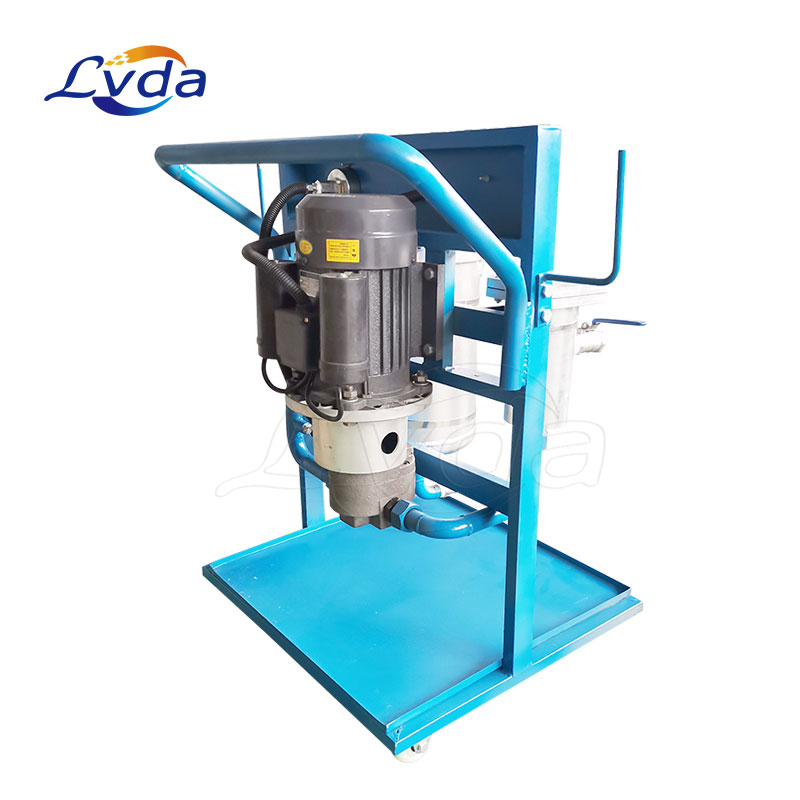

This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.

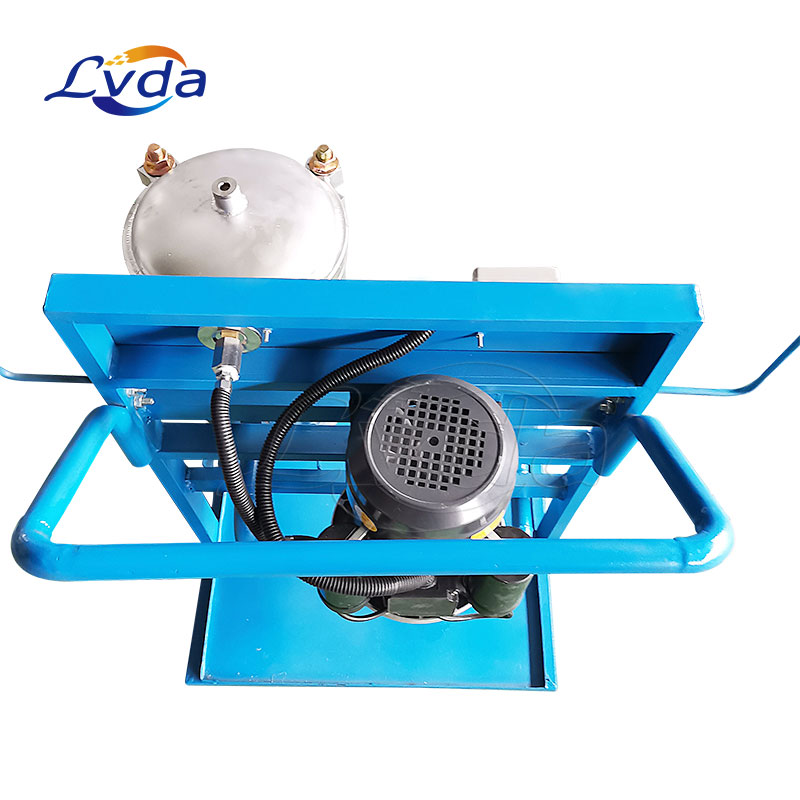

The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.
The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
Clean hydraulic oil in a few minutes
Absolute depth filter with a high degree of separation > 99.5% with the latest technology
Handy filter device for every service vehicle, with a low weight of 18.9 kg
Prepare hydraulic oil on site directly on the machine
Suitable for mineral and bio oils
Enormous filter performance, for a barrel of hydraulic oil max. 1 hour depending on the cleanliness class
Suction of used oil: Possibility to suck off used oil by switching without filter
Filter monitoring: Information about the contamination indicator
3-stage filter system
Pre-filter: no suction of foreign bodies
Outlet: for suction and filling carriage
Storage area: for exchanged filters etc.
Drainage: collection tray – grid removable
Applications
ACC – WCC Gear Boxes
Windturbine Gear Boxes
Power Generation
Combustion Turbine Lube
Coal Mill Gear Boxes
Conveyor Gear Boxes
Scrubber Equipment Gear Boxes
Boiler Feed Pump Lube
EHC Control
Light Industrial
Automotive transfer line Hydraulic Oil
Oil Reclamation
