Product Details
Efficient mobile filter device hydraulic and lubrication systems
The Efficient mobile filter device hydraulic and lubrication systems is was designed to filter fluids with a viscosity of 50 – 2,000 cSt. It’s ideal for filtering new hydraulic fluids during transfer and replenishment, flushing fluids already in service, removing particulate and water contamination, and conditioning bulk oil before use.
The Handheld Filtration System is constructed with strong, lightweight aluminum support legs and an ergonomic style handle. Its total dry weight is approximately 40 pounds. It is available with rated microglass and water-absorbing filter elements. It also includes oil sampling port on the outlet connection. This will allow you to meet your target ISO cleanliness codes and prolong the life of your equipment and fluids.
The movable hydraulic oil filtration compact system unit comes standard with a 210 Volt, 70 Hz motor, and is also available in other electrical configurations to meet your needs.
Our movable hydraulic oil filtration compact system unit is totally customazible according to your choice.
Parameters
| Model |
AOP-B25
-*/** |
A0P-B32
-*/** |
A0P-B40
-*/** |
A0P-B50
-*/** |
A0P-B63
-*/** |
A0P-B100
-*/** |
A0P-B150
-*/** |
| Rated flow(L /min) |
25 |
32 |
40 |
50 |
63 |
100 |
150 |
| Rated pressure(MPa) |
0.6 |
| Mpa(MPa) |
≤0.02 |
| Coarse filter precision(μm) |
100 |
| Grade 1 filter rating(μm) |
10、20、40 |
| Grade 2 filter rating(μm) |
3、5、 10、S-W |
| Differential pressure |
0.2Mpa |
| Working temperature(°C) |
5-80 |
Recommended viscosity(cSt) |
10- 160 |
Voltage(V) |
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.55 |
0.75 |
1.1 |
1.1 |
1.5
|
2.2
|
3.0
|
| Weight(kg) |
46
|
78
|
90
|
96
|
102
|
120
|
160
|
| Dimensions(mm) |
520x350 x950
|
520 x350x950
|
720x 680 x 1020
|
720 x<680 x 1020
|
720 x 680x 1020
|
720x 750x 1020
|
720x750x 122
|

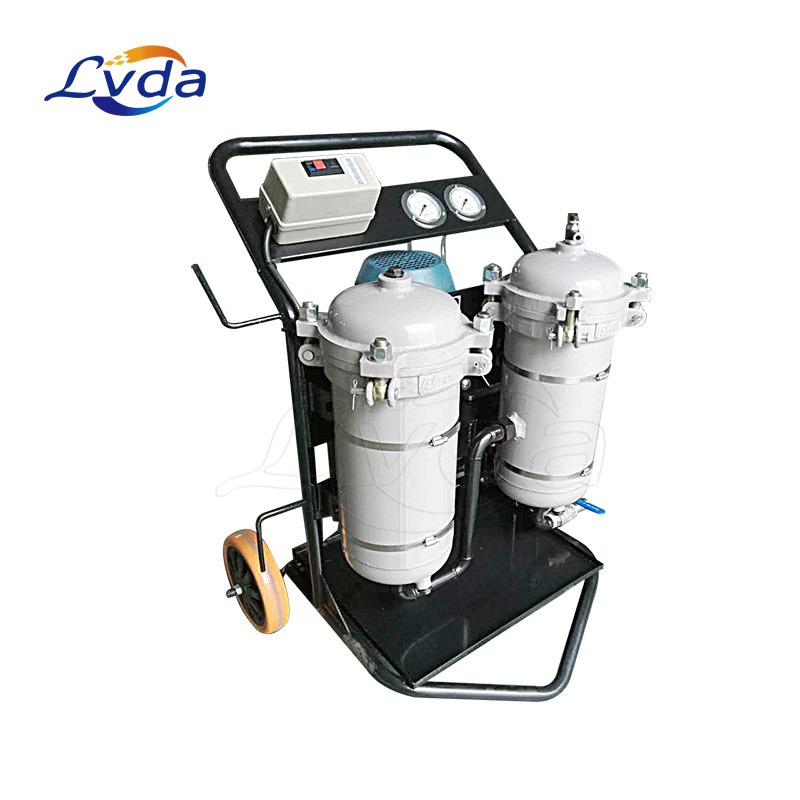

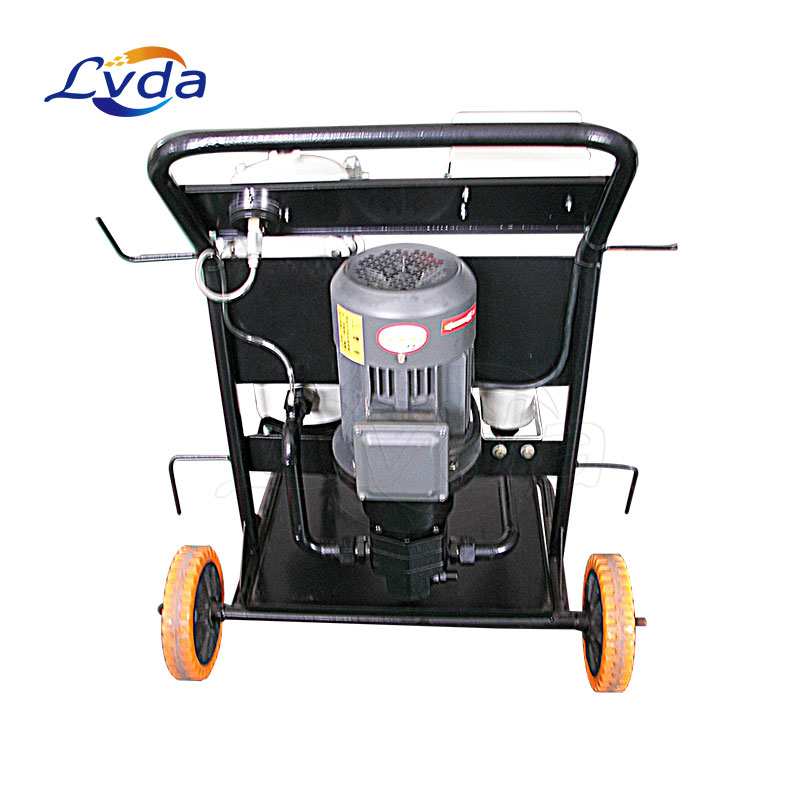

This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.
The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.
The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
Efficient mobile filter device modern hydraulic and lubrication systems
Easy filling and cleaning of hydraulic and lubrication systems
Stable and stable, flexible handling thanks to a frame with wheels and foldable carrying handle, stairs can also be used without any problems (like a suitcase trolley)
The device can be carried in one hand by folding down the carrying handle
Low-noise internal gear pump with double-bearing drive shaft and integrated pressure relief valve
Complete with suction and delivery hose, suction lance with coarse sieve
Integrated oil drip tray
Minimum power losses due to high efficiency and streamlined design of the components
Maintenance indicator (pressure gauge)
Equipped with highly efficient chinamade spin-on cartridges
Guaranteed retention rates according to ISO 16889 multipass test
High dirt holding capacity due to large filter surface
Achievement of defined cleanliness classes
Service-friendly handling
Applications
Hydraulic Oil
Turbine Oil
Lubrication Oil
Gear Oil
Transformer Oil
Diesel Fuel
Phosphate Ester (Fyrquel EHC Fluid)
PAO Fluid
