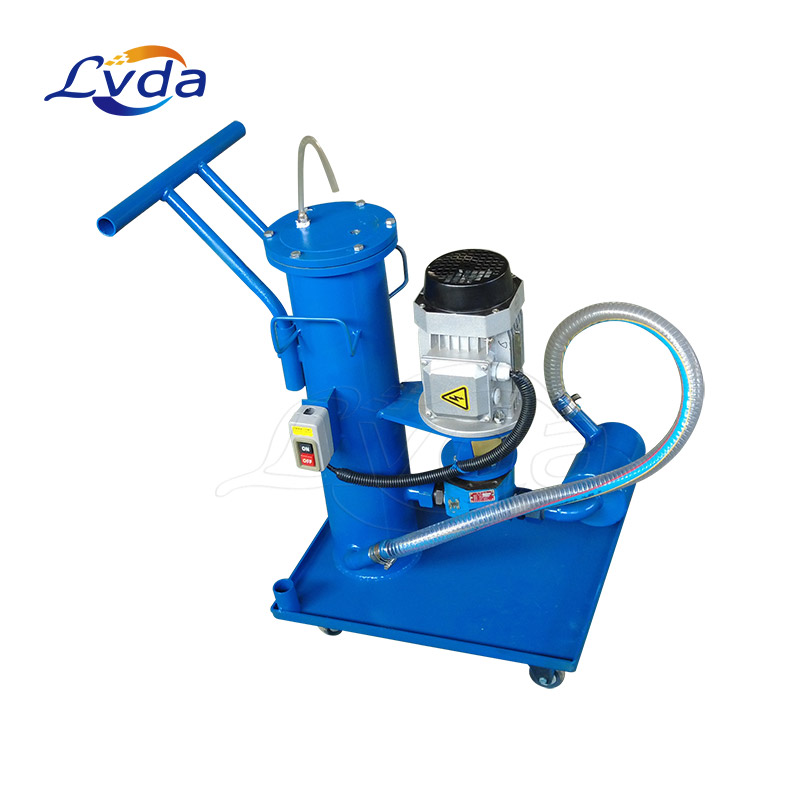

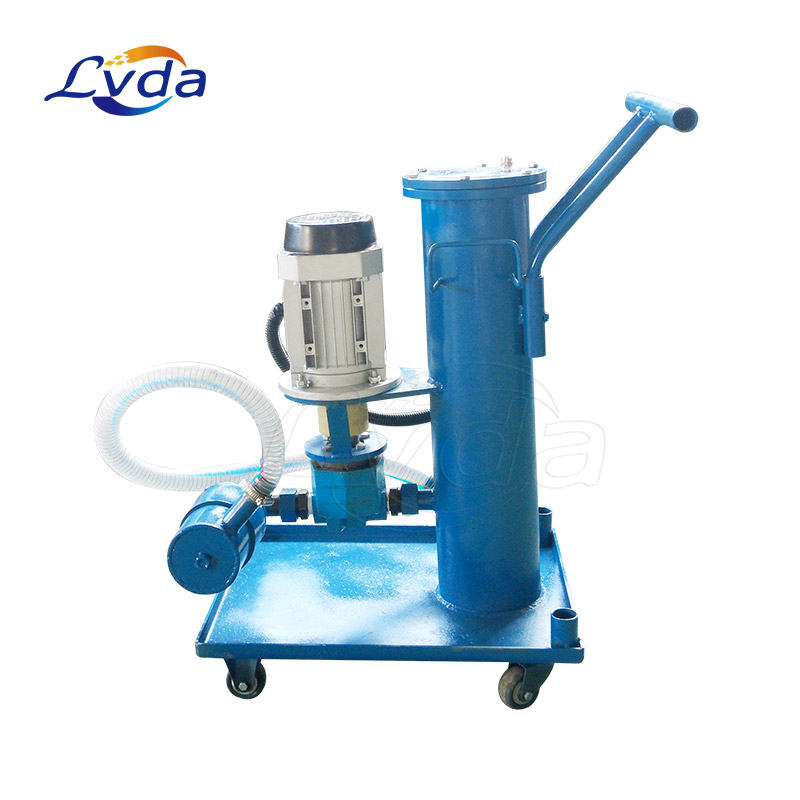

Mobile off-line purifier for hydraulic and lubrication systems
Mobile off-line purifier for hydraulic and lubrication systems increase the productivity of machines and systems.
The cleanliness of hydraulic media is crucial for trouble-free and low-maintenance operation of hydraulic and lubrication systems. We now relies more on off-line filtration and thus extends the maintenance cycles of systems.
Analyzes show that 70 to 80 percent of all machine failures are caused by contamination of the operating fluids due to insufficient oil maintenance. Because precise hydraulic and lubrication systems work with gap dimensions in the micrometer range, so that even the smallest dirt particles lead to increased energy consumption due to friction, reduced performance and to can lead to standstills. This often results in unscheduled oil changes or the replacement of sensitive components.
Contamination in hydraulic media can have various causes: Basically, a distinction is made between contamination that is present in the system and that has already been brought in during production, storage and installation of individual components (residues of casting sand, chips or slag) and contamination that penetrates later, caused, for example, by damaged parts Tank and cylinder seals or incorrectly designed filling and ventilation filters, as well as contamination that is generated in the system during ongoing operation of the system.
In addition to cavitation and jet wear, this also includes mechanical, biological and chemical mechanisms (caused by the friction of two components in connection with existing particles or the formation of oil carbon due to system overheating), which negatively influence the properties of service fluids over the long term.
Even fresh oil cannot usually be described as pure, since it is rarely ultra-finely filtered during production and processing and additional particles are introduced during filling, decanting and transport, for example in reprocessed barrels. It therefore makes sense to only fill a hydraulic system using a suitable mobile filter device.
Parameters
| Model |
AOP-B25
-*/** |
A0P-B32
-*/** |
A0P-B40
-*/** |
A0P-B50
-*/** |
A0P-B63
-*/** |
A0P-B100
-*/** |
A0P-B150
-*/** |
| Rated flow(L /min) |
25 |
32 |
40 |
50 |
63 |
100 |
150 |
| Rated pressure(MPa) |
0.6 |
| Mpa(MPa) |
≤0.02 |
| Coarse filter precision(μm) |
100 |
| Grade 1 filter rating(μm) |
10、20、40 |
| Grade 2 filter rating(μm) |
3、5、 10、S-W |
| Differential pressure |
0.2Mpa |
| Working temperature(°C) |
5-80 |
Recommended viscosity(cSt) |
10- 160 |
Voltage(V) |
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.55 |
0.75 |
1.1 |
1.1 |
1.5
|
2.2
|
3.0
|
| Weight(kg) |
46
|
78
|
90
|
96
|
102
|
120
|
160
|
| Dimensions(mm) |
520x350 x950
|
520 x350x950
|
720x 680 x 1020
|
720 x<680 x 1020
|
720 x 680x 1020
|
720x 750x 1020
|
720x750x 122
|
This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.
The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.
The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
Mobile off-line filtration for hydraulic and lubrication systems
Filling of systems and containers
Pumping out used oil bypassing the filter
Pumping of container contents
Relief of the system filter during commissioning and after repairs
Achievement of defined cleanliness classes with china-made filter elements
Very high dirt holding capacity thanks to the chinamade off-line filter element
Service-friendly handling
Chinamade off-line filter with quick-release fastener for quick element changes
Oil pan/automatic air vent
Automatic pump shutdown
Low operating noise
Robust feed pump with helical gearing and integrated pressure relief valve
Suitable for mineral oils, HFC and biodegradable oils
Good suction behavior, also suitable for highly viscous media
Applications
Suitable for mineral oils, HFC and biodegradable oils, and highly viscous media
Filter hydraulic and lubricating oil
Clean up the hydraulic and lubricating oil in use
Bypass fltration of hydraulic lubrication system
