Product Details
Movable hydraulic/lubrication oil dehydrator
We offer the most effective, durable, and user-friendly movable hydraulic/lubrication oil dehydrator on the market today. Our superior engineered design features maximize the water extraction rates from your oil. Utilizing top-quality components and workmanship ensure years of maintenance-free operation and performance.
Looking for a Oil Purification System? Check out our Dehydrator Oil Purification System! It has the high flow speed for dissolved water and gas removal. The movable hydraulic/lubrication oil dehydrator has a high negative-head capacity and is flexible with design dimensions and process arrangement. We will listen to your needs, then customize a movable dehydration system to your specific application!
It has been well documented that there are harmful effects to the components on rotating equipment caused by particulate and moisture contamination in hydraulic and lubrication oils. End-users can dramatically increase the life of the critical wear components and in-turn minimize downtime and maximize profitability.
Parameters
| Model |
AOP-B25
-*/** |
A0P-B32
-*/** |
A0P-B40
-*/** |
A0P-B50
-*/** |
A0P-B63
-*/** |
A0P-B100
-*/** |
A0P-B150
-*/** |
| Rated flow(L /min) |
25 |
32 |
40 |
50 |
63 |
100 |
150 |
| Rated pressure(MPa) |
0.6 |
| Mpa(MPa) |
≤0.02 |
| Coarse filter precision(μm) |
100 |
| Grade 1 filter rating(μm) |
10、20、40 |
| Grade 2 filter rating(μm) |
3、5、 10、S-W |
| Differential pressure |
0.2Mpa |
| Working temperature(°C) |
5-80 |
Recommended viscosity(cSt) |
10- 160 |
Voltage(V) |
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.55 |
0.75 |
1.1 |
1.1 |
1.5
|
2.2
|
3.0
|
| Weight(kg) |
46
|
78
|
90
|
96
|
102
|
120
|
160
|
| Dimensions(mm) |
520x350 x950
|
520 x350x950
|
720x 680 x 1020
|
720 x<680 x 1020
|
720 x 680x 1020
|
720x 750x 1020
|
720x750x 122
|

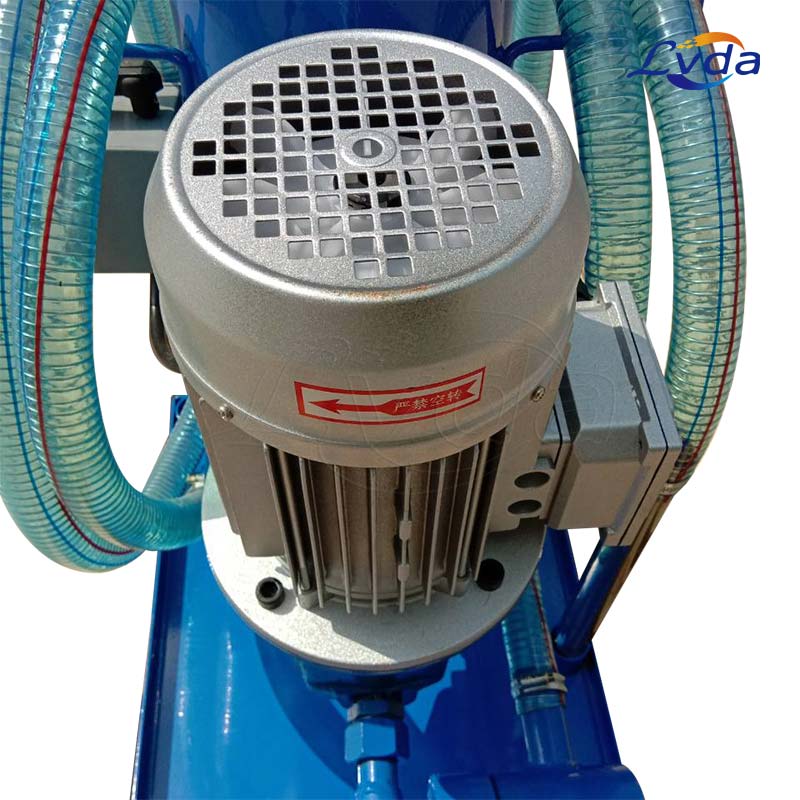

This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.

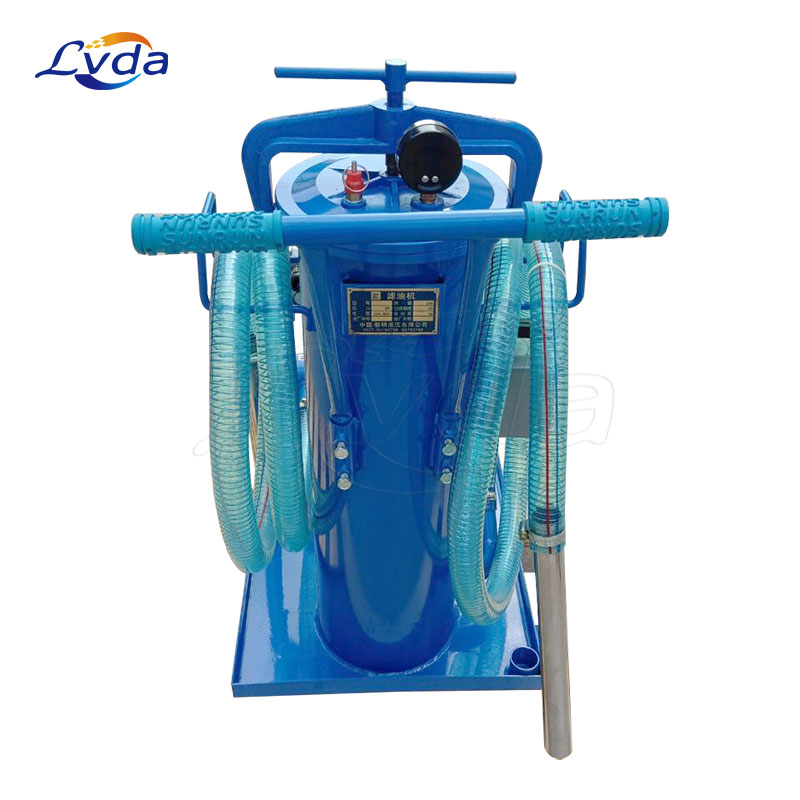

The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.
The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
Flow Rates Range from 1 GPM to 35 GPM
Electrical Service 3Phase/60Hz/210V
Self-Priming Positive Displacement Gear Pump
Internal Relief Valve Set at 100 PSI
Claw-Style Vacuum Pump – pulls deeper vacuum, higher CFM, and requires less maintenance
Motor Class 1 Explosion Proof, 50 Hertz, 3 Phase
Assembly Frame: Powder Coated Carbon Steel Platform
Inlet Suction Strainer for Pump Protection
Piping and Fittings – Carbon Steel
Filter Housing – Powder Coated, Epoxy Lined, Carbon Steel
Hoses: 20’ Medium Pressure Hydraulic
Nitrile (Buna-N): -40°F to 150°F
Fluorocarbon (Viton)*: -15°F to 200°F
High Temperature/Phosphate Ester Design
Applications
*Filter new oil
*Filter the oil in use
*Fill in and filter new oil
*Bypass filtration of hydraulic lubrication system
*Metallurgy, mechanical oilfield, chemical, mining, electric power, transportation, manufacturing and other industries purify hydraulic oil, hydraulic transmission oil, gear oil, compressor oil, refrigeration oil, heat treatment oil, diesel oil, heat transfer oil, coking oil, etc..
