Mobile/portable hydraulic/lubrication high-velocity flushing skids
Our company offers mobile/portable hydraulic/lubrication high-velocity flushing skids designed to achieve high rates higher than what you would typically see for a standard mobile filter cart application. Typical flow rates range in the 30 to 700 GPM range.
The high flow rates are essential for flushing larger diameter piping to hit the required Reynolds number and achieve your target ISO Cleanliness Code. Our equipment is designed with variable frequency drives providing great flexibility when operating.
We have a large inventory of Mobile/portable hydraulic/lubrication high-velocity flushing skids. Available in a variety of flow rates. We also offer an explosion proof option.
Parameters
| Model |
AOP-B25
-*/** |
A0P-B32
-*/** |
A0P-B40
-*/** |
A0P-B50
-*/** |
A0P-B63
-*/** |
A0P-B100
-*/** |
A0P-B150
-*/** |
| Rated flow(L /min) |
25 |
32 |
40 |
50 |
63 |
100 |
150 |
| Rated pressure(MPa) |
0.6 |
| Mpa(MPa) |
≤0.02 |
| Coarse filter precision(μm) |
100 |
| Grade 1 filter rating(μm) |
10、20、40 |
| Grade 2 filter rating(μm) |
3、5、 10、S-W |
| Differential pressure |
0.2Mpa |
| Working temperature(°C) |
5-80 |
Recommended viscosity(cSt) |
10- 160 |
Voltage(V) |
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.55 |
0.75 |
1.1 |
1.1 |
1.5
|
2.2
|
3.0
|
| Weight(kg) |
46
|
78
|
90
|
96
|
102
|
120
|
160
|
| Dimensions(mm) |
520x350 x950
|
520 x350x950
|
720x 680 x 1020
|
720 x<680 x 1020
|
720 x 680x 1020
|
720x 750x 1020
|
720x750x 122
|

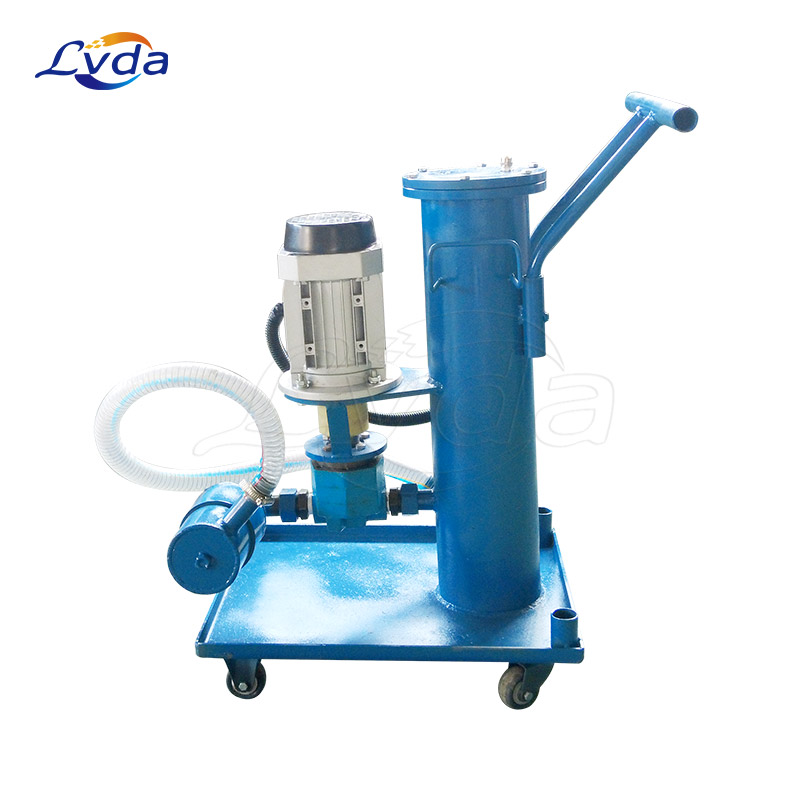

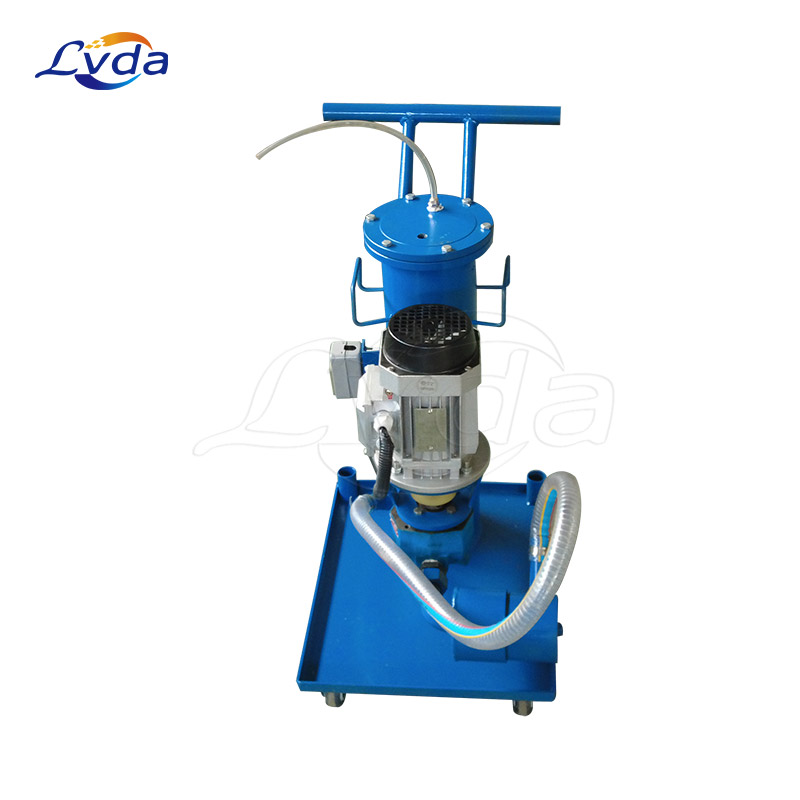

This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.
The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.
The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
-Removal of water, sludge and particles down to 20 μm in size. By opening the drain valve, these contaminants can be easily drained. A water separator can be used separately.
-The fuel optimizer (optional) decontaminates and stabilizes diesel fuel. The formation of tank sludge is prevented and reversed.
-The ultra-fine filter cleans diesel fuel and light hydraulic oil down to a particle size of 1 μm and absorbs water at the same time. The diesel fuel is then 97% free of particles and water.
-The Mobile/portable hydraulic/lubrication high-velocity flushing skids consists of high-quality components. The connections and pipes are standardized hydraulic parts. Mobile/portable hydraulic/lubrication high-velocity flushing skids is for ease of mobility. And large drip tray can be installed according to the clients' needs.
Applications
Particulate and Water Removal
Hydraulic Reservoir Maintenance
Gearbox Flushing & Oil Change
Filtration System Upgrades
Turbine Oil Conditioning
Refinery Upset Conditions
Complete System Flushing
Lubrication and Hydraulic Oils
