Product Details

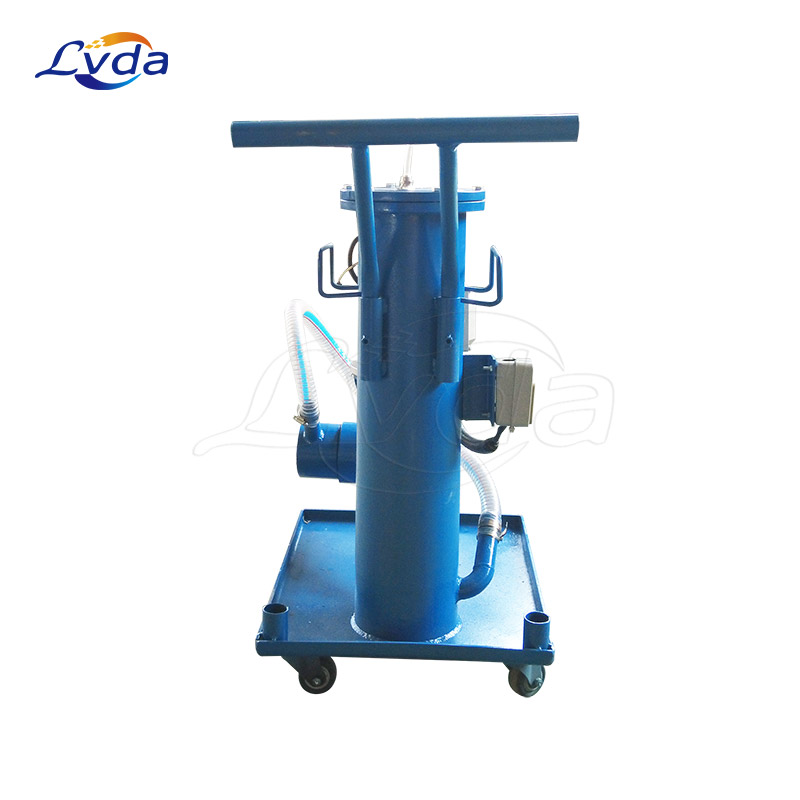

Custom hydraulic/lubrication mobile/portable filter carts
The custom hydraulic lubrication mobile portable filter carts can handle flow rates as low at 0.5 GPM all the way to higher flow rates (such as 5 GPM, 11 GPM, and 22 GPM) that are required in most industrial applications. We offer a large variety of materials and types of construction, including stainless steel and explosion-proof options.
Utilizing top-quality components and workmanship, ensures years of maintenance-free operations and performance.
They are extremely portable and ideal for a variety of applications.
We have a large inventory of Portable Equipment in stock ready to be rented at a moment’s notice. Our rental fleet is available in a variety of flow rates. We also offer explosion proof options.
Please note, we are continually adding to our fleet of filter carts. If you don’t see what you need here, just give your requirements and we help you determine the best possible equipment required to solve your problem.
Parameters
| Model |
AOP-B25
-*/** |
A0P-B32
-*/** |
A0P-B40
-*/** |
A0P-B50
-*/** |
A0P-B63
-*/** |
A0P-B100
-*/** |
A0P-B150
-*/** |
| Rated flow(L /min) |
25 |
32 |
40 |
50 |
63 |
100 |
150 |
| Rated pressure(MPa) |
0.6 |
| Mpa(MPa) |
≤0.02 |
| Coarse filter precision(μm) |
100 |
| Grade 1 filter rating(μm) |
10、20、40 |
| Grade 2 filter rating(μm) |
3、5、 10、S-W |
| Differential pressure |
0.2Mpa |
| Working temperature(°C) |
5-80 |
Recommended viscosity(cSt) |
10- 160 |
Voltage(V) |
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.55 |
0.75 |
1.1 |
1.1 |
1.5
|
2.2
|
3.0
|
| Weight(kg) |
46
|
78
|
90
|
96
|
102
|
120
|
160
|
| Dimensions(mm) |
520x350 x950
|
520 x350x950
|
720x 680 x 1020
|
720 x<680 x 1020
|
720 x 680x 1020
|
720x 750x 1020
|
720x750x 122
|

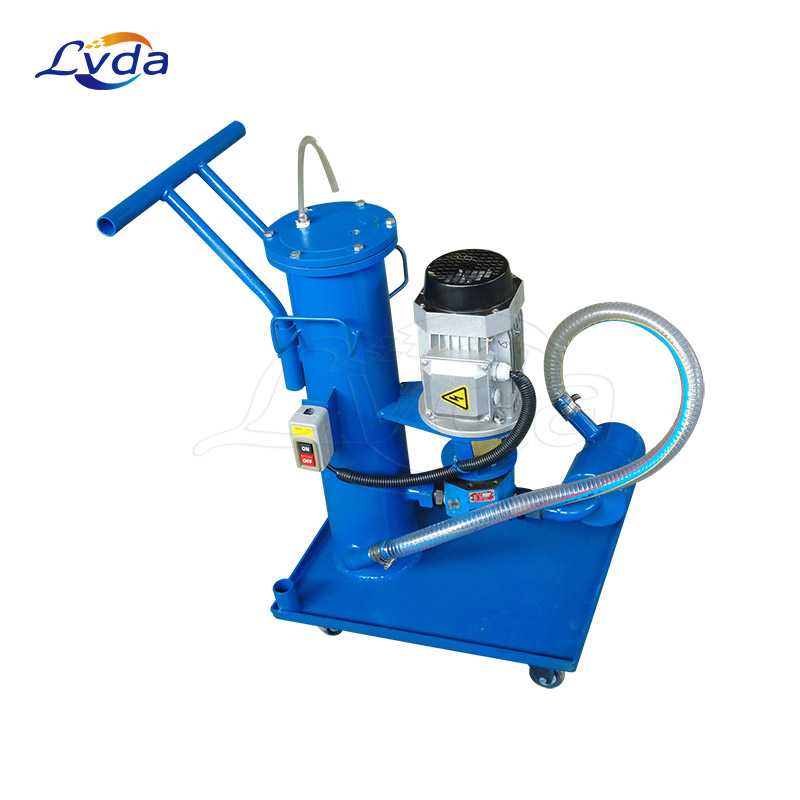

This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.
The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.
The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
Variety of Flow Rates
Handle wide range of viscosities
Extremely portable and easy to move
Electric and Pneumatic Motor Options
Achieve ISO Cleanliness Codes of 16/14/11 or higher
Applications
Particulate and Water Removal
Hydraulic Reservoir Maintenance
Gearbox Flushing & Oil Change
Filtration System Upgrades
Turbine Oil Conditioning
Refinery Upset Condition
Complete System Flushing
Varnishing
Liquid Coalescing and Separating
High Viscosity Lubrication and Hydraulic Oils
Transfer and Replenishment of New Fluids
Reusing Oil and Expanding Machinery Life
