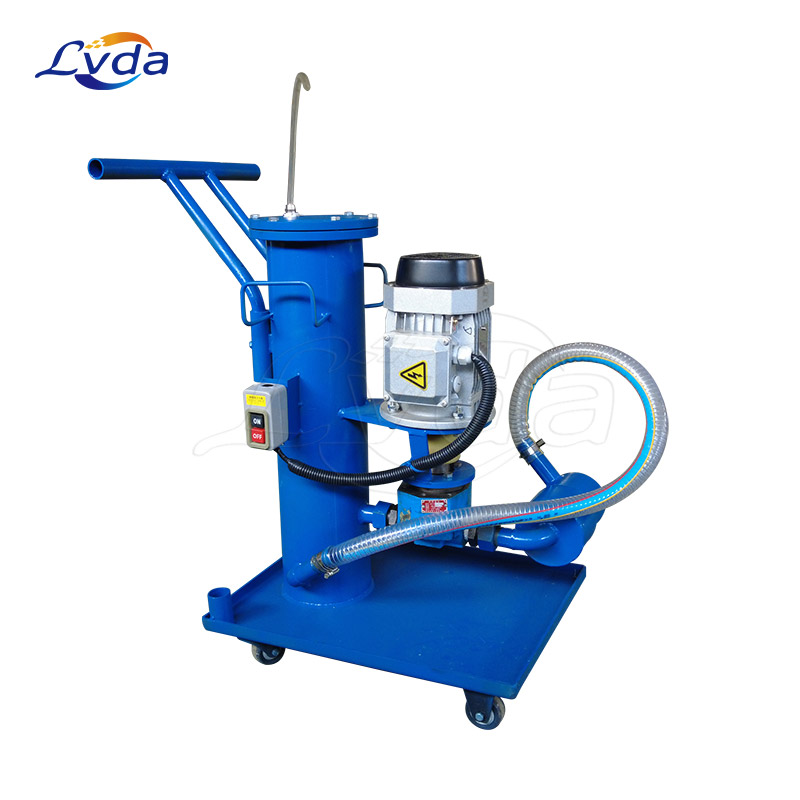

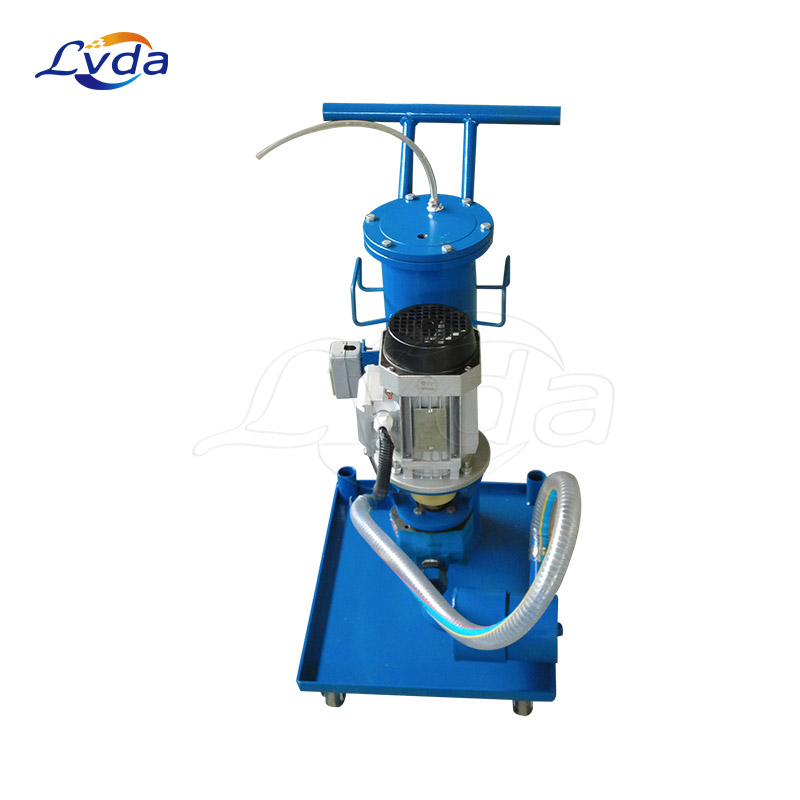

Mobile/portable filter cart purifier equipment for lubricating oils
We manufacture all kinds of mobile filtration systems to meet every critical industrial filtration demand, available for purchase. Our most popular systems, mobile/portable filter cart purifier equipment is ideal for use in industrial plants and with many other applications because they are versatile, reliable, and portable. A portable filter cart can be used to filter nearly any type of hydraulic fluid, including insulating oils, lubricating oils, and coolants. Our systems are perfect for removing particulate and water contamination from hydraulic fluids, such as high-viscosity lubricating oil. A filter cart can also help transfer and replenish new fluids, as well as flush fluids that are already in service with high-efficiency elements.
Our mobile filter systems can handle flow rates as low as 0.7 GPM all the way to higher flow rates (such as 17 GPM ) that are required in most industrial applications. We offer a large variety of materials and types of construction, including stainless steel and explosion-proof function~
Parameters
| Model |
AOP-B25
-*/** |
A0P-B32
-*/** |
A0P-B40
-*/** |
A0P-B50
-*/** |
A0P-B63
-*/** |
A0P-B100
-*/** |
A0P-B150
-*/** |
| Rated flow(L /min) |
25 |
32 |
40 |
50 |
63 |
100 |
150 |
| Rated pressure(MPa) |
0.6 |
| Mpa(MPa) |
≤0.02 |
| Coarse filter precision(μm) |
100 |
| Grade 1 filter rating(μm) |
10、20、40 |
| Grade 2 filter rating(μm) |
3、5、 10、S-W |
| Differential pressure |
0.2Mpa |
| Working temperature(°C) |
5-80 |
Recommended viscosity(cSt) |
10- 160 |
Voltage(V) |
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.55 |
0.75 |
1.1 |
1.1 |
1.5
|
2.2
|
3.0
|
| Weight(kg) |
46
|
78
|
90
|
96
|
102
|
120
|
160
|
| Dimensions(mm) |
520x350 x950
|
520 x350x950
|
720x 680 x 1020
|
720 x<680 x 1020
|
720 x 680x 1020
|
720x 750x 1020
|
720x750x 122
|
This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.
The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.
The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
This mobile/portable filter cart purifier equipment for lubricating oils can move around for on-site oil filtration job, easy and steady for transport.
This mobile/portable filter cart purifier equipment for lubricating oils is completely water proof, dust proof, it can protect the machine not to be damaged by raining weather, or in other bad circumstance use.
Flow rate is adjustable
Two housings fitted offering the possibility of staged filtration
A range of element micron ratings available
Multiple power supply options available
Equipped with a laser particle monitor, LED display
Off-line contamination control
High volume dirt holding ability
Rugged frame with integral drip tray
Display particle counts in real time
Small footprint
Easy to transport
Increased dirt holding capacity
Staged filtration possibilities to reduce element change out
Applications
For cleaning-up your hydraulic system before restarting following a component failure.
Providing clean fluid when re-filling and adding fluid to the system reservoir.
For use in many industries including steel production, machine tools, automotive, etc..
For filtrating various industrial lubricating oils such as hydraulic oil, gear oil, coolant oil, compressor oil, etc..
