Product Details

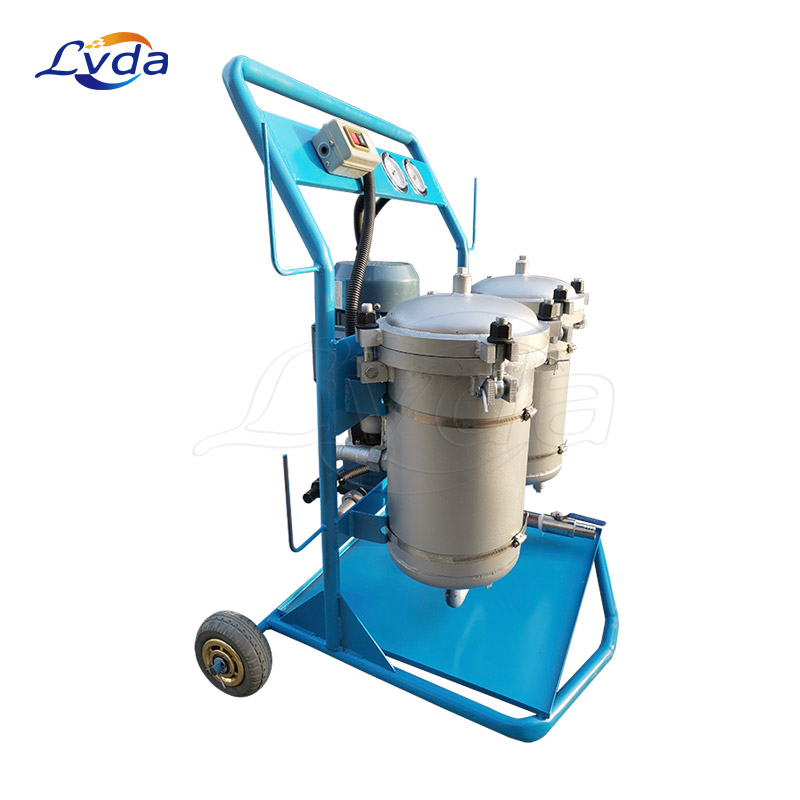

Mobile pneumatic bag oil filter cart
Our mobile pneumatic bag oil filter cart utilizes the industry standard Size Bag Housing. This pneumatic bag oil filter cart is ideal for batch processing, or filtering from tanks or drums. It can be used for fltering new fluids during transfer and replenishment, as well as, filtering fluids currently in service. Our pneumatic bag oil filter carts are most effective controlling particulate problems before they cause damage to critical production equipment.
Our Pneumatic bag oil filter cart employs a positive displacement pneumatic pump that transfers fluids by movement of diaphragms driven by compressed air. Our pneumatic bag oil filter cart has a pulsation dampener which acts as an air cushion and automatically adjusts to the pressure change and absorbs any pulsation.
Parameters
| Model |
AOP-B25
-*/** |
A0P-B32
-*/** |
A0P-B40
-*/** |
A0P-B50
-*/** |
A0P-B63
-*/** |
A0P-B100
-*/** |
A0P-B150
-*/** |
| Rated flow(L /min) |
25 |
32 |
40 |
50 |
63 |
100 |
150 |
| Rated pressure(MPa) |
0.6 |
| Mpa(MPa) |
≤0.02 |
| Coarse filter precision(μm) |
100 |
| Grade 1 filter rating(μm) |
10、20、40 |
| Grade 2 filter rating(μm) |
3、5、 10、S-W |
| Differential pressure |
0.2Mpa |
| Working temperature(°C) |
5-80 |
Recommended viscosity(cSt) |
10- 160 |
Voltage(V) |
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.55 |
0.75 |
1.1 |
1.1 |
1.5
|
2.2
|
3.0
|
| Weight(kg) |
46
|
78
|
90
|
96
|
102
|
120
|
160
|
| Dimensions(mm) |
520x350 x950
|
520 x350x950
|
720x 680 x 1020
|
720 x<680 x 1020
|
720 x 680x 1020
|
720x 750x 1020
|
720x750x 122
|

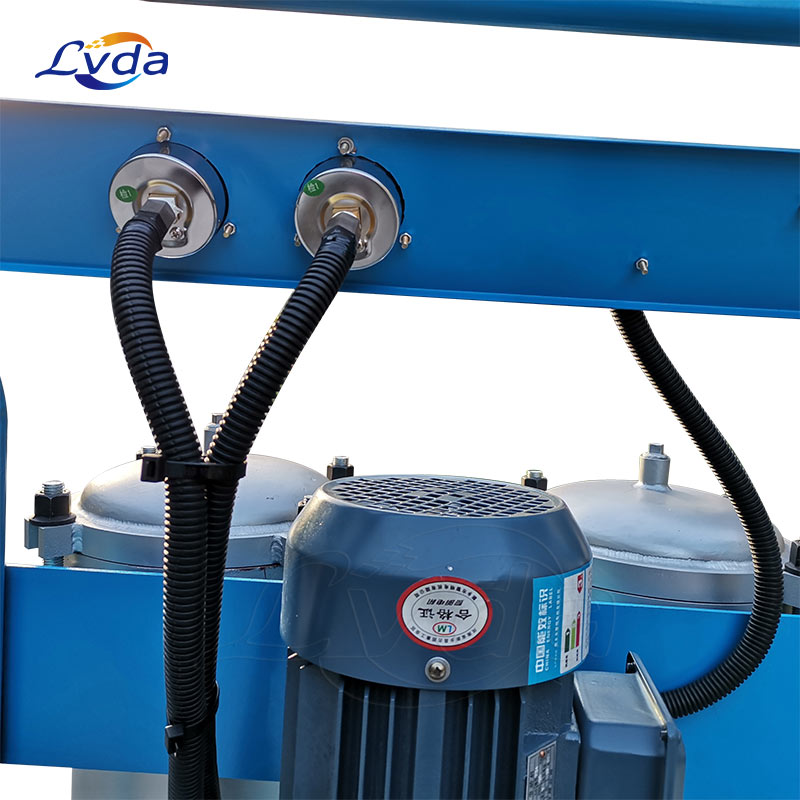

This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.
The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.
The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
12 LPM to 170 LPM
Carbon Steel or Stainless Steel Housing
Aluminum Pneumatic Pump
Vacuum Gauges
Aluminum Pulsation Dampener
Sample Ports
Quick-Opening Covers That Do Not Require Special Tools
Two Swivel Locking Casters
Uses Standard Number 2 Size Filter Bags
Two Rubber Wheels
Filter Regulator
Seamless Stainless Steel Tubing
Applications
Our mobile pneumatic bag oil filter cart can be used with coolants, metal working, and other fluids. Most of these fluids are out of spec before they even come in contact with the hydraulic or lube systems. Contamination enters the fluid during processing, mixing, handling and storage. Our mobile pneumatic bag oil filter cart is the ideal means of pre-fltering and transferring these fluids.
