Product Details
Mobile/portable filter system unit trolley for hydraulic/lubricating oil
Our mobile/portable filter system unit trolley is the ideal filtration system for the recirculating or transferring of fluids in and out of reservoirs and holding tanks. It is ideal for high viscosity lubrication and hydraulic oils.
The mobile/portable filter system unit trolley is the perfect filtration unit to use when high levels of particulate contamination are present. The high surface area yields extended service life of the filter elements reducing downtime and filter change-outs.
The mobile/portable filter system unit trolley is manufactured with china made carbon steel. It has large non-shred rubber wheels with swivel/locking casters for ease of portability. All tubing is 304 Stainless Steel for a large compatibility range.
The standard mobile/portable filter system unit trolley for hydraulic/lubricating oil is compatible with petroleum and mineral based fluids.
Parameters
| Model |
AOP-B25
-*/** |
A0P-B32
-*/** |
A0P-B40
-*/** |
A0P-B50
-*/** |
A0P-B63
-*/** |
A0P-B100
-*/** |
A0P-B150
-*/** |
| Rated flow(L /min) |
25 |
32 |
40 |
50 |
63 |
100 |
150 |
| Rated pressure(MPa) |
0.6 |
| Mpa(MPa) |
≤0.02 |
| Coarse filter precision(μm) |
100 |
| Grade 1 filter rating(μm) |
10、20、40 |
| Grade 2 filter rating(μm) |
3、5、 10、S-W |
| Differential pressure |
0.2Mpa |
| Working temperature(°C) |
5-80 |
Recommended viscosity(cSt) |
10- 160 |
Voltage(V) |
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.55 |
0.75 |
1.1 |
1.1 |
1.5
|
2.2
|
3.0
|
| Weight(kg) |
46
|
78
|
90
|
96
|
102
|
120
|
160
|
| Dimensions(mm) |
520x350 x950
|
520 x350x950
|
720x 680 x 1020
|
720 x<680 x 1020
|
720 x 680x 1020
|
720x 750x 1020
|
720x750x 122
|

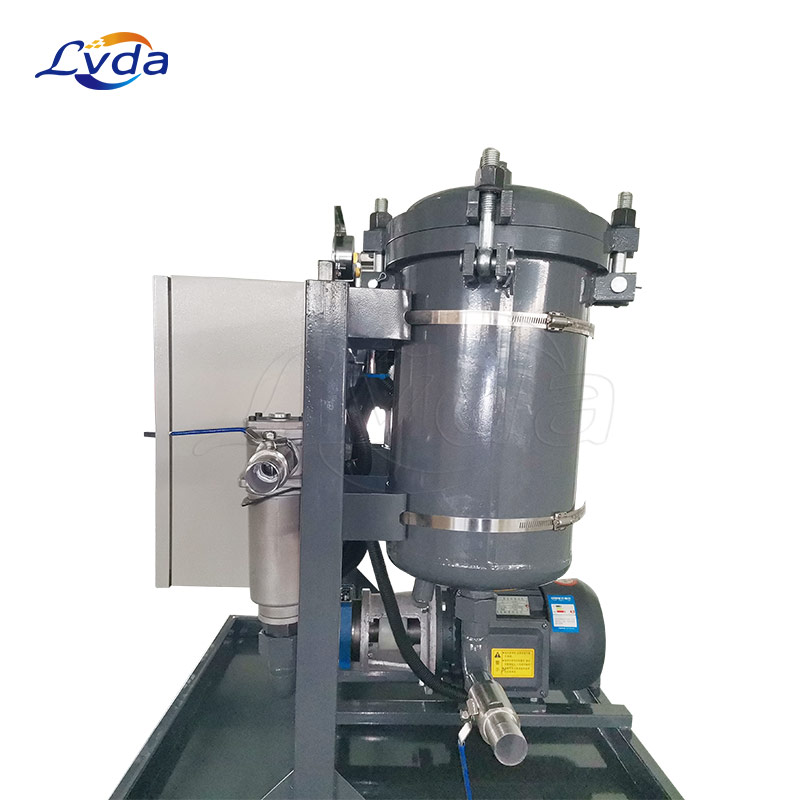

This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.

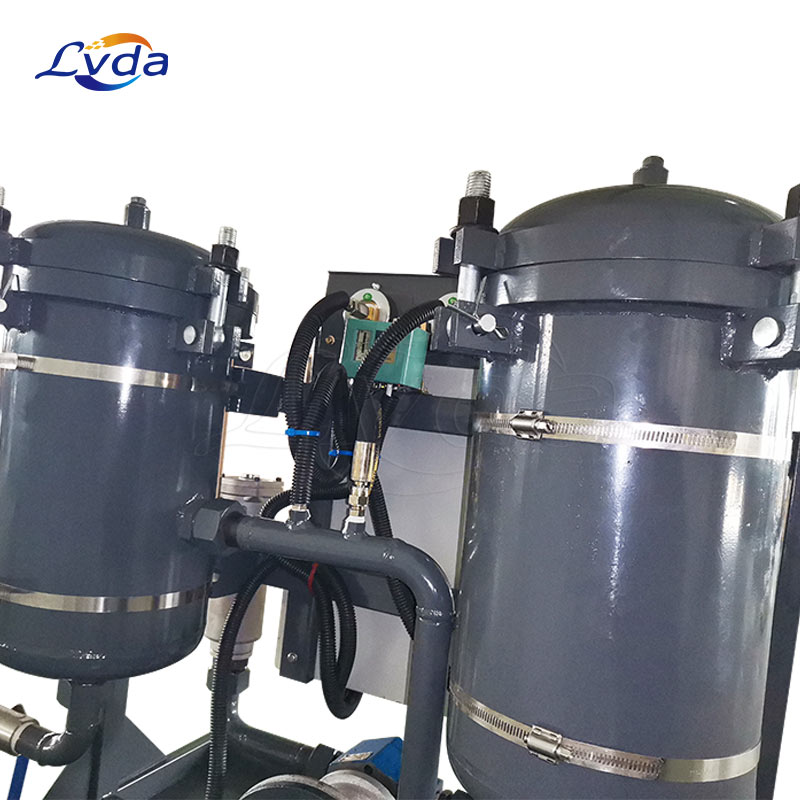

The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.
The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
Rated Filter Elements per ISO 16889 Standards
Water Removal Filter Elements
Upstream and Downstream Oil Sampling Ports
Differential Pressure Gauge
Single or Double Length Element Options
Condition Bulk Oil Before Use
ISO Viscosity Range of ISO 22 to ISO 320
Seamless Stainless Steel Tubing with JIC Fittings
Vent Relief Valve with System Pressure Gauge
Two Medium Pressure Hydraulic Hoses
40-foot Cord Reel
Applications
Power Generation
Combustion Turbine Lube
Coal Mill Gear Boxes
Conveyor Gear Boxes
Boiler Feed Pump Lube
Windturbine Gear Boxes
EHC Control
ACC – WCC Gear Boxes
Scrubber Equipment Gear Boxes
Light Industrial
Oil Reclamation
Blow Molding Hydraulic
Machine Tool Hydraulic
Injection Molding
Automotive transfer line Hydraulic Oil
Fuels and Chemical
Drilling Equipment Gear Box Flushing
Extruder Gear Boxes
Compressor Lube
Boiler Feed Pump Lube
Offshore Drilling Platforms
Transportation
Ship Board Hydraulic-Lube
Diesel Locomotive Gear Box
Transmission Systems
Pulp & Paper
Wet end/dryer lube
Press section lube and hydraulics
Boiler Feed Pump lube
Cooling Tower Gear Boxes
Military
Military Equipment Hydraulics
Aircraft – Road Equipment
Agriculture
Conveyor Gear Boxes
Harvesting Equipment Hydraulic
Food & Beverage
Food Grade Hydraulic Oil
Conveyor Gear Boxes
Primary Metals
Roll mill gear and pinion lube
