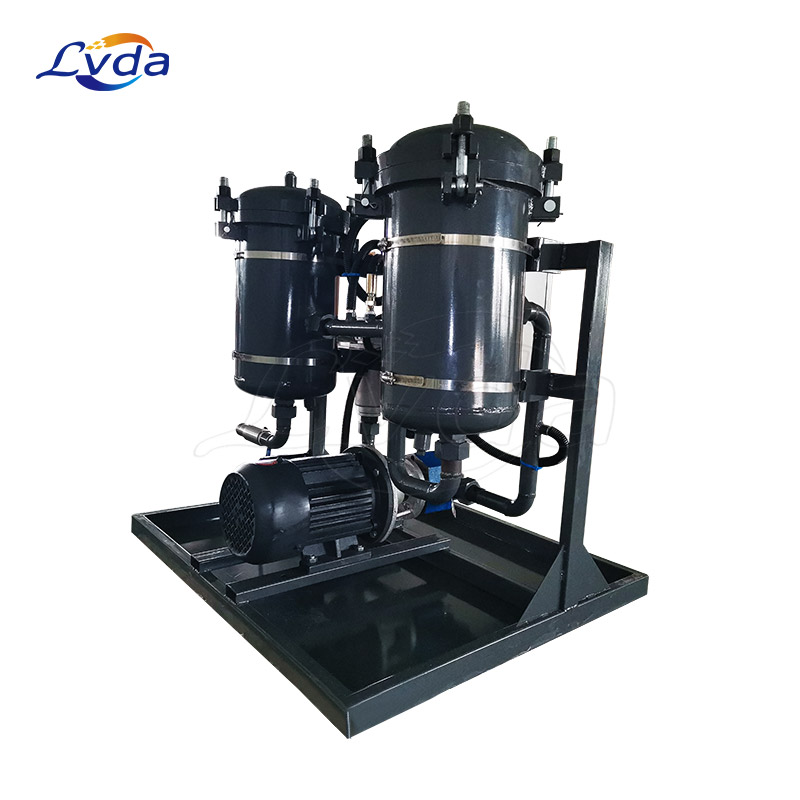

Mobile portable hydraulic/lubrication oil purifier skid
The mobile portable hydraulic/lubrication oil purifier skid is a dual stage mobile filtration system is designed with a pneumatic pump and is ideal for applications where electrical connections are not preferred. These types of portable filter carts are ideal for filtering high-viscosity lubrication and hydraulic oils.
This mobile portable hydraulic/lubrication oil purifier skid will help protect your fluid systems against failure due to poor oil quality. It will allow you to meet or exceed your target oil cleanliness codes per ISO 4406. Our Mobile portable hydraulic/lubrication oil purifier skid utilizes a positive-displacement pneumatic pump, that transfers fluids by movement of diaphragms driven by compressed air. The large filter housings are used as pulsation dampeners which acts as an air cushion to adjust to and absorb any pulsation.
This mobile portable hydraulic/lubrication oil purifier skid is designed with the operator in mind. It is custom made to your specifications. From flow rate to flow meters to temperature gauges, we can meet your demands.
Parameters
| Model |
AOP-B25
-*/** |
A0P-B32
-*/** |
A0P-B40
-*/** |
A0P-B50
-*/** |
A0P-B63
-*/** |
A0P-B100
-*/** |
A0P-B150
-*/** |
| Rated flow(L /min) |
25 |
32 |
40 |
50 |
63 |
100 |
150 |
| Rated pressure(MPa) |
0.6 |
| Mpa(MPa) |
≤0.02 |
| Coarse filter precision(μm) |
100 |
| Grade 1 filter rating(μm) |
10、20、40 |
| Grade 2 filter rating(μm) |
3、5、 10、S-W |
| Differential pressure |
0.2Mpa |
| Working temperature(°C) |
5-80 |
Recommended viscosity(cSt) |
10- 160 |
Voltage(V) |
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.55 |
0.75 |
1.1 |
1.1 |
1.5
|
2.2
|
3.0
|
| Weight(kg) |
46
|
78
|
90
|
96
|
102
|
120
|
160
|
| Dimensions(mm) |
520x350 x950
|
520 x350x950
|
720x 680 x 1020
|
720 x<680 x 1020
|
720 x 680x 1020
|
720x 750x 1020
|
720x750x 122
|
This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.
The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.

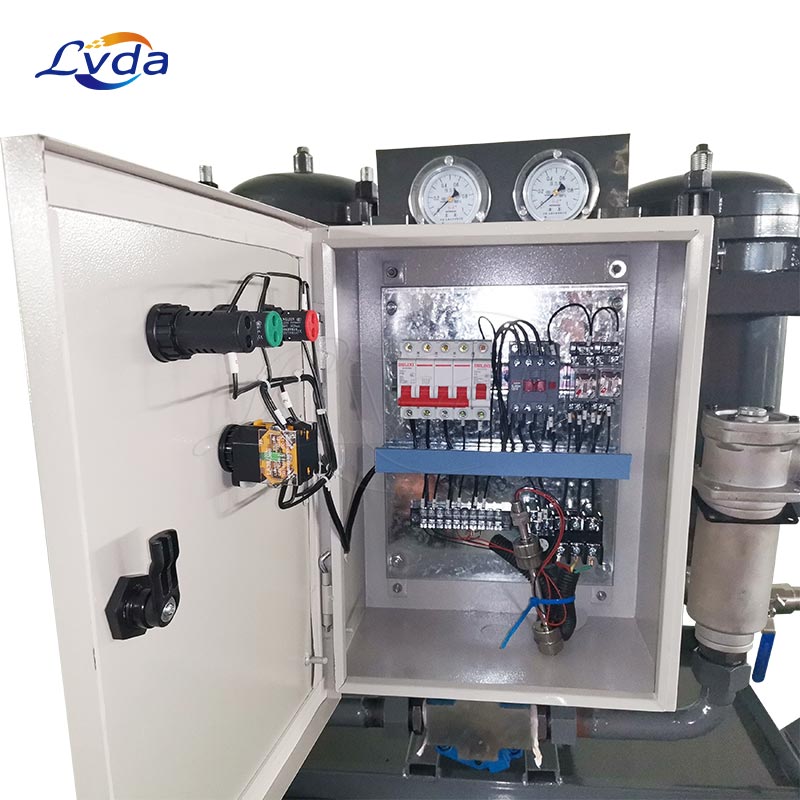

The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
Dual Stage
High Dirt Holding Capacity
Variable Flow Rates Pneumatic Pump
Explosion Proof
Flow Rates Range from 1 GPM to 15 GPM
Inlet Oil Sample Valve
8 micron B2000 Spin-On Filter
Outlet Oil Flow Indicator Sight Glass
Water Removal Membrane
High Quality Heavy Duty Washdown Motor
Self-Priming Positive Displacement Gear Pump
Low Maintenance Gast Rocking Piston Vacuum Pump
Assembly Frame: Chemically Resistant Powder Coating
Puncture Proof Tires
Applications
Our mobile portable hydraulic/lubrication oil purifier skid are widely applied in machinery manufacturing, oil production, construction hydraulics, power equipment, lifting and transportation machinery, machine tool lubrication, injection molding, metallurgy, chemical equipment, and agricultural machinery. Diesel oil, hydraulic oil and other industrial oils are purified and filtered.
