Product Details
Mobile pneumatic cartridge filtration and purification skid
Our mobile pneumatic cartridge filtration and purification skid, eliminates 100 percent free water and up to 90 percent dissolved water from oil without using expensive and maintenance-sensitive vacuum pumps and elements.
Water in oil can seriously shorten the life of hydraulic systems and lubricating oil systems. Our mobile oil dryer filtration units is designed to remove the water from the oil to extend the life of the oil and installations. Using a special process, the mobile oil dryer filtration units efficiently removes water and solid particles from the oil. The Mobile pneumatic cartridge filtration and purification system makes use of the physical phenomenon of mass transfer. By using the ambient air and its capacity to absorb water, the water is converted into water vapour, so that the water can be discharged cost efficiently without having to replace filter elements. Because the water is absorbed into the air, there is no collecting tray for the water that still has to be drained.
The especial designed frame is kept small and compact to allow access to tight spaces, the central lifting point allows for moving to different floors and the optional wheels make transport easy. As standard, the mobile pneumatic cartridge filtration and purification skid are equipped with a water sensor to continuously measure the water saturation point of the oil and display it on the control panel.
Parameters
| Model |
AOP-B25
-*/** |
A0P-B32
-*/** |
A0P-B40
-*/** |
A0P-B50
-*/** |
A0P-B63
-*/** |
A0P-B100
-*/** |
A0P-B150
-*/** |
| Rated flow(L /min) |
25 |
32 |
40 |
50 |
63 |
100 |
150 |
| Rated pressure(MPa) |
0.6 |
| Mpa(MPa) |
≤0.02 |
| Coarse filter precision(μm) |
100 |
| Grade 1 filter rating(μm) |
10、20、40 |
| Grade 2 filter rating(μm) |
3、5、 10、S-W |
| Differential pressure |
0.2Mpa |
| Working temperature(°C) |
5-80 |
Recommended viscosity(cSt) |
10- 160 |
Voltage(V) |
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.55 |
0.75 |
1.1 |
1.1 |
1.5
|
2.2
|
3.0
|
| Weight(kg) |
46
|
78
|
90
|
96
|
102
|
120
|
160
|
| Dimensions(mm) |
520x350 x950
|
520 x350x950
|
720x 680 x 1020
|
720 x<680 x 1020
|
720 x 680x 1020
|
720x 750x 1020
|
720x750x 122
|
This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.

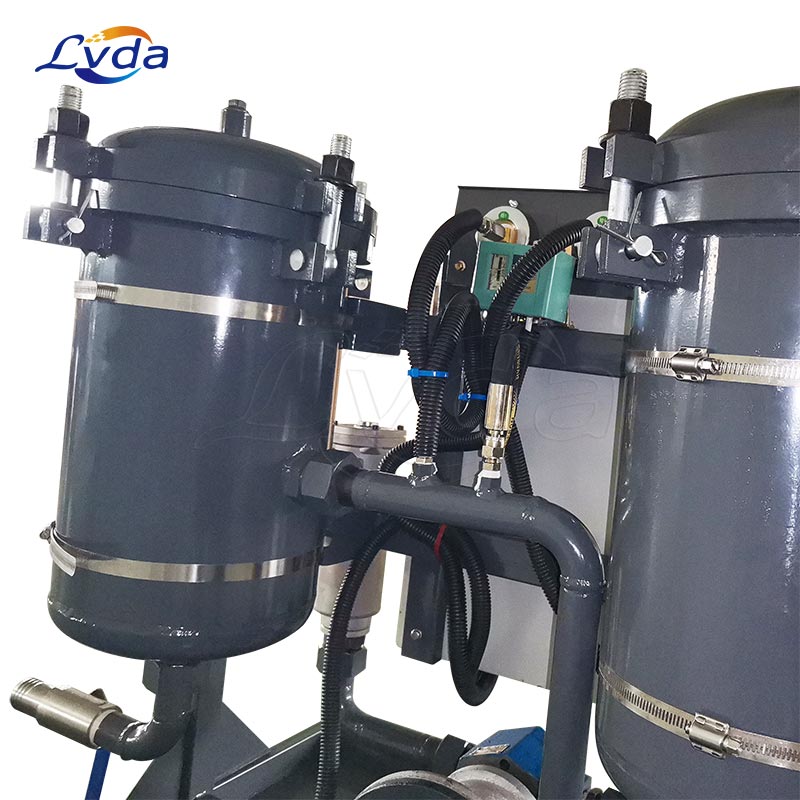

The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.

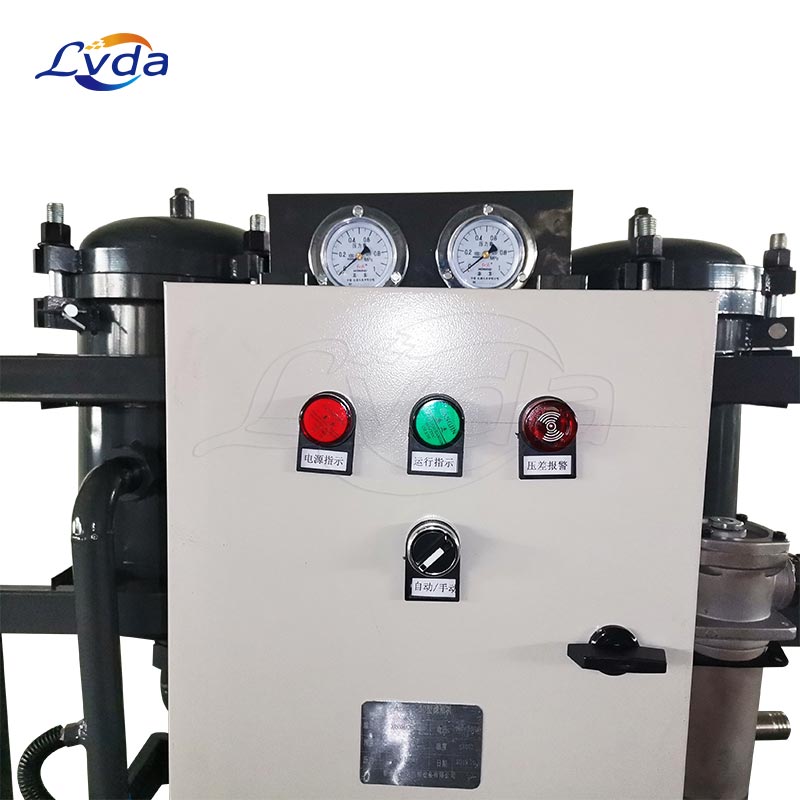

The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
-High water separation rate and removal of solid contaminants in a system
-Easy operation and maintenance
-Reduces liquid recycling costs
-No expensive vacuum pump to maintain or replace
-Special technology to separate water using ambient air
-Compact and efficient in size
-Removal of free and dissolved water
-Reduction in Life Cycle Cost
-Increased oil service life
-Reliable and convenient operation
Applications
The Mobile oil dryer filtration and purification skid can be applied in: Power Generation,Combustion Turbine Lube,Coal Mill Gear Boxes,Conveyor Gear Boxes,Boiler Feed Pump Lube,Windturbine Gear Boxes,EHC Control,ACC – WCC Gear Boxes,Scrubber Equipment Gear Boxes,Light Industrial,Oil Reclamation,Blow Molding Hydraulic,Machine Tool Hydraulic,Injection Molding,Automotive transfer line Hydraulic Oil, and etc..
Our mobile pneumatic cartridge filtration and purification skid can quickly remove water, trace water, gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from insulating oil effectively. It is suitable for on-site oil purification and oil maintenance for different places. Additionally, this system can also treat other engine oils.
