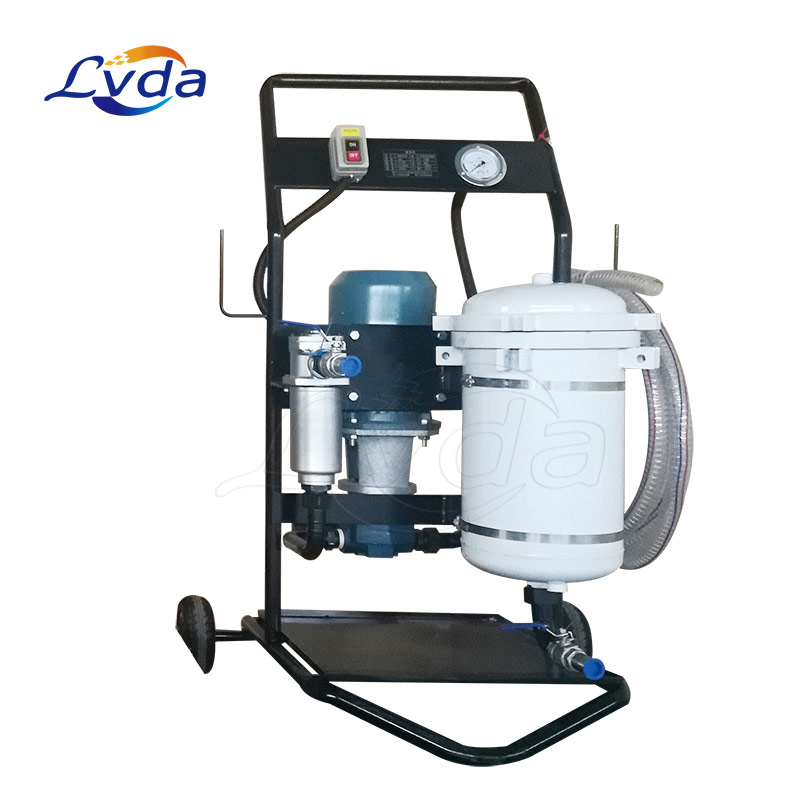

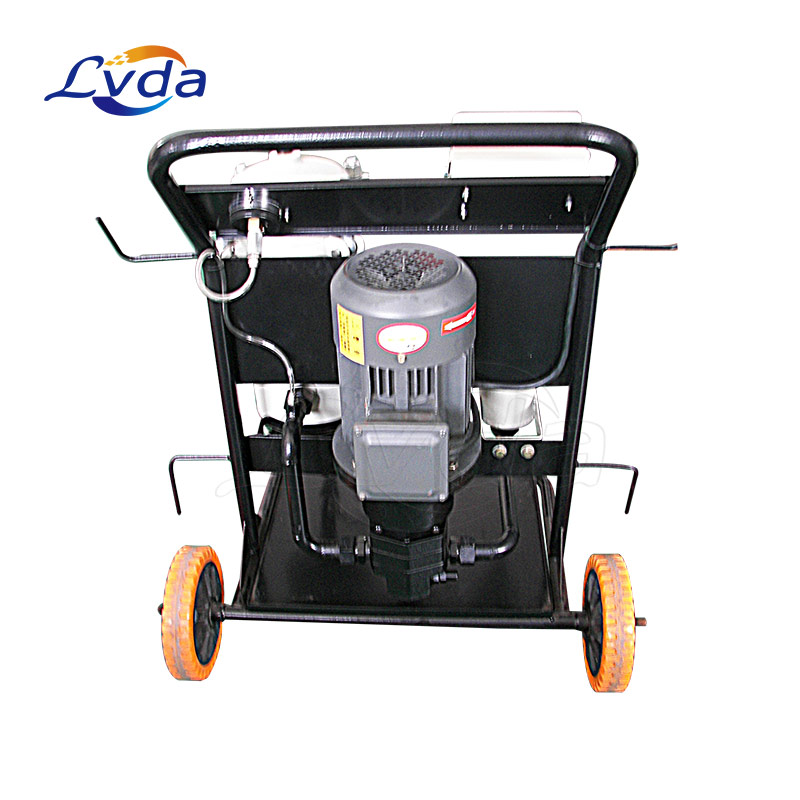

Mobile oil and fuel filtration units
All advantages of our filter systems but mobile!
Our mobile oil and fuel filtration units can be used anywhere
Our mobile oil and fuel filtration units are the standard filters but for mobile use. The mobile units are of very high quality and very reliable. They serve to purify the fuel or oil, keep it clean and make it 98% pure. The systems are on a cart, making them easy to move. In addition, they are very easy to maintain and operate. A cheap and mobile solution for cleaning your oil tank, your lubircation systems or your machine oils!
Parameters
| Model |
AOP-B25
-*/** |
A0P-B32
-*/** |
A0P-B40
-*/** |
A0P-B50
-*/** |
A0P-B63
-*/** |
A0P-B100
-*/** |
A0P-B150
-*/** |
| Rated flow(L /min) |
25 |
32 |
40 |
50 |
63 |
100 |
150 |
| Rated pressure(MPa) |
0.6 |
| Mpa(MPa) |
≤0.02 |
| Coarse filter precision(μm) |
100 |
| Grade 1 filter rating(μm) |
10、20、40 |
| Grade 2 filter rating(μm) |
3、5、 10、S-W |
| Differential pressure |
0.2Mpa |
| Working temperature(°C) |
5-80 |
Recommended viscosity(cSt) |
10- 160 |
Voltage(V) |
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.55 |
0.75 |
1.1 |
1.1 |
1.5
|
2.2
|
3.0
|
| Weight(kg) |
46
|
78
|
90
|
96
|
102
|
120
|
160
|
| Dimensions(mm) |
520x350 x950
|
520 x350x950
|
720x 680 x 1020
|
720 x<680 x 1020
|
720 x 680x 1020
|
720x 750x 1020
|
720x750x 122
|
This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.
The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.
The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
The mobile oil and fuel filtration units are mainly used for acute problems.
Contaminated fuel bunkered
bacteria in the fuel
Too many ppm water in fuel
Chips or other small and very small parts must be filtered out
Our mobile oil and fuel filter systems can also be made customizablely.
Applications
*Filter new oil
*Filter the oil in use
*Fill in and filter new oil
*Bypass filtration of hydraulic lubrication system
*Metallurgy, mechanical oilfield, chemical, mining, electric power, transportation, manufacturing and other industries purify hydraulic oil, hydraulic transmission oil, gear oil, compressor oil, refrigeration oil, heat treatment oil, diesel oil, heat transfer oil, coking oil, etc.
