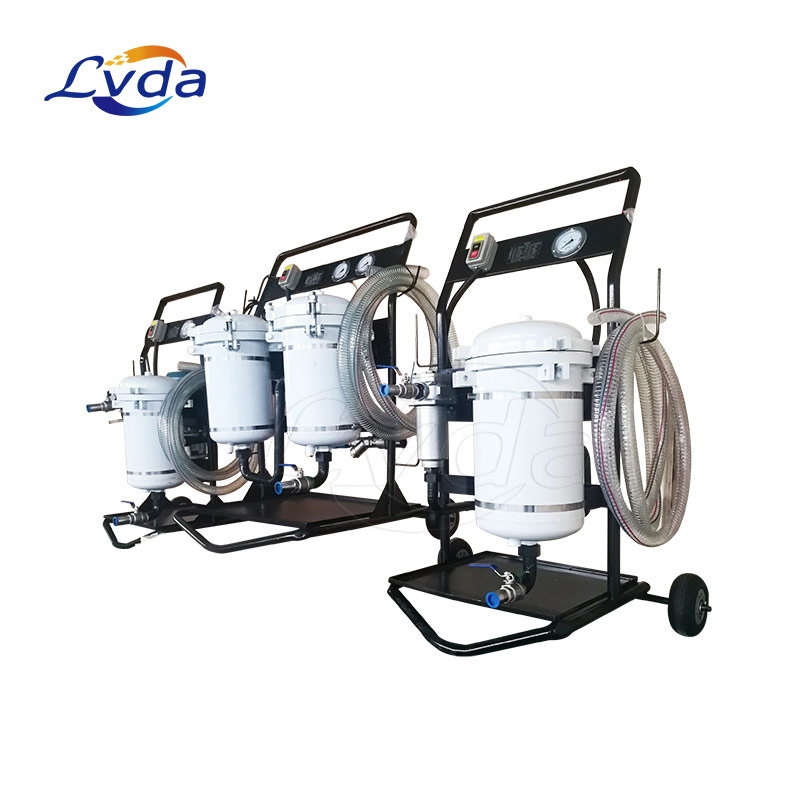

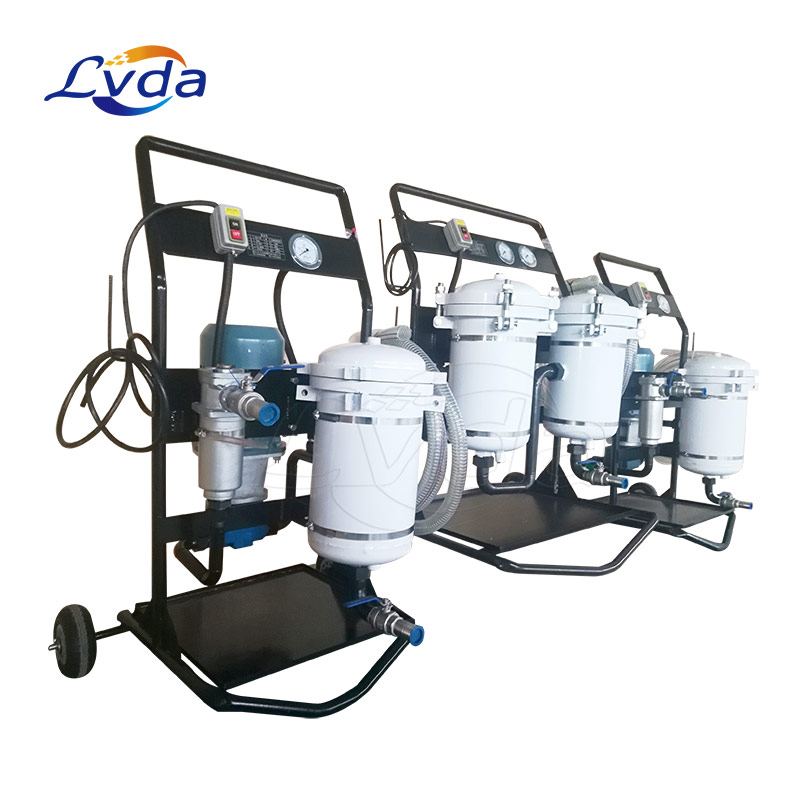

Compact bypass filtration systems
Compact bypass filtration systems (fixed or movable) equipped with housings and high capacity filter elements for removing dirt and water from oil in a reliable and economical way. The filtration systems have been developed to perform on-site preventive maintenance on various machines and installations.
Reduce downtime and lower labor costs
Components in modern efficient machines provide increased productivity, which can be achieved through clean oil, an important part of maintenance.
Extend the life of your oil
Many lubricating and hydraulic oils are developed for high quality standards by adding additives. In clean systems, the reserve of additives is preserved and the oil can be used for a long period of time.
Reduce used oil disposal problems
Estimates of the amount of available mineral oils speak of less than 40 years! Extending the life of your lubricating and hydraulic oil is essential for the sustainable use of these valuable raw materials.
Parameters
| Model |
AOP-B25
-*/** |
A0P-B32
-*/** |
A0P-B40
-*/** |
A0P-B50
-*/** |
A0P-B63
-*/** |
A0P-B100
-*/** |
A0P-B150
-*/** |
| Rated flow(L /min) |
25 |
32 |
40 |
50 |
63 |
100 |
150 |
| Rated pressure(MPa) |
0.6 |
| Mpa(MPa) |
≤0.02 |
| Coarse filter precision(μm) |
100 |
| Grade 1 filter rating(μm) |
10、20、40 |
| Grade 2 filter rating(μm) |
3、5、 10、S-W |
| Differential pressure |
0.2Mpa |
| Working temperature(°C) |
5-80 |
Recommended viscosity(cSt) |
10- 160 |
Voltage(V) |
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.55 |
0.75 |
1.1 |
1.1 |
1.5
|
2.2
|
3.0
|
| Weight(kg) |
46
|
78
|
90
|
96
|
102
|
120
|
160
|
| Dimensions(mm) |
520x350 x950
|
520 x350x950
|
720x 680 x 1020
|
720 x<680 x 1020
|
720 x 680x 1020
|
720x 750x 1020
|
720x750x 122
|
This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.
The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.
The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
1. Precise filtration system, multi-stage filters, step by step encryption, accommodate large amount of pollutants,effectively remove the mechanical impurities from oil , high filtration precision.
2. Reliable filter, resistant to acid,alkali,high temperature; good mechanical strength; long service life.
3. Small size, light weight; low cost; wide application; no pollution; easy and flexible operation.
4. Stages of cartridge filter (standard design is three stages, four,five,six and more stages availabe), customizable
5. Body material of machine (mild steel or stainless steel)
6. Filter element (mild mesh or stainless steel mesh)
Applications
Our compact bypass filtration systems are widely used in machinery manufacturing, oil production, construction hydraulics, power equipment, lifting and transportation machinery, machine tool lubrication, injection molding, metallurgy, chemical equipment, and agricultural machinery. Diesel oil, hydraulic oil and other industrial oils are purified and filtered.
