Product Details
Intelligent moveable oil filtrating device
Our Intelligent moveable oil filtrating device is a compact, self-contained filtration unit which has all of the features of a standard moveable oil purifier has, but with the added benefit of a fitted laser particle counter. It is ideal for applications where on-site filtration results require verification.
Our Intelligent moveable oil filtrating device gives real flexibility while at the same time offering the user real-time particle counts and water content in percent saturation.
The biggest adantage of this intelligent moveable oil filtrating device is high oil filter accuracy, reliable performance, compact structure, beautiful appearance and flexible movement, easy to use and maintain. Users can freely choose according to their needs. As long as the filter element of different precision is exchanged, the use requirements can be met.
The intelligent moveable oil filtrating device used for infusion or regular filtration of the oil in the hydraulic system, static pressure system, lubrication system and various oil systems. It also has a certain economic effect on dirty oil recovery. It is an ideal energy-saving device.
The fine oil filter truck only filters out impurities in the oil. It has no effect on the indicators of the oil.
Parameters
| Model |
AOP-B25
-*/** |
A0P-B32
-*/** |
A0P-B40
-*/** |
A0P-B50
-*/** |
A0P-B63
-*/** |
A0P-B100
-*/** |
A0P-B150
-*/** |
| Rated flow(L /min) |
25 |
32 |
40 |
50 |
63 |
100 |
150 |
| Rated pressure(MPa) |
0.6 |
| Mpa(MPa) |
≤0.02 |
| Coarse filter precision(μm) |
100 |
| Grade 1 filter rating(μm) |
10、20、40 |
| Grade 2 filter rating(μm) |
3、5、 10、S-W |
| Differential pressure |
0.2Mpa |
| Working temperature(°C) |
5-80 |
Recommended viscosity(cSt) |
10- 160 |
Voltage(V) |
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.55 |
0.75 |
1.1 |
1.1 |
1.5
|
2.2
|
3.0
|
| Weight(kg) |
46
|
78
|
90
|
96
|
102
|
120
|
160
|
| Dimensions(mm) |
520x350 x950
|
520 x350x950
|
720x 680 x 1020
|
720 x<680 x 1020
|
720 x 680x 1020
|
720x 750x 1020
|
720x750x 122
|

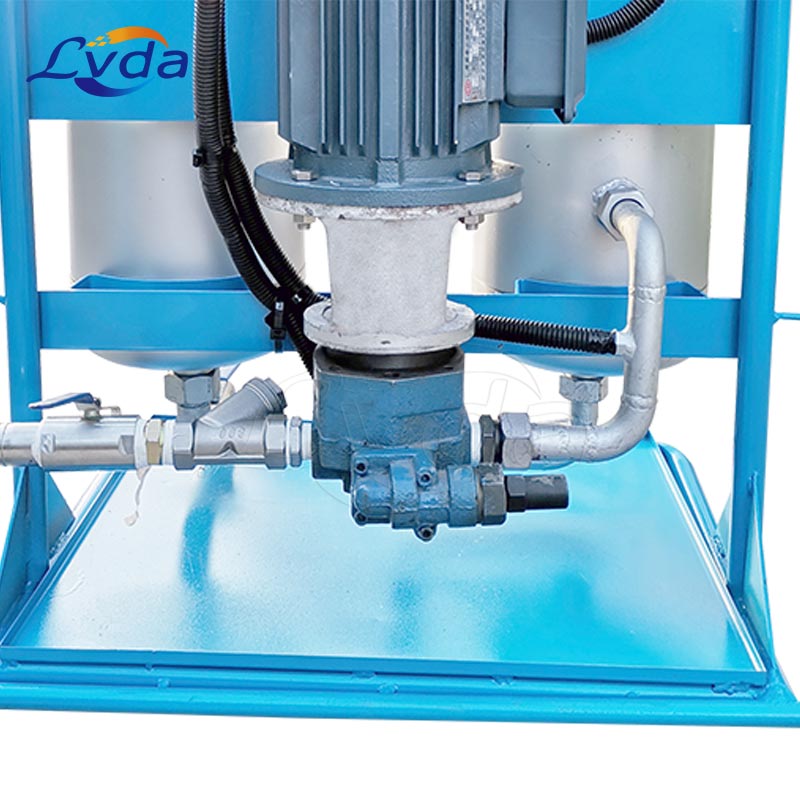

This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.
The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.

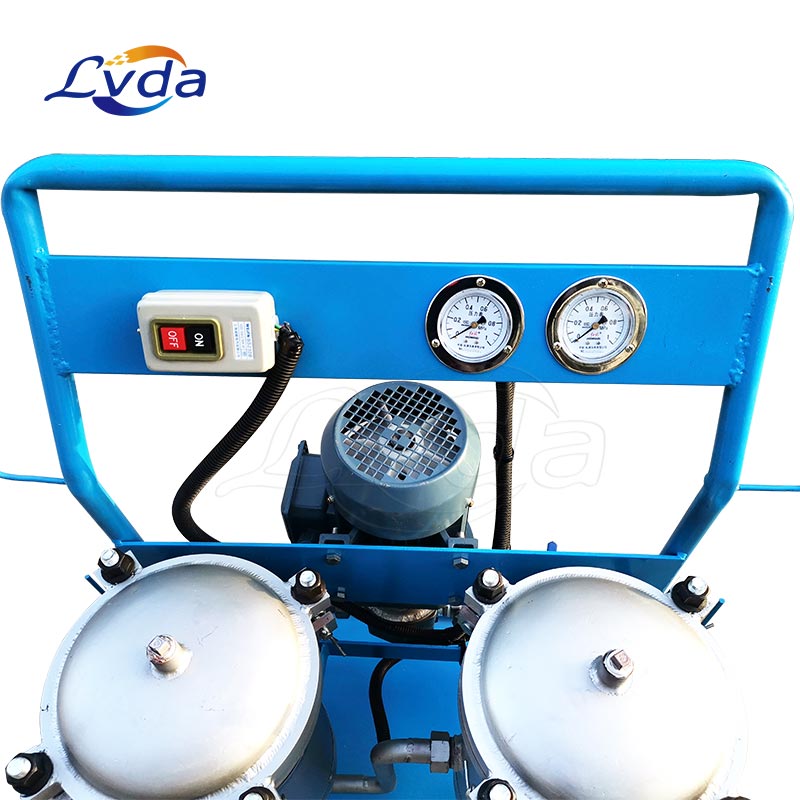

The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
This intelligent moveable oil filtrating device can move around for on-site oil filtration job, easy and steady for transport.
It is completely water proof, dust proof, it can protect the machine not to be damaged by raining weather, or in other bad circumstance use.
Flow rate is adjustable
Two housings fitted offering the possibility of staged filtration
A range of element micron ratings available
Multiple power supply options available
Equipped with a laser particle monitor, LED display
Off-line contamination control
High volume dirt holding ability
Clean up oil to <1-micron absolute
Rugged frame with integral drip tray
Display particle counts in real time?
Small footprint
Easy to transport
Increased dirt holding capacity
Staged filtration possibilities to reduce element change out
Flexible filter element selection – water removal option available
Low-cost replacement cartridges
Easy element changeover
Perfect for replenishing systems with filtered oil, end of production line flushing and emptying waste oil quickly
By trending filtration results in real time, you will know when you oil is clean and when you can move onto the next machine.
Clean and dry oil ready for use with required
Recover and re-use contaminated oils
Applications
For filtering fluid in a hydraulic reservoir periodically as a supplement to continuous filtration system filters.
To clean-up your hydraulic system before restarting following a component failure.
Providing clean fluid when re-filling and adding fluid to the system reservoir.
For application in many industries including steel production, machine tools, automotive, etc..
It is designed especially for purifying various industrial lubricating oils such as hydraulic oil, gear oil, coolant oil, compressor oil, etc..
