Product Details
Mobile oil life extender filtration units
Our mobile oil life extender filtration units are customer specific oil filtration and cooling units for extending oil life and lowering operating costs.
Description
A range of Offline Filtration and Cooling Units (Oil Life Extenders), specifically designed and custom designed with the aim of extending oil life in situations where excessive heat is an issue.
When hydraulic oil or lubricating oil becomes extremely hot, the mobile oil life extender filtration units will significantly extend the life of the oil.
The mobile oil life extender filtration units follow the rule of Arrhenius:
For every temperature increase of 10°C above 40°C, the life of an oil is halved!
Several case studies have shown that oil changes can be postponed from once a month to once every 24 months!
The main advantage is that the machines experienced less wear, resulting in less downtime and lower maintenance costs.
Parameters
| Model |
AOP-B25
-*/** |
A0P-B32
-*/** |
A0P-B40
-*/** |
A0P-B50
-*/** |
A0P-B63
-*/** |
A0P-B100
-*/** |
A0P-B150
-*/** |
| Rated flow(L /min) |
25 |
32 |
40 |
50 |
63 |
100 |
150 |
| Rated pressure(MPa) |
0.6 |
| Mpa(MPa) |
≤0.02 |
| Coarse filter precision(μm) |
100 |
| Grade 1 filter rating(μm) |
10、20、40 |
| Grade 2 filter rating(μm) |
3、5、 10、S-W |
| Differential pressure |
0.2Mpa |
| Working temperature(°C) |
5-80 |
Recommended viscosity(cSt) |
10- 160 |
Voltage(V) |
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.55 |
0.75 |
1.1 |
1.1 |
1.5
|
2.2
|
3.0
|
| Weight(kg) |
46
|
78
|
90
|
96
|
102
|
120
|
160
|
| Dimensions(mm) |
520x350 x950
|
520 x350x950
|
720x 680 x 1020
|
720 x<680 x 1020
|
720 x 680x 1020
|
720x 750x 1020
|
720x750x 122
|
This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.

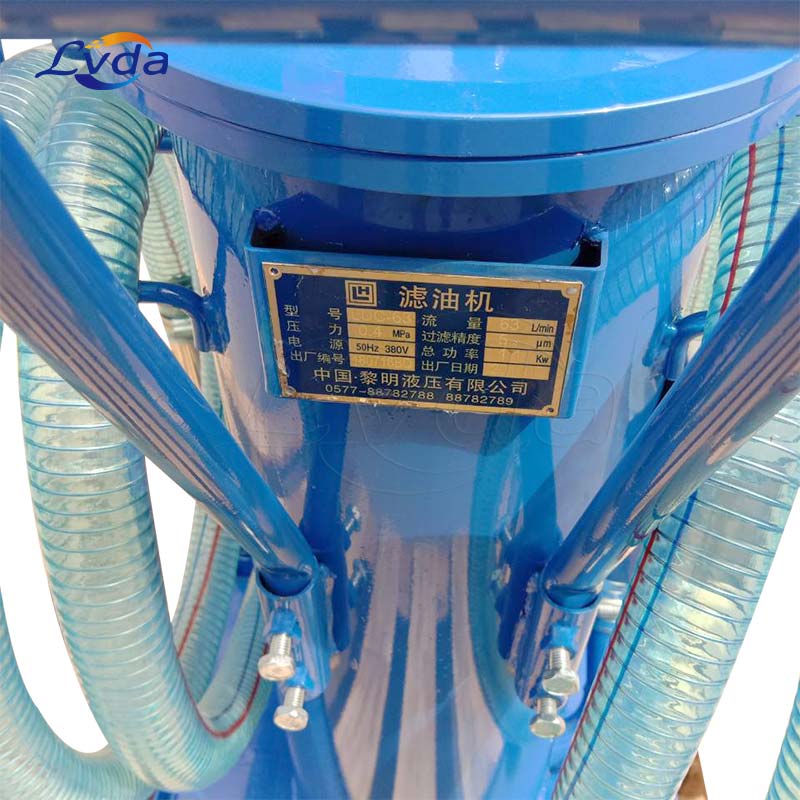

The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.

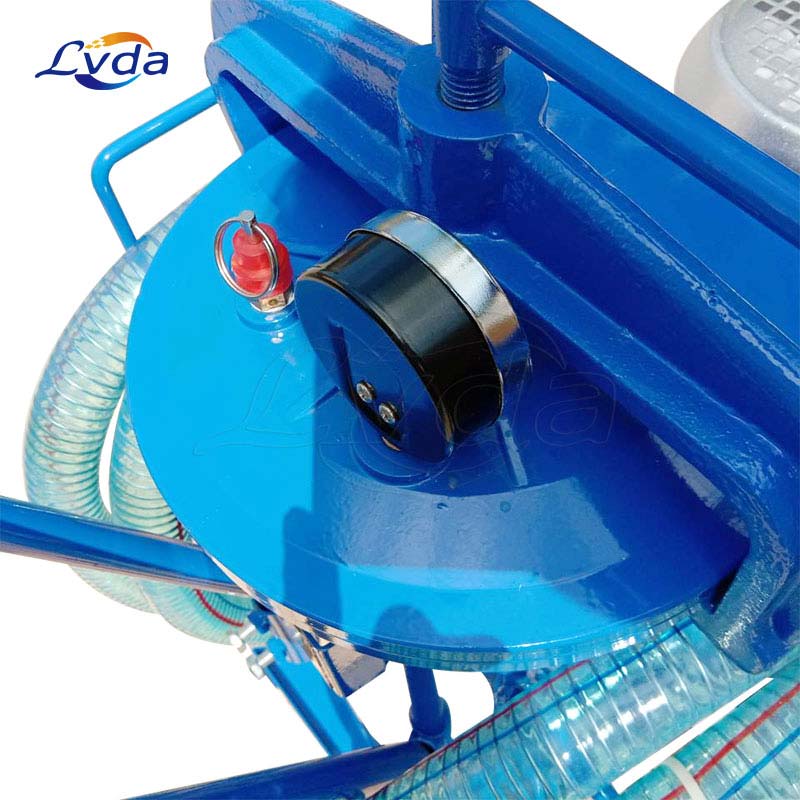

The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
Different flow/flow rates
Both low and high viscosity oils
Temperature control for the output oil temperature
Choice of absolute filtration, from 1 to 25 microns
Water removal options
Helps prevent varnish formation due to excessive heat
Applications
Our Mobile oil life extender filtration units are specially used for big impurities and tiny particles removal from used oil. It is composed of precise filtering devices and many other parts. This machine can also serve as precise filtering and oiling.
Applicable oil: lubricant oil, hydraulic oil, turbine oil, etc.
