Product Details
Intelligent portable oil filtration system with particle counter
Our portable filtration system is a compact, self-contained filtration unit which has all of the features of a standard moveable oil purifier has, but with the added benefit of a fitted laser particle counter. It is ideal for applications where on-site filtration results require verification.
Our gives real flexibility while at the same time offering the user real-time particle counts and water content in percent saturation.
Fitted with the same dual-filter design and equipped with high efficiency and high capacity filter elements which are capable of removing particulate contaminants conveniently and economically. Available in either 9” or 14”, it boasts a large dirt holding capacity and the option of staged filtration, on top of this it offers a flow rate of 18 or 45L/min alongside flexible filter element selection to obtain a cleanliness level down to ISO cleanliness code 14/12/9-13/11/8.
All of the heavy duty filtration capabilities, having more intelligence.
Parameters
| Model |
AOP-B25
-*/** |
A0P-B32
-*/** |
A0P-B40
-*/** |
A0P-B50
-*/** |
A0P-B63
-*/** |
A0P-B100
-*/** |
A0P-B150
-*/** |
| Rated flow(L /min) |
25 |
32 |
40 |
50 |
63 |
100 |
150 |
| Rated pressure(MPa) |
0.6 |
| Mpa(MPa) |
≤0.02 |
| Coarse filter precision(μm) |
100 |
| Grade 1 filter rating(μm) |
10、20、40 |
| Grade 2 filter rating(μm) |
3、5、 10、S-W |
| Differential pressure |
0.2Mpa |
| Working temperature(°C) |
5-80 |
Recommended viscosity(cSt) |
10- 160 |
Voltage(V) |
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.55 |
0.75 |
1.1 |
1.1 |
1.5
|
2.2
|
3.0
|
| Weight(kg) |
46
|
78
|
90
|
96
|
102
|
120
|
160
|
| Dimensions(mm) |
520x350 x950
|
520 x350x950
|
720x 680 x 1020
|
720 x<680 x 1020
|
720 x 680x 1020
|
720x 750x 1020
|
720x750x 122
|

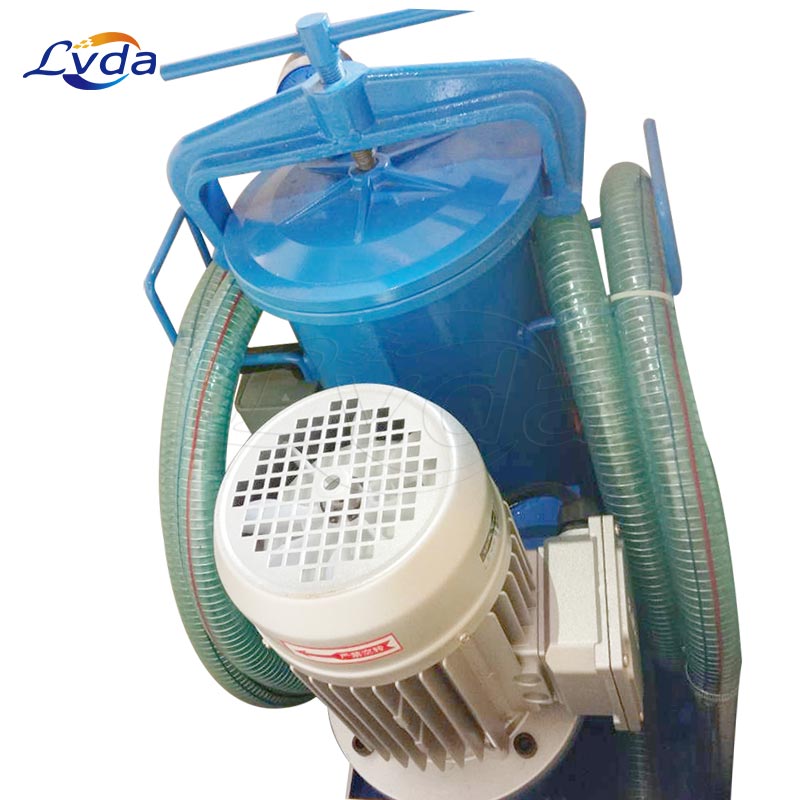

This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.
The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.

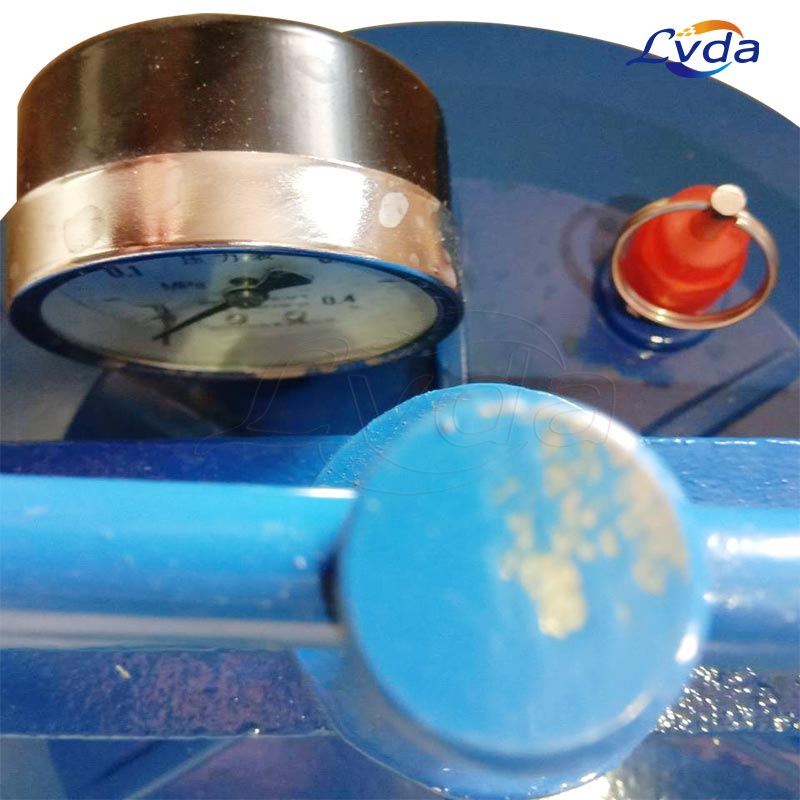

The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
Flow rate options between 15 or 35 l/min
Two housings fitted offering the possibility of staged filtration
A range of element micron ratings available
Multiple power supply options available
Equipped with a laser particle monitor, LED display
Off-line contamination control
High volume dirt holding to deliver ISO cleanliness codes of 14/12/9 - 13/11/8
Clean up oil to <1-micron absolute
Rugged frame with integral drip tray
Display particle counts in real time?
Small footprint
Easy to transport
Increased dirt holding capacity
Staged filtration possibilities to reduce element change out
Flexible filter element selection – water removal option available
Low-cost replacement cartridges
Easy element changeover
Perfect for replenishing systems with filtered oil, end of production line flushing and emptying waste oil quickly
By trending filtration results in real time, you will know when you oil is clean and when you can move onto the next machine.
Clean and dry oil ready for use with required
Recover and re-use contaminated oils
Applications
For filtering fluid in a hydraulic reservoir periodically as a supplement to continuous filtration system filters.
To clean-up your hydraulic system before restarting following a component failure.
Providing clean fluid when re-filling and adding fluid to the system reservoir.
To reclaim contaminated fluid.
Pre-filling and cleaning up hydraulic systems on new or re-built machinery and equipment.
For offline contamination of hydraulic systems.
To empty waste fluid quickly.
For application in many industries including steel production, machine tools, automotive, etc..
