Mobile flushing unit - oil filtration & gear flushing for mining uses
Our mobile flushing unit is used for filtration and flushing of gearboxes in rough environments, especially within the mining sector, such as truck shops, service sites etc.
To optimise the filtration effect, it automatically adjusts the flow through the filters based on oil temperature and viscosity, and a built in oil contamination monitor makes it possible to monitor the oil cleanliness level during the entire filtration and flushing process.
Parameters
| Model |
AOP-B25
-*/** |
A0P-B32
-*/** |
A0P-B40
-*/** |
A0P-B50
-*/** |
A0P-B63
-*/** |
A0P-B100
-*/** |
A0P-B150
-*/** |
| Rated flow(L /min) |
25 |
32 |
40 |
50 |
63 |
100 |
150 |
| Rated pressure(MPa) |
0.6 |
| Mpa(MPa) |
≤0.02 |
| Coarse filter precision(μm) |
100 |
| Grade 1 filter rating(μm) |
10、20、40 |
| Grade 2 filter rating(μm) |
3、5、 10、S-W |
| Differential pressure |
0.2Mpa |
| Working temperature(°C) |
5-80 |
Recommended viscosity(cSt) |
10- 160 |
Voltage(V) |
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.55 |
0.75 |
1.1 |
1.1 |
1.5
|
2.2
|
3.0
|
| Weight(kg) |
46
|
78
|
90
|
96
|
102
|
120
|
160
|
| Dimensions(mm) |
520x350 x950
|
520 x350x950
|
720x 680 x 1020
|
720 x<680 x 1020
|
720 x 680x 1020
|
720x 750x 1020
|
720x750x 122
|

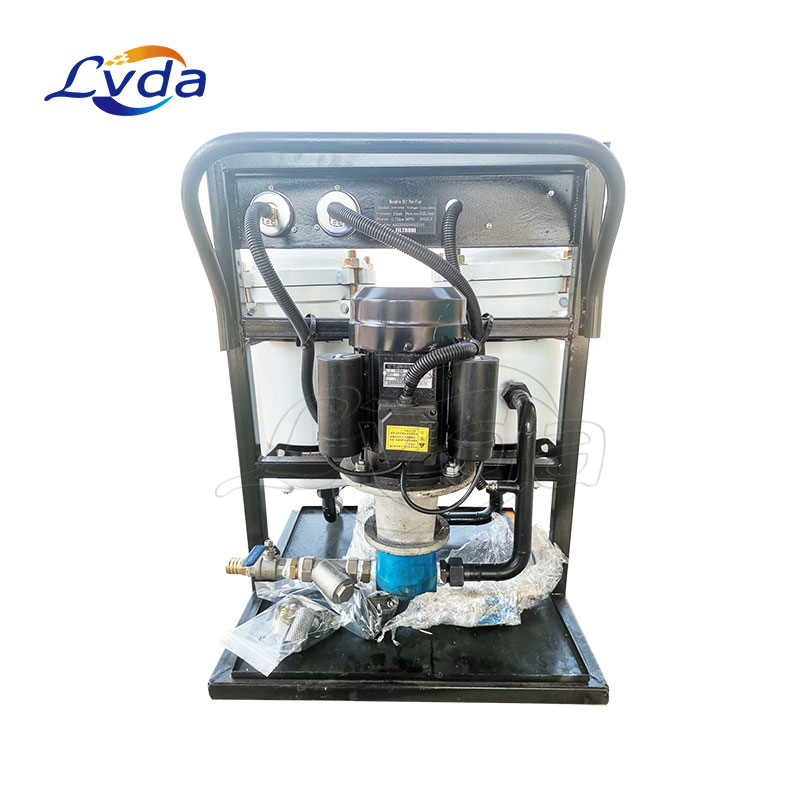

This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.
The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.

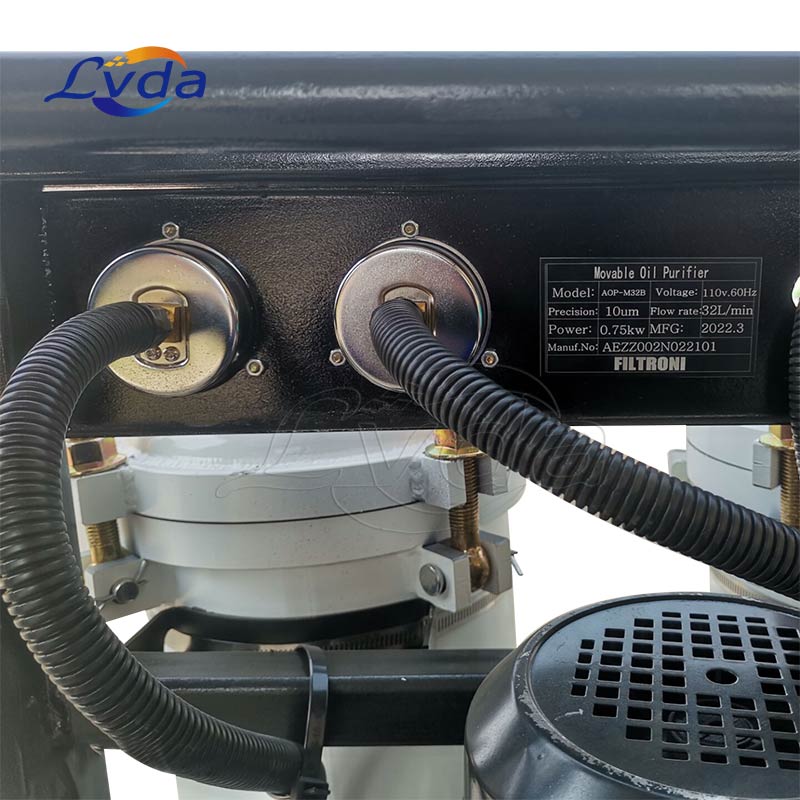

The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
Maximize fleet availability
Avoid unexpected and expensive breakdowns
Reduce maintenance costs - less component wear
Avoid oil changes and save the environment
Monitoring of oil cleanliness level
Efficient maintenance service
Fast flushing – 30 min. up to a few hours
User-friendly and easy to operate
The unit is constructed to handle high viscous gear oils even at very low temperatures. It is equipped with wheels for high mobility, integrated tank, heaters and several other unique features to handle this challenging application.
Applications
This moveable oil purifier is used for gear oil purifying mainly.
Also, it is widely used in low-viscosity mechanical lubricating oil such as hydraulic oil, turbine oil and lubricating oil.
