Product Details
Oil filter trolley
Main body material: oil circuit stainless steel
Working principle: high-precision filter element
The oil filter trolley includes a primary filter, a vacuum evaporation tank, an oil pump, a filter device, a condenser (ie, a condenser) and a vacuum pump. Under the action of pressure, the impure oil enters the vacuum evaporation tank through the primary filter. After the oil is heated to 60 to 70 degrees, it is sprayed into the vacuum chamber and becomes fine oil droplets. The water in the oil evaporates quickly into water vapor, which enters the condenser and is condensed and discharged. The uncondensed water vapour is discharged into by the vacuum pump. The oil that is collected at the bottom of the vacuum evaporation tank and has been evaporated and dehydrated is sent to the filter device by the oil pump to filter out the solid impurities in the oil and further absorb a small amount of water. The vacuum oil filter can effectively improve the effect of removing water in the oil, and is suitable for the purification of high-voltage electrical appliances.
Our oil filter trolley adopts environmentally friendly filter elements, which can perform ultra-fine filtration of solid particles on a variety of liquid media in various occasions. Can be used in hydraulic, lubrication and petrochemical industries. Our oil filter trolley is not only suitable for various lubricating oils such as mineral oil, water glycol, emulsion, high water base, etc.,the oil filter trolley has redesigned and adjusted the overall structure, on the basis of maintaining the basic characteristics of the original product, The overall strength and layout have been improved, and a variety of functions have been added, greatly improving the safety and practicability of the product.
Parameters
| Model |
AOP-B25
-*/**
|
A0P-B32
-*/**
|
A0P-B40
-*/**
|
A0P-B50
-*/**
|
A0P-B63
-*/**
|
A0P-B100
-*/**
|
A0P-B150
-*/**
|
| Rated flow(L /min) |
25 |
32 |
40
|
50 |
63 |
100 |
150 |
| Rated pressure(MPa) |
0.6 |
| Mpa(MPa) |
≤0.02 |
| Coarse filter precision(μm) |
100 |
| Grade 1 filter rating(μm) |
10、20、40 |
| Grade 2 filter rating(μm) |
3、5、 10、S-W |
| Differential pressure |
0.2Mpa |
| Working temperature(°C) |
5-80 |
|
Recommended viscosity(cSt)
|
10- 160 |
|
Voltage(V)
|
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.55 |
0.75 |
1.1 |
1.1 |
1.5 |
2.2 |
3.0 |
| Weight(kg) |
46 |
78 |
90 |
96 |
102 |
120 |
160 |
| Dimensions(mm) |
520x350 x950 |
520 x350x950 |
720x 680 x 1020 |
720 x<680 x 1020 |
720 x 680x 1020 |
720x 750x 1020 |
720x750x 122 |
This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.

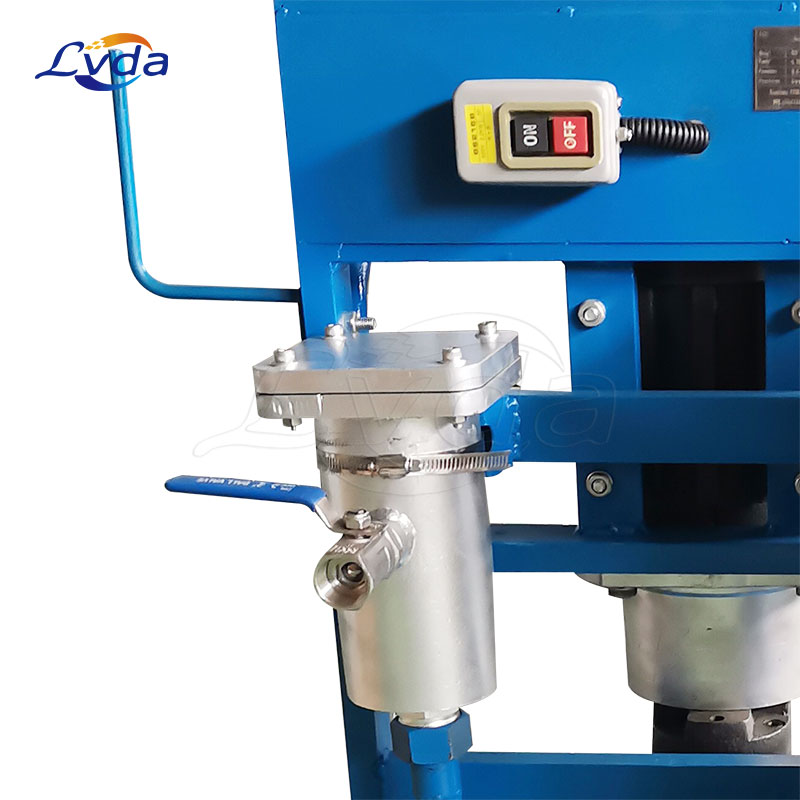

The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.

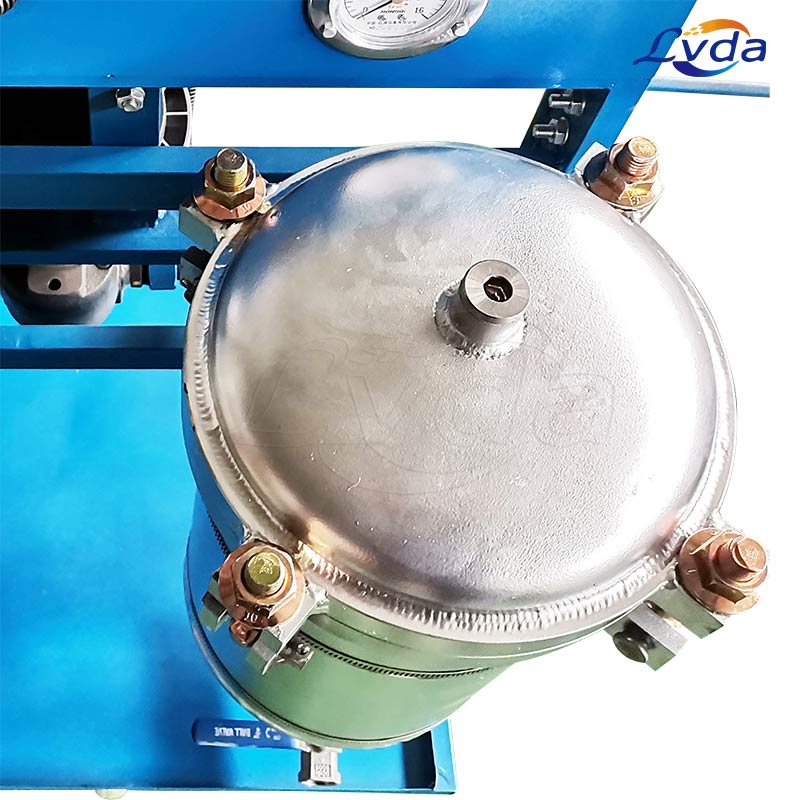

The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.
The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
●It can refuel and pump oil in the lubrication system from a long distance and with high lift, and can also filter impurities online.
●Equipped with filter element replacement instruction and filter element saturation shutdown device to prevent the filter element from being damaged due to overpressure.
●The speed of filtering out solid pollutants is fast, and oil filter paper is not used.
●Equipped with leakage and overload shutdown device to protect the motor.
●Configure automatic filtering function to realize online filtering and purification.
●Filter precision, filter stage, there are various specifications for selection.
●Easy to operate and maintain.
●Light and flexible, easy to move.
●The equipment is made of carbon steel and stainless steel, and the color of the machine can be customized according to customer requirements.
●According to the degree of oil pollution, 1-6 filters can be customized.
●Oil pumps, motors, filter elements, electrical components and instruments are available from domestic brands, joint venture brands and international imported brands.
●According to the user's needs, it can be equipped with PLC intelligent control, touch screen operation, and dynamic display.
●Equipment styles include fixed, open, frame, semi-enclosed, and fully enclosed.
Applications
Oil filter trolley is widely used, mainly used for filtration, transportation and filling of lubricating oil, hydraulic oil, mechanical oil, turbine oil, water glycol, fuel oil, insulating oil and other liquid oils and organic solvents. Filtration precision and filtration stages can be selected according to liquids with different viscosities.
Applicable oil: lubricating oil, hydraulic oil, turbine oil, gear oil, etc.
