Gear lube oil filter trolley purifier
This series of gear lube oil filter trolley purifier has the advantages of reliable performance, compact structure, beautiful appearance, convenient maintenance and use, high precision and low noise. 5, 10, 20, and 30 μm can be freely selected, and the filtering effect of different precision can be achieved by changing the filter element of different filtering precision. No effect.
In addition, our company is a technology enterprise integrating R&D, production, sales and service. The main supply products are filters, filter elements, oil filter cars, and other filtration equipment.
Parameters
| Model |
AOP-B25
-*/**
|
A0P-B32
-*/**
|
A0P-B40
-*/**
|
A0P-B50
-*/**
|
A0P-B63
-*/**
|
A0P-B100
-*/**
|
A0P-B150
-*/**
|
| Rated flow(L /min) |
25 |
32 |
40
|
50 |
63 |
100 |
150 |
| Rated pressure(MPa) |
0.6 |
| Mpa(MPa) |
≤0.02 |
| Coarse filter precision(μm) |
100 |
| Grade 1 filter rating(μm) |
10、20、40 |
| Grade 2 filter rating(μm) |
3、5、 10、S-W |
| Differential pressure |
0.2Mpa |
| Working temperature(°C) |
5-80 |
|
Recommended viscosity(cSt)
|
10- 160 |
|
Voltage(V)
|
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.55 |
0.75 |
1.1 |
1.1 |
1.5 |
2.2 |
3.0 |
| Weight(kg) |
46 |
78 |
90 |
96 |
102 |
120 |
160 |
| Dimensions(mm) |
520x350 x950 |
520 x350x950 |
720x 680 x 1020 |
720 x<680 x 1020 |
720 x 680x 1020 |
720x 750x 1020 |
720x750x 122 |

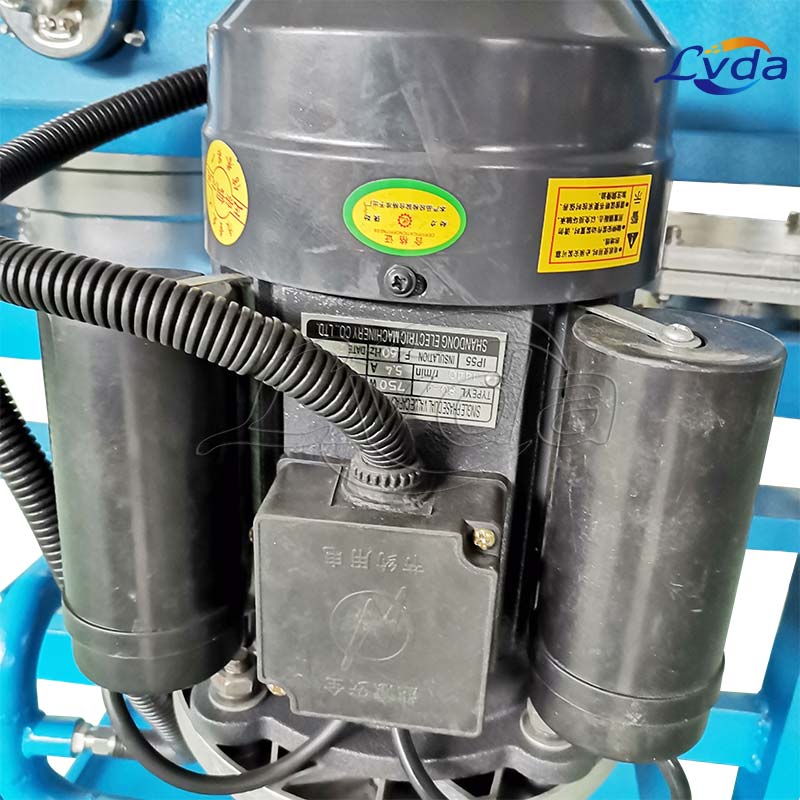

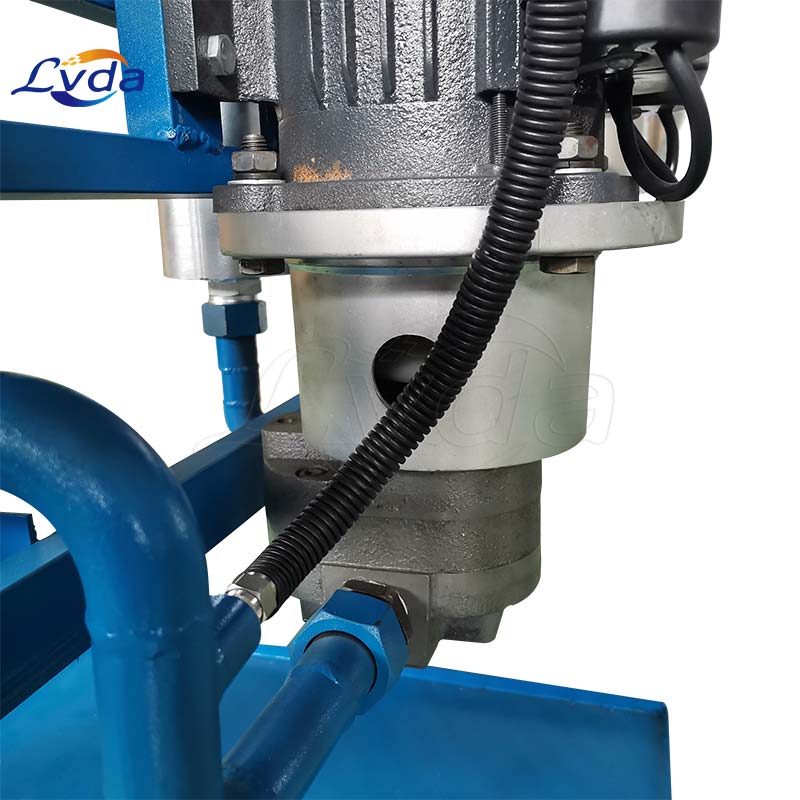

This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.
The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.
The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
-This gear lube oil filter trolley purifier adopts two-stage vacuum separation, the liquid level between the stages is automatically balanced, and the pressure difference between the stages is formed, and its performance is better than that of a single-stage vacuum oil filter. Efficient dehydration and degassing system, using three-dimensional three-dimensional flash evaporation technology, high pumping speed, can quickly remove moisture, impurities, hydrocarbon compounds and other harmful components in the oil, and improve the flash point and compressive strength of insulating oil.
-The vacuum separation tank adopts stainless steel corrugated orifice folded cyclone degassing dehydration separation tower and high-efficiency atomizer, which increases the separation area, makes the oil thin film and realizes three-dimensional evaporation, so as to obtain sufficient evaporation time and ensure a separation Excellent effect. The filtration system adopts the combination of stainless steel filter material and polymer material filter element to remove impurities, multi-stage filtration, step-by-step encryption, and different filtration precision can be selected according to needs.
-Advanced medium endothermic condensing system, automatic condensate separation device, automatic constant temperature control, automatic liquid level control, automatic defoaming control, automatic pressure protection and sophisticated configuration, ensure high-performance operation of the equipment, humanized design, low noise, Simple and safe operation.
-The whole machine is equipped with: electric leakage, overload, load shutdown device; phase sequence, phase loss protection function; safety shutdown control function; oil discharge system, vacuum system and heating system interlocking, etc. Avoid misoperation and prolong the service life of the equipment.
- High vacuum and high pumping speed, which can meet the needs of vacuum pumping and vacuum oiling of the transformer body at the installation or maintenance site, and at the same time complete the degassing and dehydration treatment of the transformer oil, which greatly shortens the oil treatment period.
Applications
1. Filtration of hydraulic lubrication system when refueling
2. Bypass filtration when the hydraulic lubrication system is working
3. Circulating filtration before the hydraulic lubrication system is put into operation
4. Access to the hydraulic lubrication system to comprehensively improve the cleanliness of the system
