With the rapid development of the hydraulic industry, higher requirements are put forward for the reliability of the hydraulic system. At present, about 70% of the failures in the hydraulic system are caused by the pollution of the oil. In order to control the pollution degree of the hydraulic system , in addition to installing an oil filter in the hydraulic system. The new oil injected into the system needs to be pre-filtered with an oil filter truck. At the same time, the oil filter truck can also be used to circulate and filter the hydraulic system to purify the system oil.
The biggest feature of waste gear oil cleaning / lube oil filtration moveable portable plant is high oil filtering accuracy, reliable performance, compact structure, beautiful appearance, flexible movement, convenient use and maintenance. The oil filter precision is 1, 3, 5, and 10 microns. Users can choose freely according to their needs. As long as the filter elements of different precisions are exchanged, the use requirements can be met.
It can also be used for perfusion or regular filtration of oil in hydraulic system, static pressure system, lubrication system and various oil systems. It also has a certain economic effect on dirty oil recovery. It is an ideal energy-saving device.
Waste gear oil cleaning / lube oil filtration moveable portable plant only filters out harmful impurities such as particulate matter and metal powder in the oil. It has no effect on the indicators of the oil.
Waste gear oil cleaning / lube oil filtration moveable portable plant adopts the method of physical filtration to filter the mechanical impurities and metal powders and other harmful substances in the oil, improve the cleanliness of the oil and prolong the service life of the oil. The working principle is: the oil passes through the coarse filter at the suction port to the oil pump and then passes through the fine filter at the outlet to complete the filtration process. The primary filter element adopts stainless steel corrugated filter element, which can be used repeatedly after cleaning, which reduces the operating cost and is more conducive to saving and reducing consumption.
Parameters
Model
AOP-B25
-*/**
A0P-B32
-*/**
A0P-B40
-*/**
A0P-B50
-*/**
A0P-B63
-*/**
A0P-B100
-*/**
A0P-B150
-*/**
Rated flow(L /min)
25
32
40
50
63
100
150
Rated pressure(MPa)
0.6
Mpa(MPa)
≤0.02
Coarse filter precision(μm)
100
Grade 1 filter rating(μm)
10、20、40
Grade 2 filter rating(μm)
3、5、 10、S-W
Differential pressure
0.2Mpa
Working temperature(°C)
5-80
Recommended viscosity(cSt)
10- 160
Voltage(V)
AC 380V(Three-phase)、50Hz
Motor power(kw)
0.55
0.75
1.1
1.1
1.5
2.2
3.0
Weight(kg)
46
78
90
96
102
120
160
Dimensions(mm)
520x350 x950
520 x350x950
720x 680 x 1020
720 x<680 x 1020
720 x 680x 1020
720x 750x 1020
720x750x 122

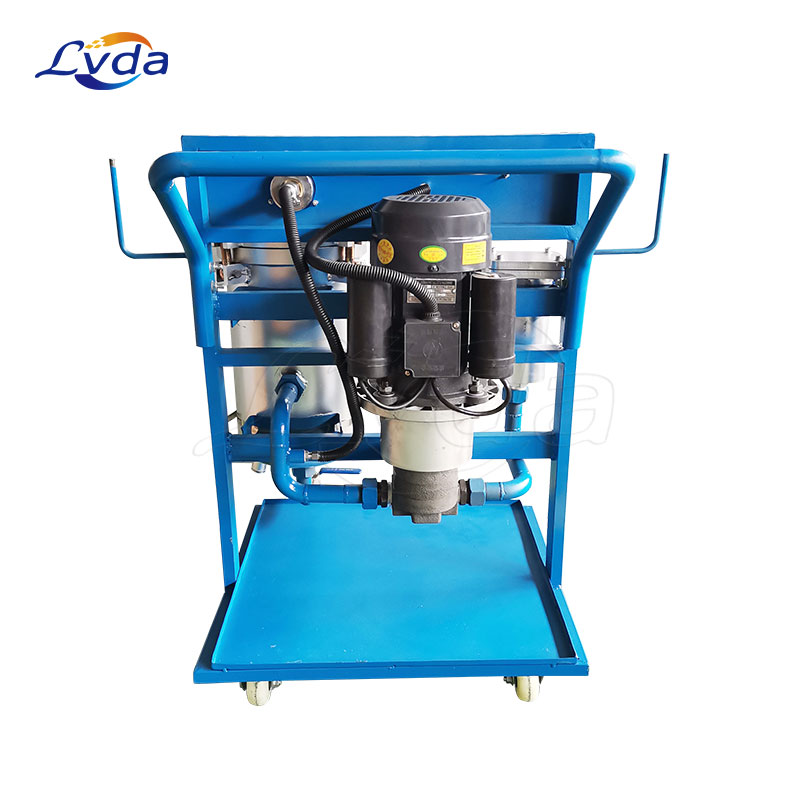

This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.

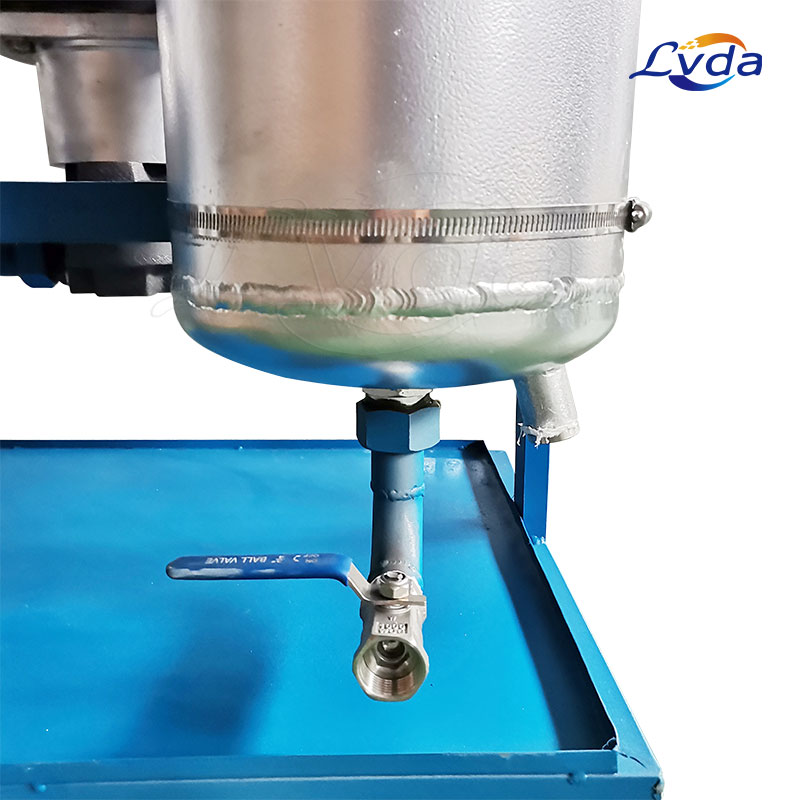

The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.
The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
1. This Waste gear oil cleaning / lube oil filtration moveable portable plant includes a special gear pump driven by a motor, which has the characteristics of low noise, strong self-priming ability, stable operation, compact structure, convenient use and maintenance, and low operating cost.
2. The high-pressure pipeline is equipped with overflow protection device, which can effectively protect the safety of the hydraulic system.
3. Adopt thermal relay protection to prevent motor damage caused by motor overload.
4. The oil suction port coarse filter protects the oil pump and prolongs the service life of the main filter.
5. There is a high-precision filter behind the pump, so that the oil can quickly reach a high degree of cleanliness.
6. The fine filter can choose different precision according to the different needs of users to achieve the desired effect.
7. The oil filter housing adopts a quick-opening structure, which can quickly and quickly open the upper cover and replace the filter element without any tools. The panel is equipped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the filter element during operation.
Applications
It is widely used in low-viscosity mechanical oils such as hydraulic oil, turbine oil and lubricating oil.
