Product Details
Lube oil cleaning device filter trolley
Due to long period usage of the systems, lube oils would be mixed and polluted with particles, impurities, water content and other waste residues which destroy the lube oil's functions. Therefore, periodic purification/filtration of lube oils is quite necessary and required. Our lube oil cleaning device filter trolley can do the purifying job, filtrating all kinds of oils for your equipments, devices and apparatuses in your production sites.
Parameters
| Model |
AOP-B25
-*/**
|
A0P-B32
-*/**
|
A0P-B40
-*/**
|
A0P-B50
-*/**
|
A0P-B63
-*/**
|
A0P-B100
-*/**
|
A0P-B150
-*/**
|
| Rated flow(L /min) |
25 |
32 |
40
|
50 |
63 |
100 |
150 |
| Rated pressure(MPa) |
0.6 |
| Mpa(MPa) |
≤0.02 |
| Coarse filter precision(μm) |
100 |
| Grade 1 filter rating(μm) |
10、20、40 |
| Grade 2 filter rating(μm) |
3、5、 10、S-W |
| Differential pressure |
0.2Mpa |
| Working temperature(°C) |
5-80 |
|
Recommended viscosity(cSt)
|
10- 160 |
|
Voltage(V)
|
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.55 |
0.75 |
1.1 |
1.1 |
1.5 |
2.2 |
3.0 |
| Weight(kg) |
46 |
78 |
90 |
96 |
102 |
120 |
160 |
| Dimensions(mm) |
520x350 x950 |
520 x350x950 |
720x 680 x 1020 |
720 x<680 x 1020 |
720 x 680x 1020 |
720x 750x 1020 |
720x750x 122 |

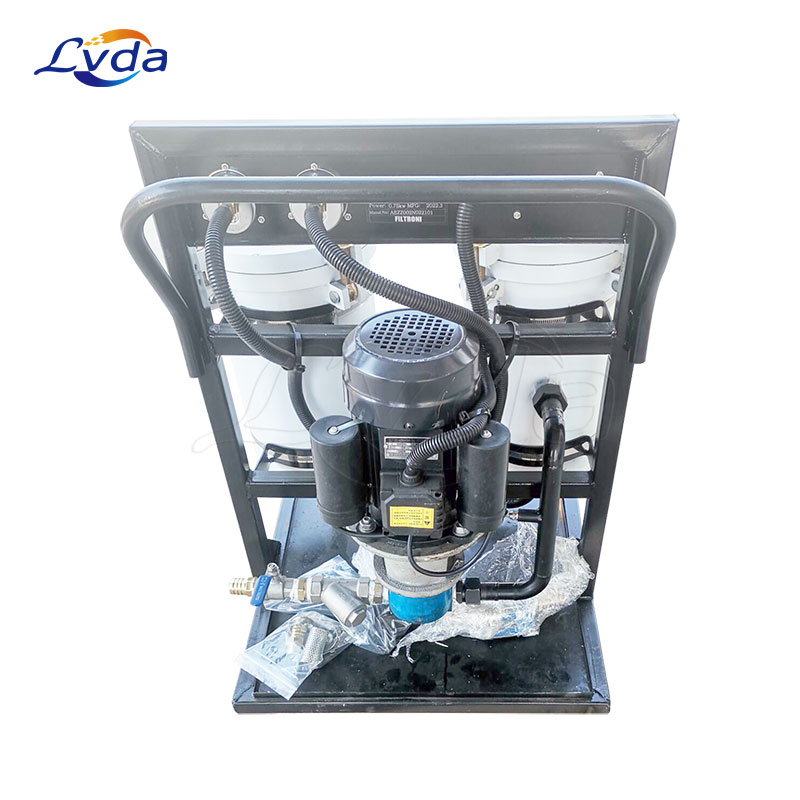

This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.

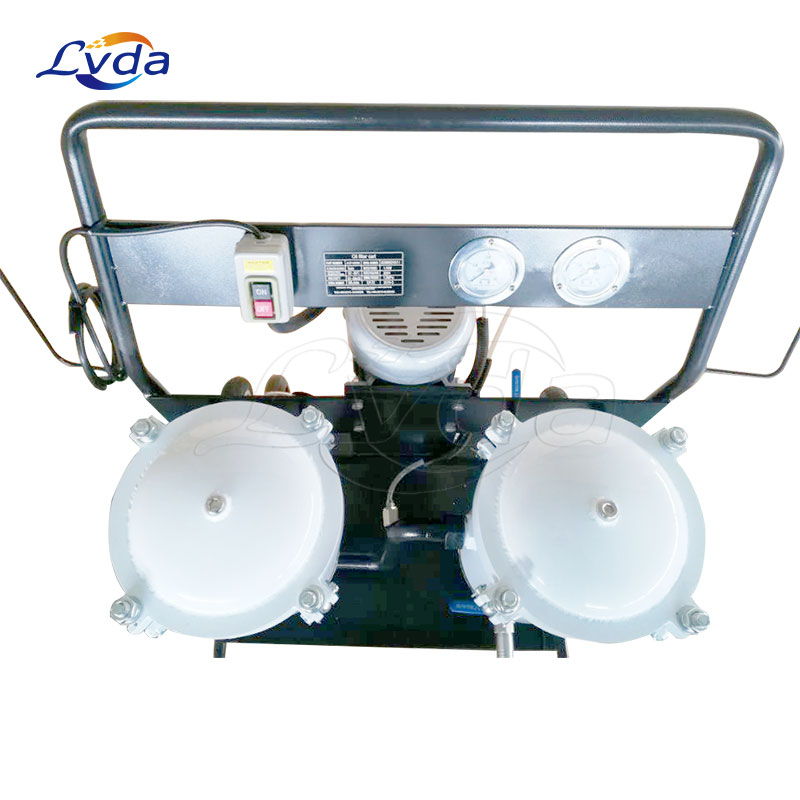

The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.
The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
Instructions provide on units
Efficient pumping system
High performance contamination absorption
Robust feed pump
Drip tray which is designed for stationary or reclined position
Instrument gauge panel
Suit for high viscosity Products
Compliance with Oceania standards
Mobile bypass filtration for hydraulic and lubricating systems
Flexible design which allows customization
Crane lift points
Easy of filter change and service
Pressure safety system
Custom designed units
Lower Installation and Maintenance Costs
Oil spill / drip tray
Heavy Duty trolley design
Oil Sampling facilities
Narrow unit profile for easier access to confined space
Pneumatic / solid tyres
Customization of color to conform to your site and fluid requirements
Applications
It is used to remove the free water and impurity from lube oil.
It is designed specially for purifying various industrial lubricating oils such as hydraulic oil, gear oil, coolant oil, compressor oil, etc...
