Product Details

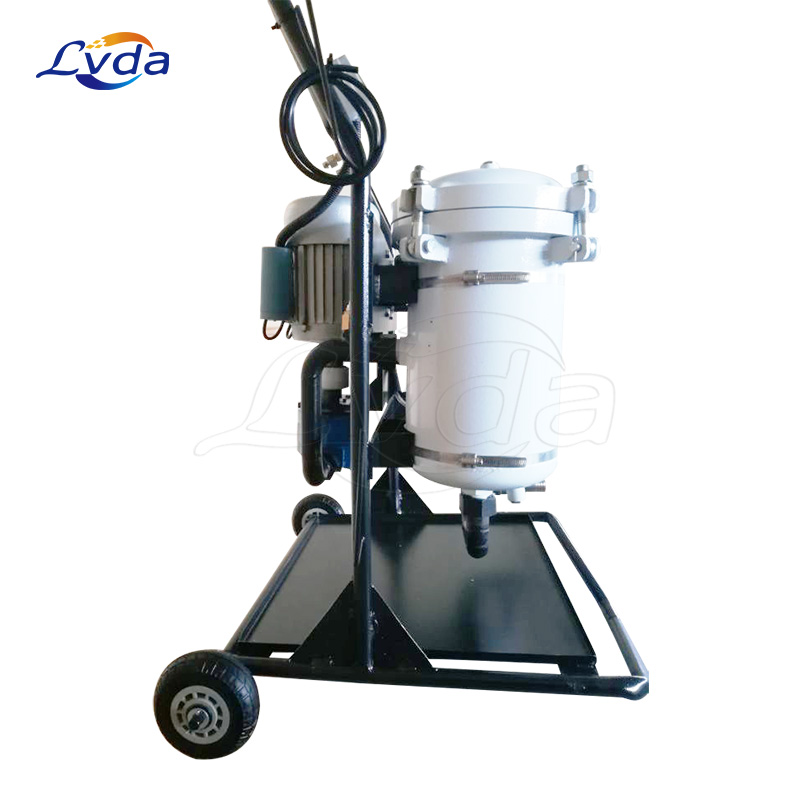

Small cart oil purifier
Main material: high carbon steel, stainless steel can be customized according to customer needs
Working principle: filter element intercepts impurities
Small cart oil purifier is widely used, mainly used for filtration, transportation and filling of lubricating oil, hydraulic oil, mechanical oil, turbine oil, water glycol, fuel oil, insulating oil and other liquid oils and organic solvents. Filtration precision and filtration stages can be selected according to liquids with different viscosities.
Parameters
| Model |
AOP-B25
-*/**
|
A0P-B32
-*/**
|
A0P-B40
-*/**
|
A0P-B50
-*/**
|
A0P-B63
-*/**
|
A0P-B100
-*/**
|
A0P-B150
-*/**
|
| Rated flow(L /min) |
25 |
32 |
40
|
50 |
63 |
100 |
150 |
| Rated pressure(MPa) |
0.6 |
| Mpa(MPa) |
≤0.02 |
| Coarse filter precision(μm) |
100 |
| Grade 1 filter rating(μm) |
10、20、40 |
| Grade 2 filter rating(μm) |
3、5、 10、S-W |
| Differential pressure |
0.2Mpa |
| Working temperature(°C) |
5-80 |
|
Recommended viscosity(cSt)
|
10- 160 |
|
Voltage(V)
|
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.55 |
0.75 |
1.1 |
1.1 |
1.5 |
2.2 |
3.0 |
| Weight(kg) |
46 |
78 |
90 |
96 |
102 |
120 |
160 |
| Dimensions(mm) |
520x350 x950 |
520 x350x950 |
720x 680 x 1020 |
720 x<680 x 1020 |
720 x 680x 1020 |
720x 750x 1020 |
720x750x 122 |
This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.
The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.

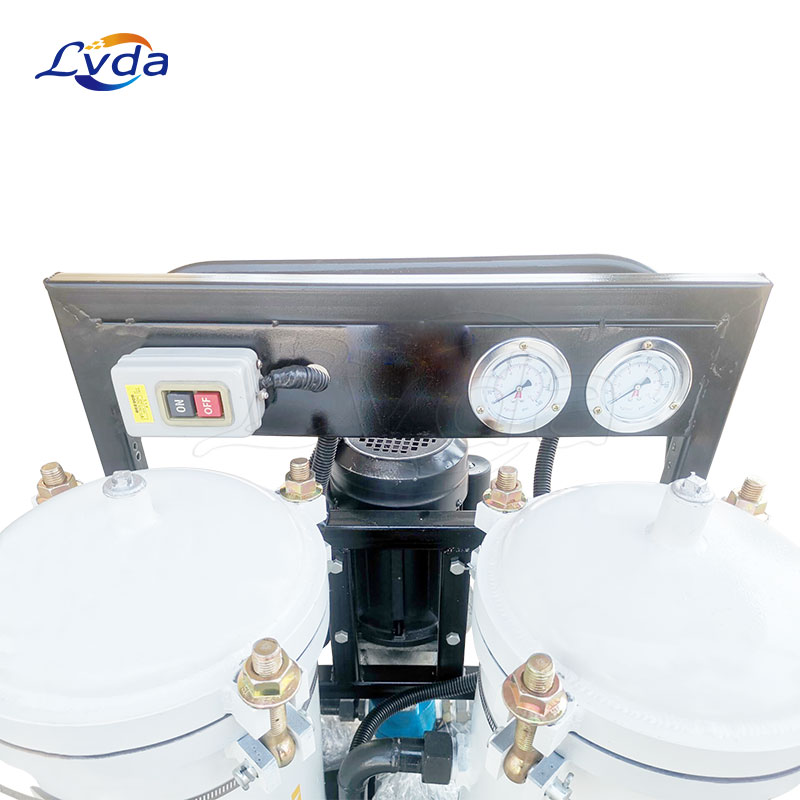

The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
● It can refuel and pump oil in the lubrication system from a long distance and with high lift, and can also filter impurities online.
● Equipped with filter element replacement instruction and filter element saturation shutdown device to prevent the filter element from being damaged due to overpressure.
● The speed of filtering out solid pollutants is fast, and oil filter paper is not used.
● Equipped with leakage and overload shutdown device to protect the motor.
● Configure automatic filtering function to realize online filtering and purification.
● There are various specifications for filtration precision and filtration stages.
● Simple operation and maintenance.
● Light and flexible, easy to move.
● The equipment is made of carbon steel and stainless steel, and the color of the machine can be customized according to customer requirements.
● Class 1-6 filters can be customized according to the degree of oil pollution.
● Oil pumps, motors, filter elements, electrical components and instruments are available from domestic brands, joint venture brands and international imported brands.
● According to the user's needs, it can be equipped with PLC intelligent control, touch screen operation, and dynamic display.
● Equipment styles include fixed, open, frame, semi-enclosed and fully enclosed.
Applications
Applicable oil: lubricating oil, hydraulic oil, turbine oil, etc.
