Product Details
AOP-B series movable portable oil purifier
The pollution degree of unpurified new oil often exceeds the requirements of actual hydraulic system oil regulations. Even the new oil that has just been extracted from the oil tank is not suitable for direct use. There are many reasons for the pollution of the new oil. Various pollutants, including particles, moisture, may pass into the new oil during processing, mixing and storage. Portable oil flter is an ideal method for pre filtering, fling oil and purifying system oil. The free water in the oil can be separated out through the dehydration filter element installed in the outlet filter. The dehydration filter element is made of super absorbent resin that has a high binding force with water. Free water once Contact with this material is adsorbed.
Parameters
| Model |
AOP-B25
-*/**
|
A0P-B32
-*/**
|
A0P-B40
-*/**
|
A0P-B50
-*/**
|
A0P-B63
-*/**
|
A0P-B100
-*/**
|
A0P-B150
-*/**
|
| Rated flow(L /min) |
25 |
32 |
40
|
50 |
63 |
100 |
150 |
| Rated pressure(MPa) |
0.6 |
| Mpa(MPa) |
≤0.02 |
| Coarse filter precision(μm) |
100 |
| Grade 1 filter rating(μm) |
10、20、40 |
| Grade 2 filter rating(μm) |
3、5、 10、S-W |
| Differential pressure |
0.2Mpa |
| Working temperature(°C) |
5-80 |
|
Recommended viscosity(cSt)
|
10- 160 |
|
Voltage(V)
|
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.55 |
0.75 |
1.1 |
1.1 |
1.5 |
2.2 |
3.0 |
| Weight(kg) |
46 |
78 |
90 |
96 |
102 |
120 |
160 |
| Dimensions(mm) |
520x350 x950 |
520 x350x950 |
720x 680 x 1020 |
720 x<680 x 1020 |
720 x 680x 1020 |
720x 750x 1020 |
720x750x 122 |
This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.
The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.
The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
End cap:Top design, Quick- -opening structure, convenient for maintenance.
Filter element:High precision fiter material, Large fltratin area, advanced structure design.
Connection:Adopting hydraulic pipe joints, reliable connection and sealing, zero leakage.
Frame:Sturdy and durable
Carriage wheel:Premium Polyurethane wheel, operate smoothly, no noise.
Electrical control:Using magnetic starter, built-in thermal relay protection, efective protection of the motor, sturdy and durable.

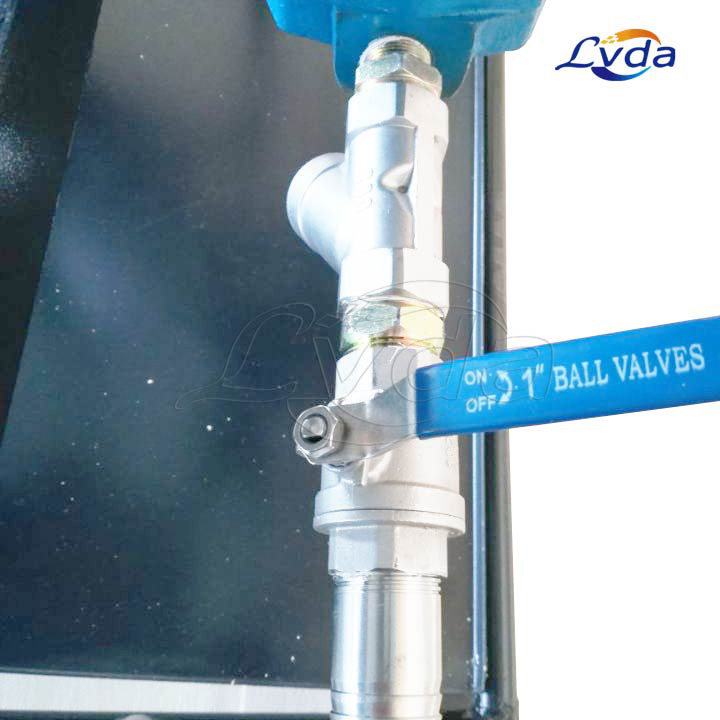

Suction oil filter:Using high- -strength mesh grid for protecting oil pump from damage.

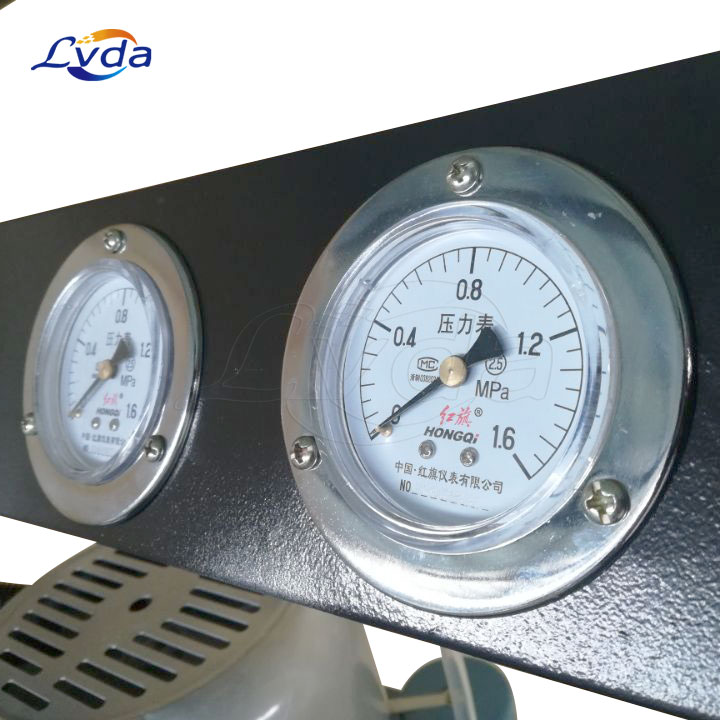

Pressure indicator:Equipped with pressure gauge to indicate system pressure and prompt to replace the flter element in time.
Gear pump:Internal gear pump, quiet operation, reliable performance, long service life.
Oil receiving tray:Keeping the workplace safe and clean.
Applications
●Filter new oil
●Fill in new oil and flter
●Clean up the oil in use
●Bypass fltration of hydraulic lubrication system
