Product Details
AOP-A series movable portable oil purifier
This oil purifier includes a special gear pump driven by a motor. It has the characteristics of low noise, strong self-priming aiity, and stable operation.
The high-pressure pipeline is equipped with an overflow protection device, which can effectively protect the safety of the hydraulic system.
Use thermal relay protection to prevent motor damage caused by motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
Different precision for the fine flter can be chosen according to the different needs of users to achieve the required results.
The oil flter housing adopts a quick -opening structure. No special tools are needed to quickly open the upper cover and replace the filter element.
The panel is equipped with a pressure gauge, which continuously indicates the operating status of the system and the degree of pollution of the flter element during work.
Parameters
| Model |
AOP-B25
-*/**
|
A0P-B32
-*/**
|
A0P-B40
-*/**
|
A0P-B50
-*/**
|
A0P-B63
-*/**
|
A0P-B100
-*/**
|
A0P-B150
-*/**
|
| Rated flow(L /min) |
25 |
32 |
40
|
50 |
63 |
100 |
150 |
| Rated pressure(MPa) |
0.6 |
| Mpa(MPa) |
≤0.02 |
| Coarse filter precision(μm) |
100 |
| Grade 1 filter rating(μm) |
10、20、40 |
| Grade 2 filter rating(μm) |
3、5、 10、S-W |
| Differential pressure |
0.2Mpa |
| Working temperature(°C) |
5-80 |
|
Recommended viscosity(cSt)
|
10- 160 |
|
Voltage(V)
|
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.55 |
0.75 |
1.1 |
1.1 |
1.5 |
2.2 |
3.0 |
| Weight(kg) |
46 |
78 |
90 |
96 |
102 |
120 |
160 |
| Dimensions(mm) |
520x350 x950 |
520 x350x950 |
720x 680 x 1020 |
720 x<680 x 1020 |
720 x 680x 1020 |
720x 750x 1020 |
720x750x 122 |
This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.
The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.
The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
End cap:Top design quick opening structure, easy to change filter element.
Filter element:Selected high-precision flter material, large fiter area, keep up with the international advanced structural design.
Connect:All adopt hydraulic pipe joint, reliable connection and sealing, zero leakage.
Loadable frame:durable

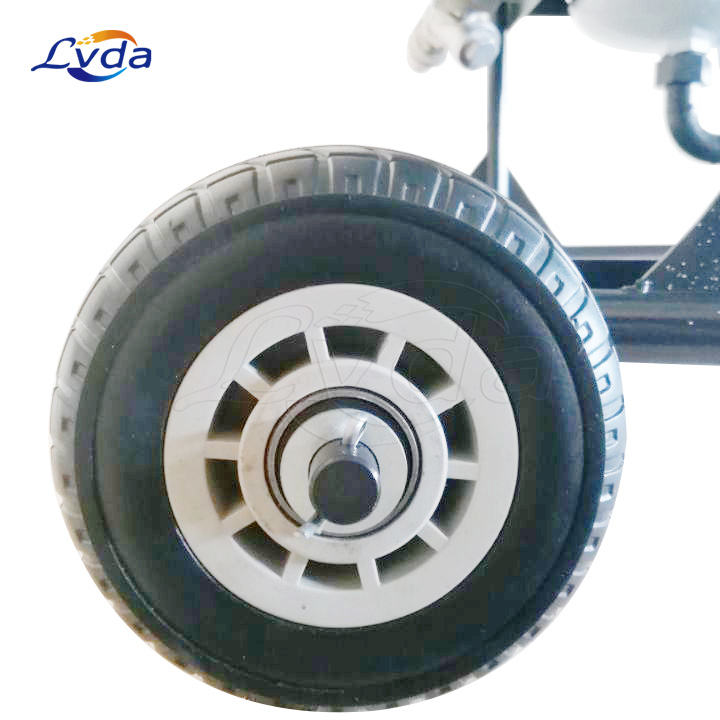

Wheel:High quality polyurethane wheel, famous brand bearing, stable operation, no noise.
Electric control:It adopts magnetic starter and thermal relay protection, which can effectively protect the motor and is
durable.
Suction filter:High strength woven net is used to protect the oil pump from damage.
Pressure indication:Pressure gauge is set to indicate system pressure and prompt to replace filter element in time.
Oil pan:Helps keep workplace safe.

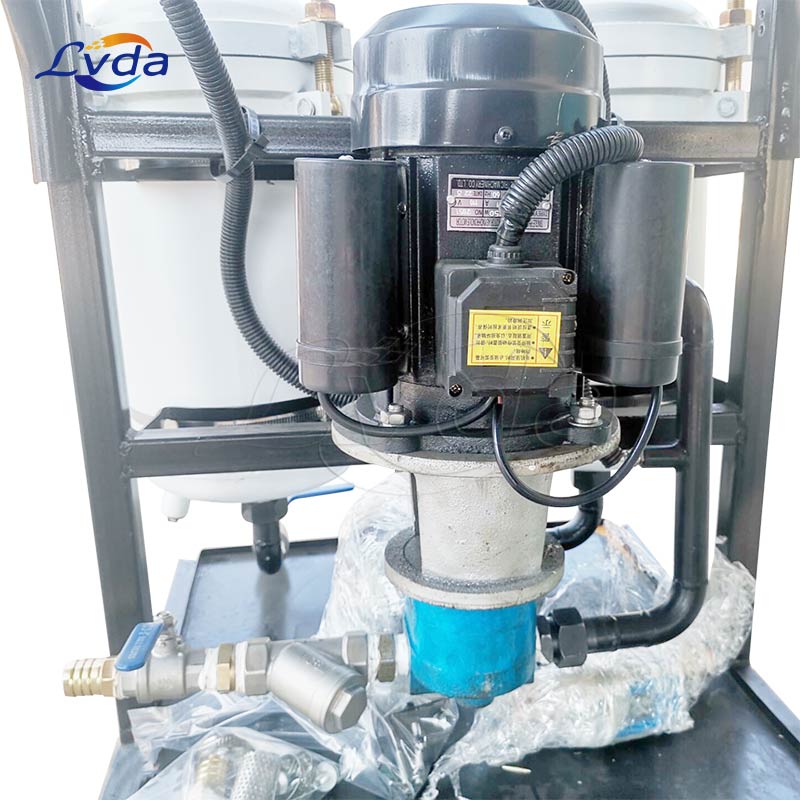

Gear pump:Internal gear pump, quiet operation, reliable performance, long service life.
Applications
●Filter new oil
●Fill in and filter new oil
●Filter the oil in use
●Bypass filtration of hydraulic lubrication system
