Product Details
Low-viscosity hand-held system

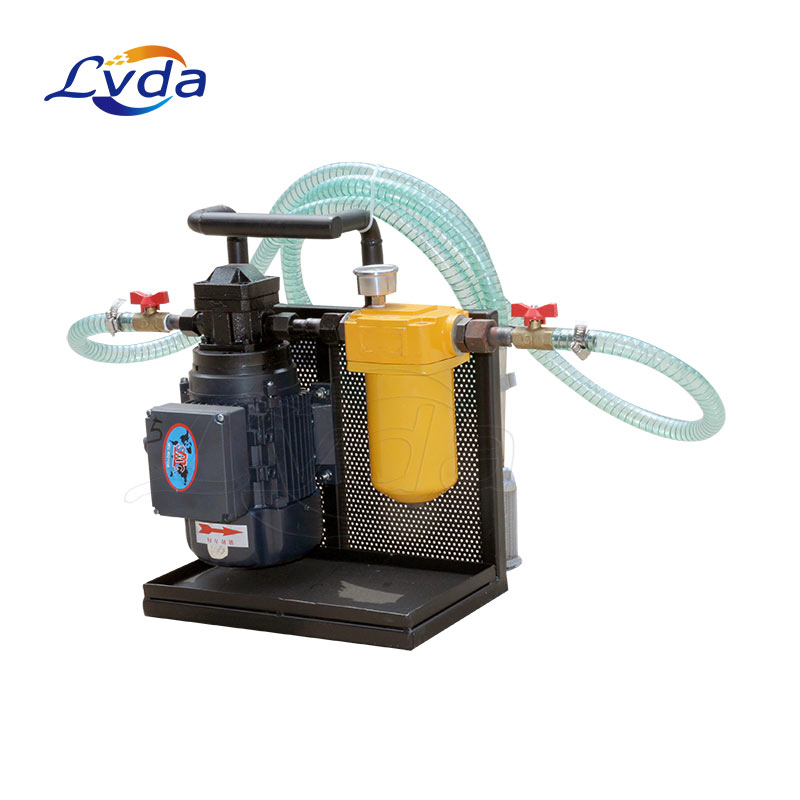

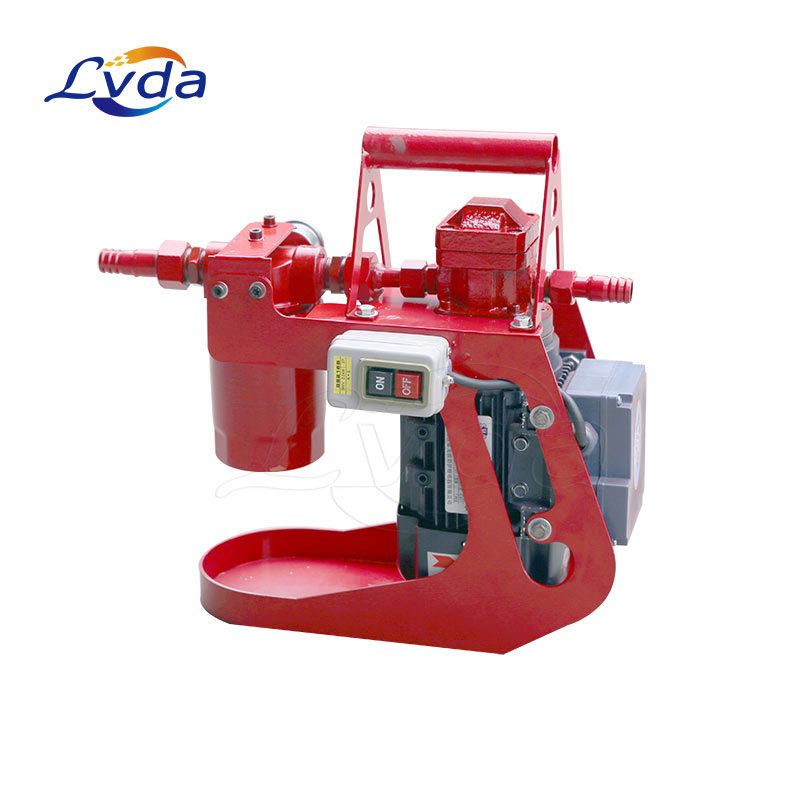

Low-viscosity hand-held systems are portable filtration systems used to clean hydraulic fluid in hydraulic systems, such as those found in gear boxes, turbines, and construction and agricultural equipment. They have a handle to ease carrying and include a motor, pump, and filter element mounted on a frame. Unlike in-line filters that continuously filter fluid as it passes through the system, these off-line systems are not intended to be permanently attached to the system. They are used to filter new fluid before it is added to the system, flush and drain systems, and top off reservoirs.
Low-viscosity hand-held systems are portable filtration systems used to clean hydraulic fluid in hydraulic systems, such as those found in gear boxes, turbines, and construction and agricultural equipment. They have a handle that allows the user to carry the unit to the hydraulic system. Unlike in-line filters that continuously filter fluid as it passes through the system, these off-line systems are not intended to be permanently attached to the system. They are used to filter new fluid before it is added to the system, flush and drain systems, and top off reservoirs. Filters can be changed when they become dirty or clogged. Clean hydraulic fluid reduces contaminant buildup and maintenance costs and extends the working life of the system.
Parameters
| Model | AOP-6-*/**
| AOP-10-*/**
| AOP-16-*/**
|
Rated flow(L/min) | 6
| 10 | 16 |
Rated pressure(Mpa) | 0.34
|
| Original pressure loss(Mpa) | ≤0.02
|
Coarse filtration accuracy(μm) | 40 meshes
|
Fine filtration accuracy(μm) | 3、 5、 10、 20、 40 |
Alarm differential pressure(MPa) | 0.2MPa |
Use temperature(°C) | 6~80 |
Recommended viscosity for use(cSt) | 10~160 |
Power supply(V) | AC380V three-phase, AC220V three-phase |
Motor Power(kw) | 0.18 | 0.25 | 0.35 |
Weight(kw) | 13 | 16 | 18 |
Dimensions(mm) | 650x680x980
| 650x680x980
| 720x680x1020
|
Note: *- filter precision, such as 003 is 3 microns
**-Filter media, omitted: ordinary hydraulic oil; BH: water glycol; V: phosphate ester hydraulic oil.
Features
Oil Sampling Ports:Two sampling ports available to monitor condition of oil.
Differential Pressure Gauges:Indicates when elements need to be changed.
Dual Filters:Two-stage filtration for long element life and pump protection.
Bronze Internal Helical Gear Pump:Industrial quality for long life.
Compact Frame:Lightweight design provides flexibility to service equipment located in hard to reach areas.
Hoses:Heavy-duty hydraulic hose.
Applications
Low-viscosity hand-held system is specially designed for high-precision machining machinery, so that its oil is always in good condition.
Also, low-viscosity hand-held system is widely used for petroleum, chemical, mining, metallurgy, electricity, transportation, machinery manufacturing, railway and other industries oil with significant economic benefits.
