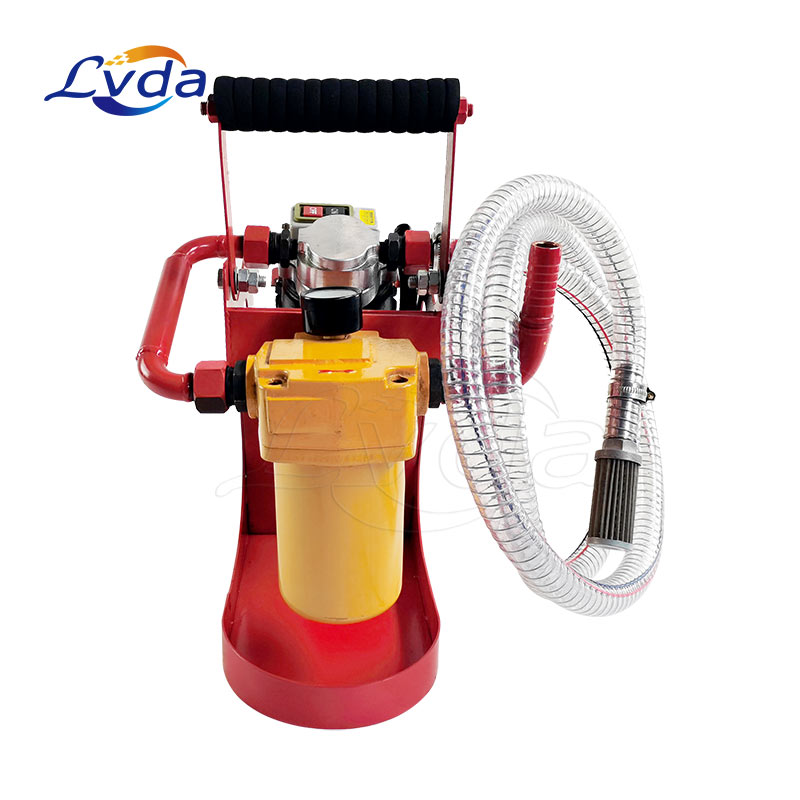

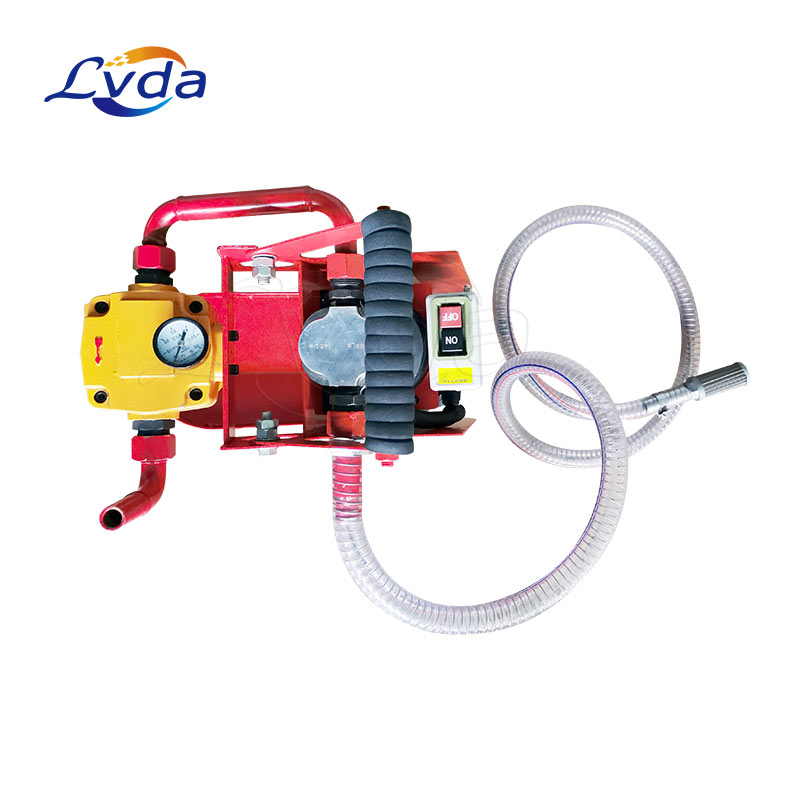

Hand held hydraulic filter unit
Hand held hydraulic filter units are portable filtration systems used to clean hydraulic fluid in hydraulic systems, such as those found in gear boxes, turbines, and construction and agricultural equipment. They have a handle to ease carrying and include a motor, pump, and filter element mounted on a frame. Unlike in-line filters that continuously filter fluid as it passes through the system, these off-line systems are not intended to be permanently attached to the system. They are used to filter new fluid before it is added to the system, flush and drain systems, and top off reservoirs.
Hand held hydraulic filter units are portable filtration systems used to clean hydraulic fluid in hydraulic systems, such as those found in gear boxes, turbines, and construction and agricultural equipment. They have a handle that allows the user to carry the unit to the hydraulic system. Unlike in-line filters that continuously filter fluid as it passes through the system, these off-line systems are not intended to be permanently attached to the system. They are used to filter new fluid before it is added to the system, flush and drain systems, and top off reservoirs. Filters can be changed when they become dirty or clogged. Clean hydraulic fluid reduces contaminant buildup and maintenance costs and extends the working life of the system.
Parameters
| Model | AOP-6-*/**
| AOP-10-*/**
| AOP-16-*/**
|
Rated flow(L/min) | 6
| 10 | 16 |
Rated pressure(Mpa) | 0.34
|
| Original pressure loss(Mpa) | ≤0.02
|
Coarse filtration accuracy(μm) | 40 meshes
|
Fine filtration accuracy(μm) | 3、 5、 10、 20、 40 |
Alarm differential pressure(MPa) | 0.2MPa |
Use temperature(°C) | 6~80 |
Recommended viscosity for use(cSt) | 10~160 |
Power supply(V) | AC380V three-phase, AC220V three-phase |
Motor Power(kw) | 0.18 | 0.25 | 0.35 |
Weight(kw) | 13 | 16 | 18 |
Dimensions(mm) | 650x680x980
| 650x680x980
| 720x680x1020
|
Note: *- filter precision, such as 003 is 3 microns
**-Filter media, omitted: ordinary hydraulic oil; BH: water glycol; V: phosphate ester hydraulic oil.
Features
Reduce maintenance, operating, and downtime costs
High efficiency, high capacity, fine filtration
Extending the life expectancy of your assets
Reduction in energy costs
Going green by extending the life of your lubricants
Reduced consumption and disposal costs
Applications
Conditioning lubricants already in use
Filtering new oil to meet a target cleanliness standard
Flushing reservoirs to clean out any unwanted contaminants
Transferring new oils from bulk drums to storage tanks or system reservoirs
