Lubricant Oil Purifier

Model Number:

Rated pressure(Mpa) : 0.34

Original pressure loss(Mpa) : ≤0.02

Coarse filtration accuracy(μm) : 40 meshes

Use temperature(°C) : 6~80

Recommended viscosity for use(cSt) : 10~160

Get Quotation

Product Details

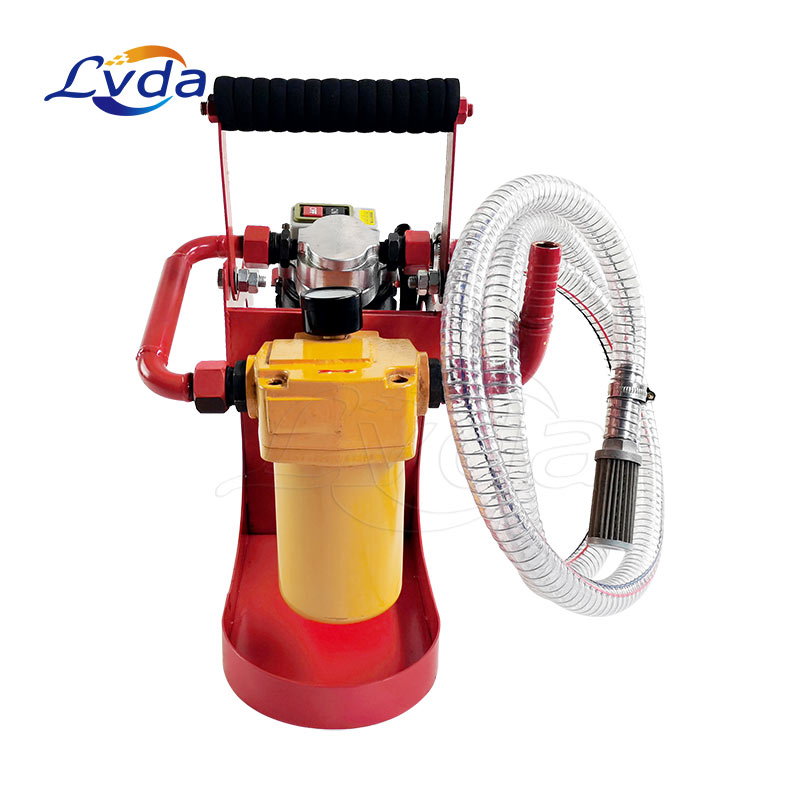

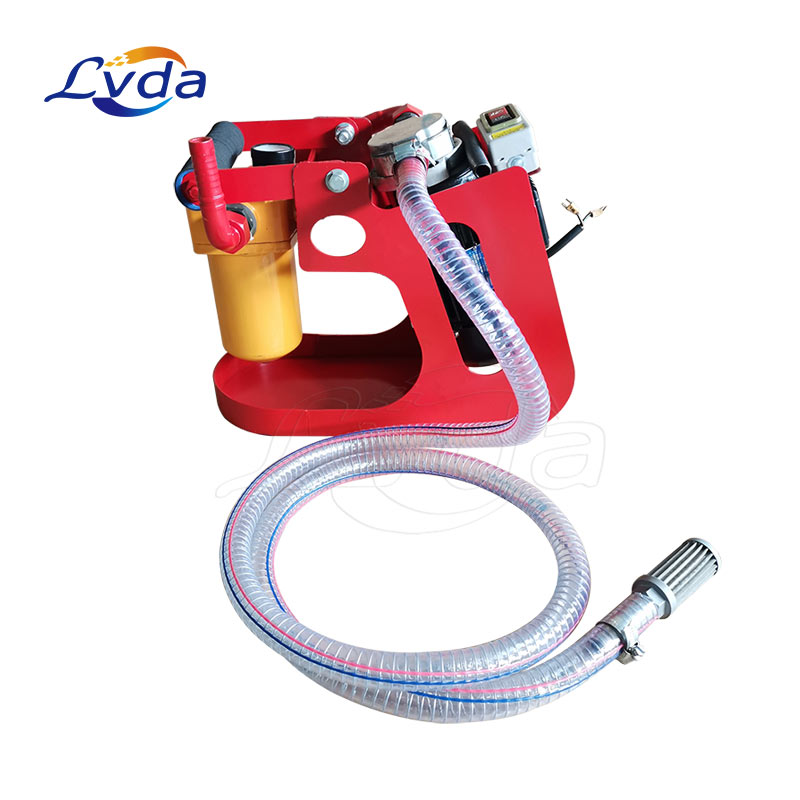

Portable hydraulic oil transfer and filtration unit

System manufacturers and OEMs know how important it is to start their system or machine filled with oil having the correct cleanliness class. New oil very often will not meet the required level.

Maintenance engineers know how important it is to top up the system with clean oil. They can also face situations of extraordinarily contaminated oil, sometimes even contaminated with water.

We now offer two new series of portable transfer and filtration units that deliver 17 l/min:

– utilizing spin-on cartridges

– utilizing a replaceable filter element

On both series the filter elements can be selected from a wide range of options to meet any filtration requirement, even for water removal. Our quality manufacturing capabilities ensure filtration efficiency, operational safety and reliability:

Parameters

ModelAOP-6-*/**
AOP-10-*/**
AOP-16-*/**

Rated flow(L/min)

6
1016

Rated pressure(Mpa)

 0.34
Original pressure loss(Mpa)≤0.02

Coarse filtration accuracy(μm)

40 meshes

Fine filtration accuracy(μm)

3、 5、 10、 20、 40

Alarm differential pressure(MPa)

0.2MPa

Use temperature(°C)

6~80

Recommended viscosity for use(cSt)

10~160

Power supply(V)

AC380V three-phase, AC220V three-phase

Motor Power(kw)

0.180.250.35

Weight(kw)

131618

Dimensions(mm)

650x680x980
650x680x980
720x680x1020

Note: *- filter precision, such as 003 is 3 microns

**-Filter media, omitted: ordinary hydraulic oil; BH: water glycol; V: phosphate ester hydraulic oil.

Features

CCC marked

Overpressure valve

Start and stop button

Premium quality hydraulic connectors

Y suction filter for pump safety

Visual indicator

Applications

Our portable hydraulic oil transfer and filtration unit mainly deals with unqualified insulating oil, turbine oil, lubricating oil etc, this machine can carry out precision filtering, usually completes three-stage filter, also can equip four or five-stage filter according to user requirements.

Light weight, easy operation, can be used as oiling machine for long distance and high-lift oiling works.
