Portable mobile oil refinery filtration machine
Portable mobile oil refinery filtration machine
Portable mobile oil refinery filtration machine

Portable mobile oil refinery filtration machine

Lubricant Oil Purifier

Model Number:

Rated pressure(Mpa) : 0.34

Original pressure loss(Mpa) : ≤0.02

Coarse filtration accuracy(μm) : 40 meshes

Use temperature(°C) : 6~80

Recommended viscosity for use(cSt) : 10~160

Get Quotation

Product Details

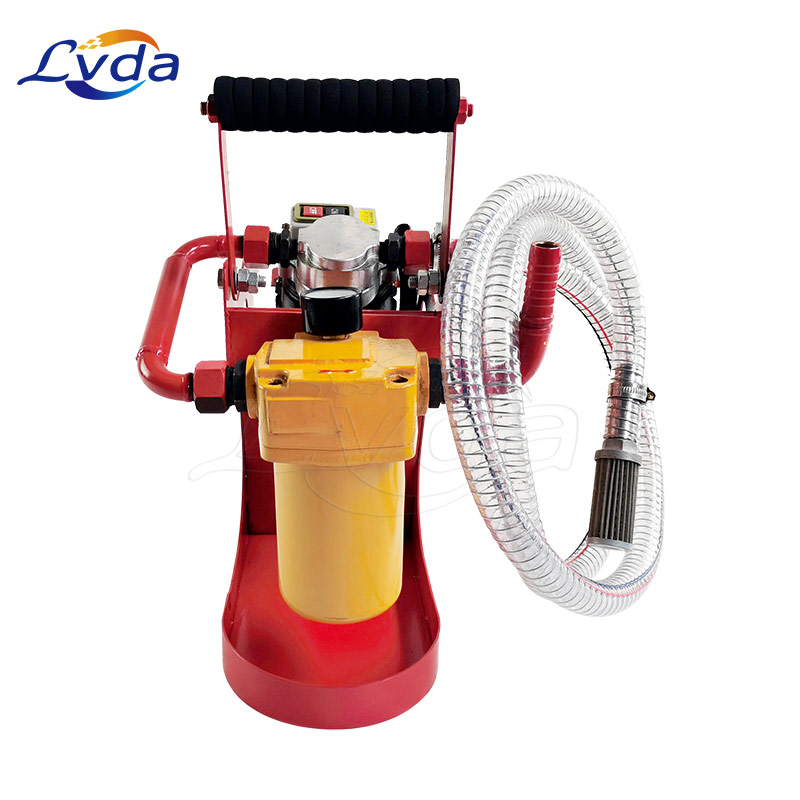

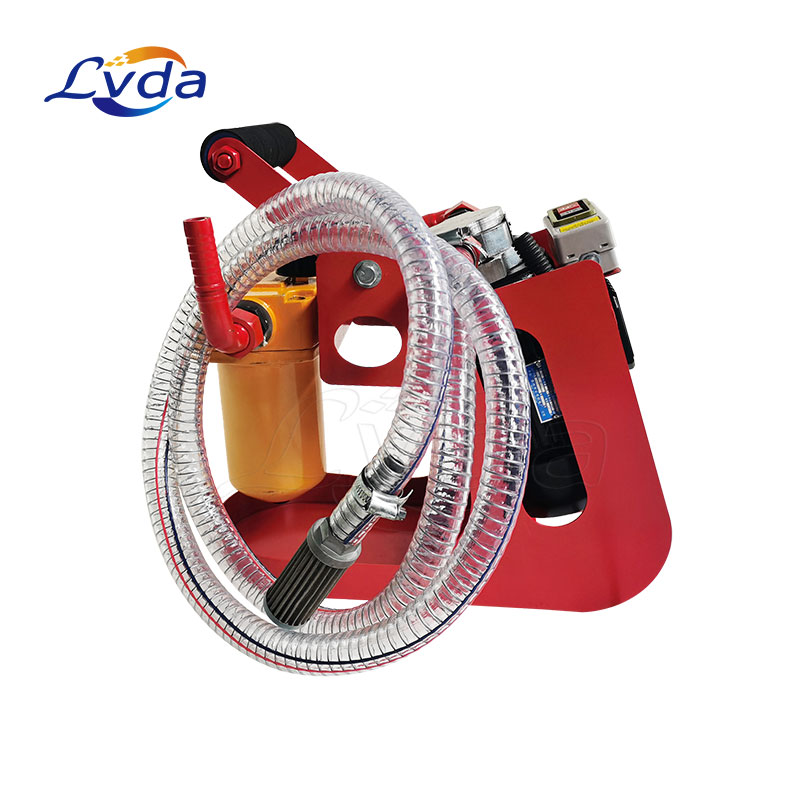

Portable mobile oil refinery filtration machine

This portable mobile oil refinery filtration machine has certain economic effect of oil saving and recycling. Reliable performance,easy maintenance and simple convenient operation,high precision,low working noise,can be used as preparation of oil liquid perfusion and regular filtration for the hydraulic system,static pressure system,lubrication system and all kinds of oil equipment.

For the secondary/high precision filter cartridge, you can choose 3μm,5μm,10μm,20μm,30μm freely according your requirement.

Packing material is wooden box.

Parameters

ModelAOP-6-*/**
AOP-10-*/**
AOP-16-*/**

Rated flow(L/min)

6
1016

Rated pressure(Mpa)

 0.34
Original pressure loss(Mpa)≤0.02

Coarse filtration accuracy(μm)

40 meshes

Fine filtration accuracy(μm)

3、 5、 10、 20、 40

Alarm differential pressure(MPa)

0.2MPa

Use temperature(°C)

6~80

Recommended viscosity for use(cSt)

10~160

Power supply(V)

AC380V three-phase, AC220V three-phase

Motor Power(kw)

0.180.250.35

Weight(kw)

131618

Dimensions(mm)

650x680x980
650x680x980
720x680x1020

Note: *- filter precision, such as 003 is 3 microns

**-Filter media, omitted: ordinary hydraulic oil; BH: water glycol; V: phosphate ester hydraulic oil.

Features

● Small size, light weight, easy to carry and operate.

● The filtering precision can be freely selected according to the needs.

● There are a variety of specifications to choose from

● According to need, it can be made into explosion-proof type.

Applications

Our portable mobile oil refinery filtration machine is widely used for machinery manufacturing,oil production and processing,machine oil,hydraulic equipment,such as large oil pumping station,Jack,shear machine,folding machine,press machine,construction machiney hydraulic,electric power facilities construction preparation,lifting the transport machinery,machine tools,metallurgy,chemical industry,plastic injection lubrication equipment, agricultural machinery etc.,to purify and filtrate for hte machine's hydraulic oil,lube oil and cutting oil.
