Product Details

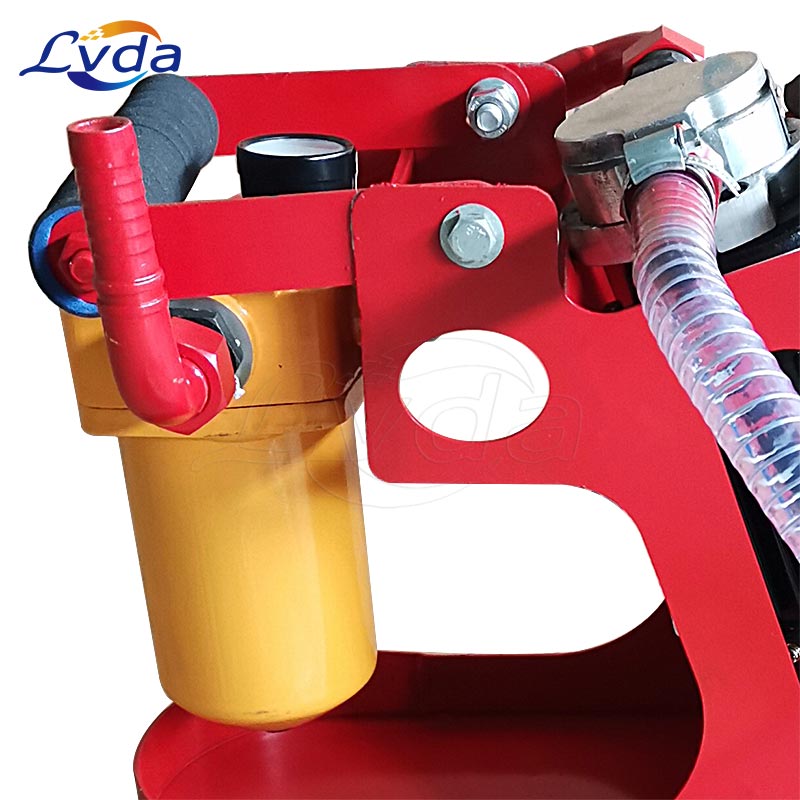

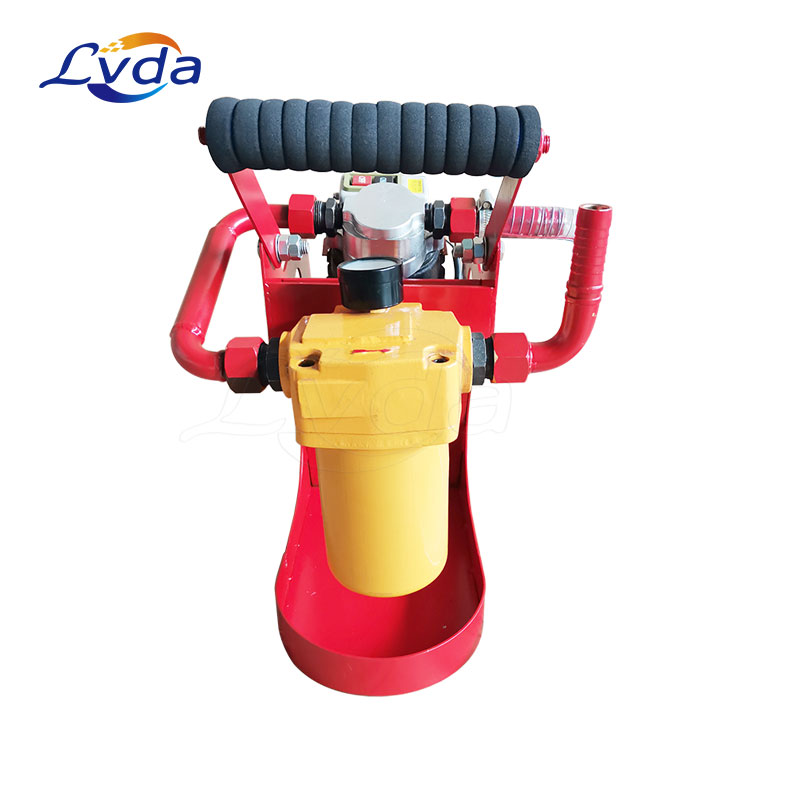

Hydraulic/lube portable oil filter unit
Oil separation services offers trolley mounted portable Oil Cleaning Machine which can clean almost all industrial oils to Super-clean levels NAS 4 even from dirtiness levels of NAS 99. Another prime advantage with these machines is that low vacuum dehydration attachment is inbuilt for fast removal of moisture/water from the oil. These machines are versatile in usage and can be used to clean oil in tanks (online) or in offline barrels and stand-by tanks. The benefit of such systems is that a single machine can be used to clean a number of oil tanks in a plant. However, the performance of the machine will depend largely on usage by factory personnel who will have to schedule it to different oil tank locations sincerely and religiously.
Parameters
| Model | AOP-6-*/**
| AOP-10-*/**
| AOP-16-*/**
|
Rated flow(L/min) | 6
| 10 | 16 |
Rated pressure(Mpa) | 0.34
|
| Original pressure loss(Mpa) | ≤0.02
|
Coarse filtration accuracy(μm) | 40 meshes
|
Fine filtration accuracy(μm) | 3、 5、 10、 20、 40 |
Alarm differential pressure(MPa) | 0.2MPa |
Use temperature(°C) | 6~80 |
Recommended viscosity for use(cSt) | 10~160 |
Power supply(V) | AC380V three-phase, AC220V three-phase |
Motor Power(kw) | 0.18 | 0.25 | 0.35 |
Weight(kw) | 13 | 16 | 18 |
Dimensions(mm) | 650x680x980
| 650x680x980
| 720x680x1020
|
Note: *- filter precision, such as 003 is 3 microns
**-Filter media, omitted: ordinary hydraulic oil; BH: water glycol; V: phosphate ester hydraulic oil.
Features
This hydraulic/lube portable oil filter unit is an ultra-portable oil and oil filter developed by our company.
The machine is easy to carry and can be used to refill various hydraulic lubricating equipment anytime and anywhere in the field, and can purify the oil.
The suction port coarse filter protects the oil pump and prolongs the life of the main filter.
The fine filter can choose different precision according to the different needs of users to achieve the required results.
Filter Medium Material:Metal , Fiberglass ,Microfiber ,Paper
Filter Type: Suction Filters ,Pressure Filters ,Return Line Filters ,Bypass Filter Systems
Applications
Hydraulic Oil
Turbine Oil
Gear Oil
Lubrication Oil
Engine Oil
Compressor Oil
Thermic Fluids
Transformer Oils
Honing Oil
Quenching Oil
Edible Oil
Flushing Fluids
Testing Oils
Water Glycols
Fire Resistant Fluids
Rust Preventive Oils
EDM Oil
Solvents etc
