Lubricant Oil Purifier

Model Number:

Rated pressure(Mpa) : 0.34

Original pressure loss(Mpa) : ≤0.02

Coarse filtration accuracy(μm) : 40 meshes

Use temperature(°C) : 6~80

Recommended viscosity for use(cSt) : 10~160

Get Quotation

Product Details

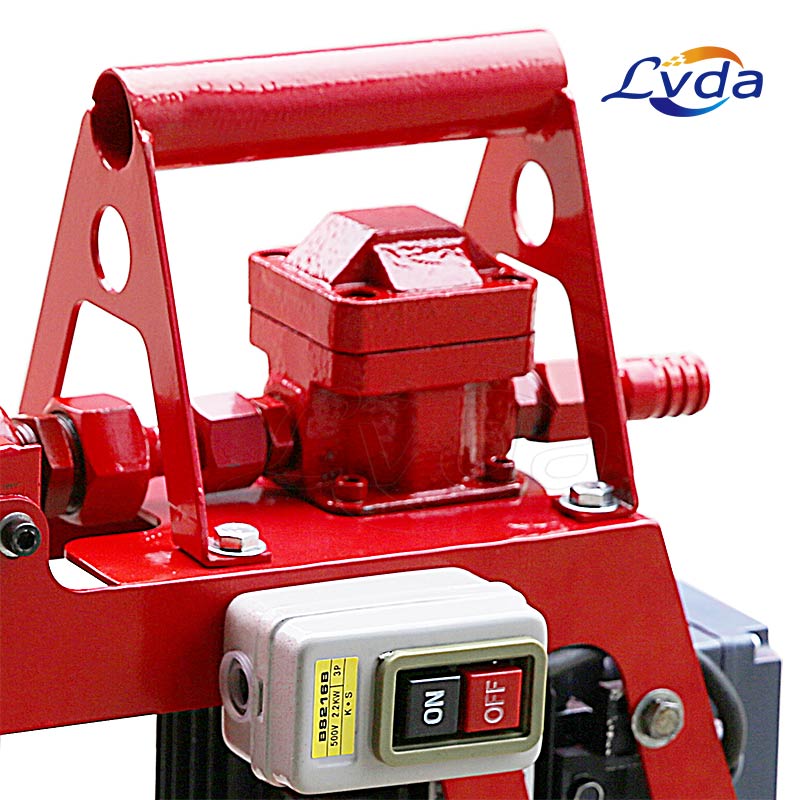

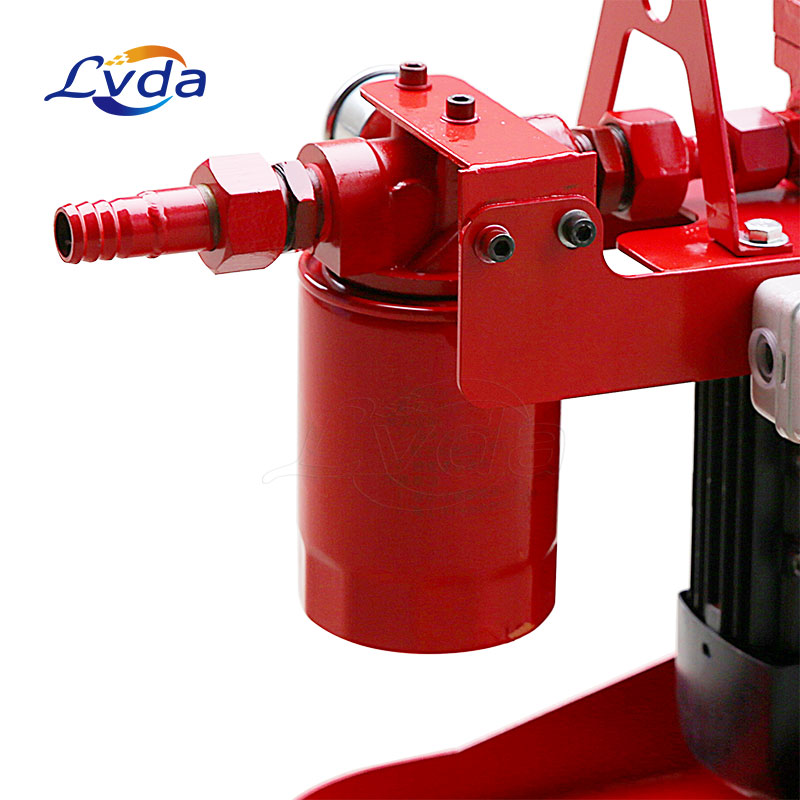

Portable small-flow filter device systems

The harmful effects of particulate and moisture contamination in hydraulic and lubrication oils have been well documented. By maintaining absolute fluid cleanliness, end-users can dramatically increase the life of critical wear components on rotational equipment, minimizing downtime and maximizing profitability. We have developed a line of portable small-flow filter device systems intended for use for fluid transfer or kidney-loop filtration. They are the most reliable, versatile, durable, and user-friendly hand-take filter device in the industry today.

Parameters

ModelAOP-6-*/**
AOP-10-*/**
AOP-16-*/**

Rated flow(L/min)

6
1016

Rated pressure(Mpa)

 0.34
Original pressure loss(Mpa)≤0.02

Coarse filtration accuracy(μm)

40 meshes

Fine filtration accuracy(μm)

3、 5、 10、 20、 40

Alarm differential pressure(MPa)

0.2MPa

Use temperature(°C)

6~80

Recommended viscosity for use(cSt)

10~160

Power supply(V)

AC380V three-phase, AC220V three-phase

Motor Power(kw)

0.180.250.35

Weight(kw)

131618

Dimensions(mm)

650x680x980
650x680x980
720x680x1020

Note: *- filter precision, such as 003 is 3 microns

**-Filter media, omitted: ordinary hydraulic oil; BH: water glycol; V: phosphate ester hydraulic oil.

Features:

NEMA 4 Electric Control Panel With Plugged Filter? Indicator Light and Automatic System Shut-Down

Oil Circulation Heater

Stainless Steel Wands For Use With 55-Gallon Drums

Inline Digital Particle Monitor

NEMA 7 Explosion Proof Components

Stainless Steel Wetted Parts

4-Point Lifting Lug Cage Structure

Applications

Designed for use on:Hydraulic Oil, Turbine Oil, Lubrication Oil, Gear Oil (ISO VG 220 ISO VG 680), Transformer Oil, Diesel Fuel, Phosphate Ester (Fyrquel EHC Fluid), PAO Fluid, Water Glycol(Coolants).
