Product Details

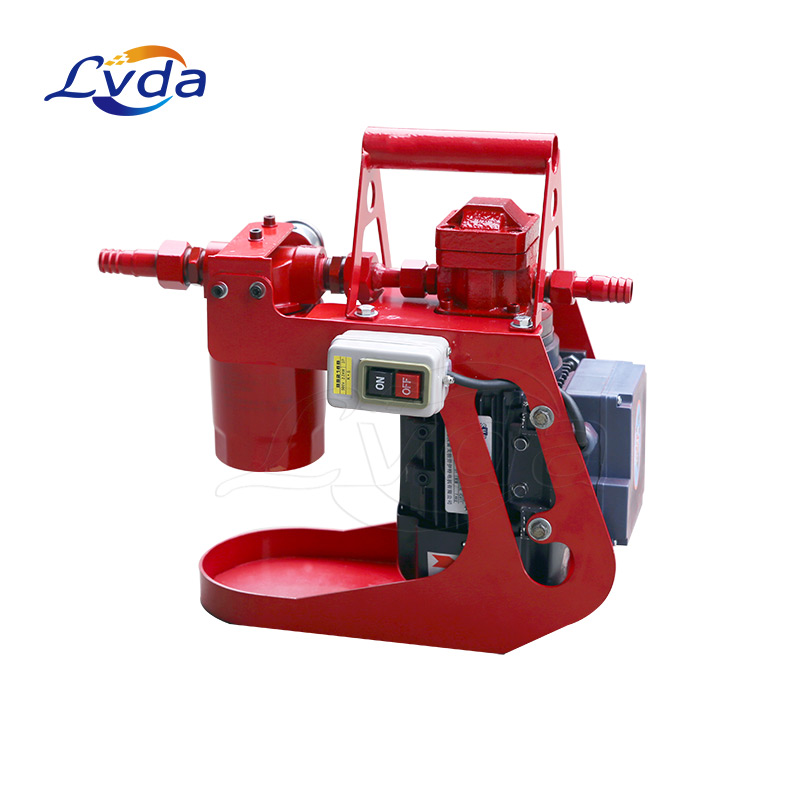

Lubricating oil hand held filter cart
Lubricating oil hand held filter cart is to filter and purifty contaminated oil, remove impurities, moisture, oxidizing substances, carbonized substances and other harmful components, and restore or improve the properties of the oil itself. Including oil cleanliness, water content, gas content, acid value, viscosity, flash point, insulation strength, color, can also effectively remove impurities in the oil to ensure safe operation of oil equipment.
Our lubricating oil hand held filter cart is a device for processing oil. Its function is to filter and purify contaminated oil, remove impurities, moisture, oxidizing substances, carbonized substances and other harmful components, and restore or improve the properties of the oil itself. Including oil cleanliness, water content, gas content, acid value, viscosity, flash point, insulation strength, color, can also effectively remove impurities in the oil to ensure safe operation of oil equipment.
Parameters
| Model | AOP-6-*/**
| AOP-10-*/**
| AOP-16-*/**
|
Rated flow(L/min) | 6
| 10 | 16 |
Rated pressure(Mpa) | 0.34
|
| Original pressure loss(Mpa) | ≤0.02
|
Coarse filtration accuracy(μm) | 40 meshes
|
Fine filtration accuracy(μm) | 3、 5、 10、 20、 40 |
Alarm differential pressure(MPa) | 0.2MPa |
Use temperature(°C) | 6~80 |
Recommended viscosity for use(cSt) | 10~160 |
Power supply(V) | AC380V three-phase, AC220V three-phase |
Motor Power(kw) | 0.18 | 0.25 | 0.35 |
Weight(kw) | 13 | 16 | 18 |
Dimensions(mm) | 650x680x980
| 650x680x980
| 720x680x1020
|
Note: *- filter precision, such as 003 is 3 microns
**-Filter media, omitted: ordinary hydraulic oil; BH: water glycol; V: phosphate ester hydraulic oil.
Features
The lubricating oil hand held filter cart includes a special gear pump driven by a motor, which has the characteristics of stable operation.
The high pressure pipeline has no overflow protection device, which can effectively protect the safety of the hydraulic system.

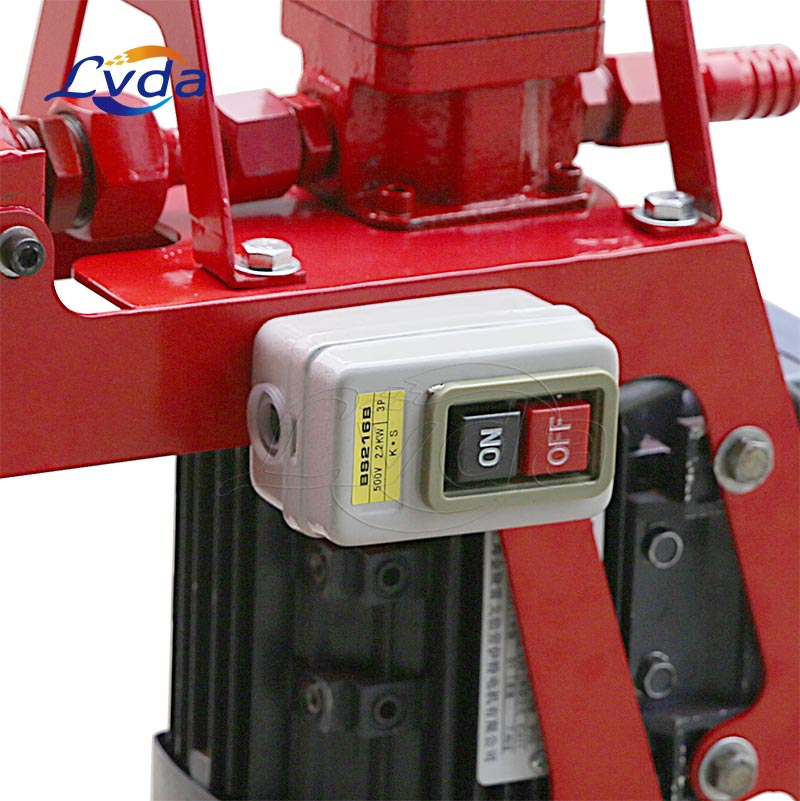

Use thermal relay protection to prevent motor damage caused by motor overload.
The oil suction port coarse filter protects the oil pump and extends the service life of the main filter.
Fine filter can choose different precision according to the different needs of users to meet the required requirements.
The oil filter housing adopts a quick opening structure, which can quickly and quickly open the upper cover and replace the
filter element without any tools.
The pressure gauge is installed on the panel to continuously indicate the operating condition of the system and the pollution
degree of the filter element during operation.
Applications
Our lubricating oil hand held filter cart is mainly used in mining, metallurgy, petroleum, railway, machinery, chemical, textile, cement, power plants, meters and other departments. It plays a significant role in the purification and regeneration of various industrial lubricating oils with pollution degradation, prolonging the maintenance cycle and service life of the equipment and reducing production costs.
