Hand held filter cart
Hand held filter cart
Hand held filter cart

Hand held filter cart

Lubricant Oil Purifier

Model Number:

Rated pressure(Mpa) : 0.34

Original pressure loss(Mpa) : ≤0.02

Coarse filtration accuracy(μm) : 40 meshes

Use temperature(°C) : 6~80

Recommended viscosity for use(cSt) : 10~160

Get Quotation

Product Details

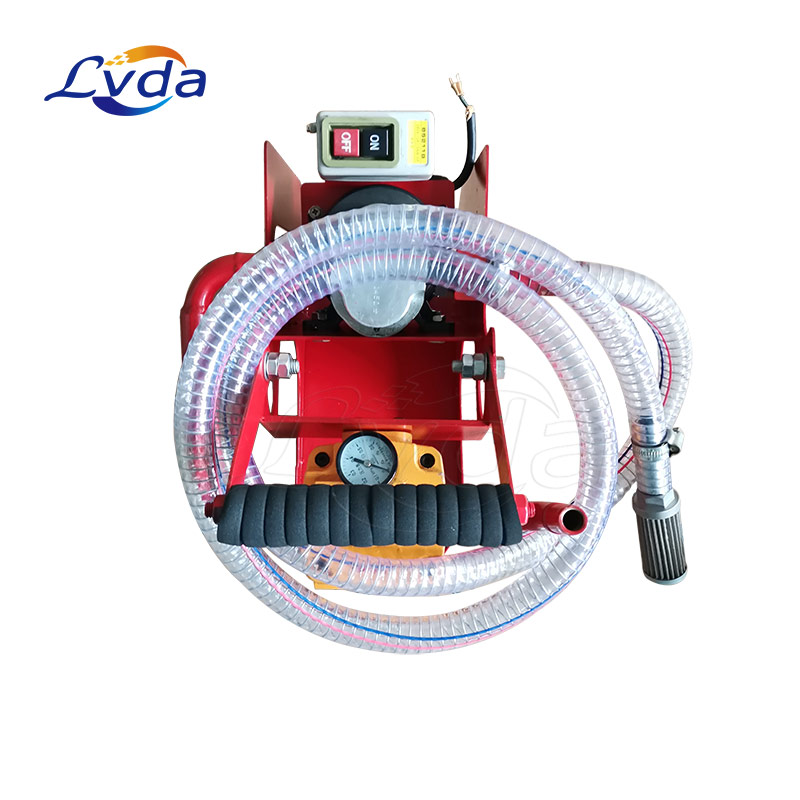

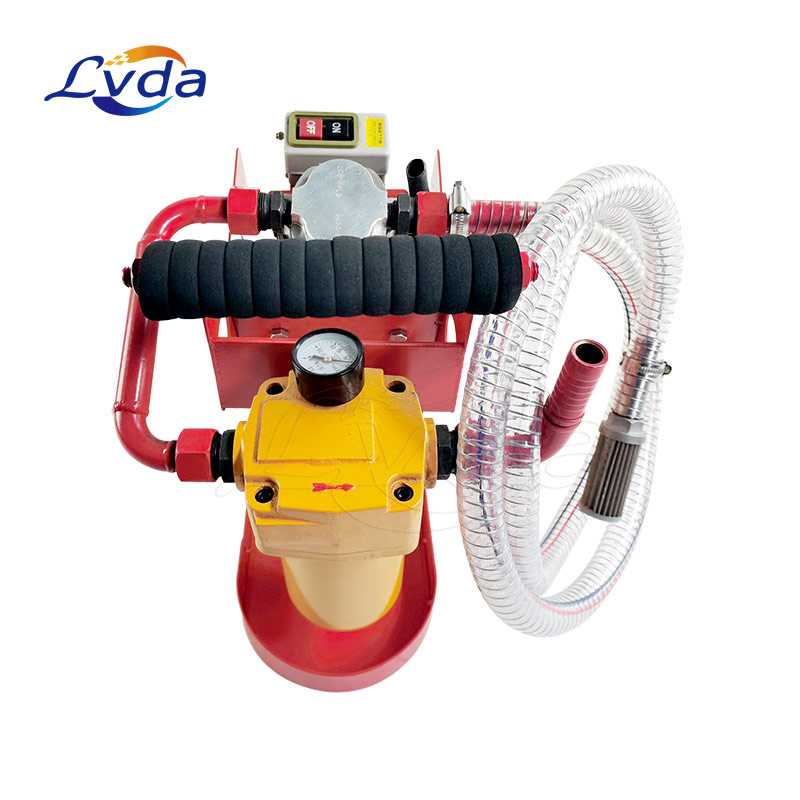

Hand held filter cart

Compact, lightweight and easy-to-operate, our hand held filter cart is designed to filter new fluids and clean up the existing fluids in systems to reduce contamination levels. This offline oil filtration system with a simple pump/ motor/filter construction is convenient for end-users to carry and operate almost anywhere. weighs only 18 kg! Our hand held filtration cart allows the hydraulic systems to continue operating without costly downtime. A water removal element can also be utilized on this oil filtration unit, which radically reduces the water contamination in the whole system.

Parameters

ModelAOP-6-*/**
AOP-10-*/**
AOP-16-*/**

Rated flow(L/min)

6
1016

Rated pressure(Mpa)

 0.34
Original pressure loss(Mpa)≤0.02

Coarse filtration accuracy(μm)

40 meshes

Fine filtration accuracy(μm)

3、 5、 10、 20、 40

Alarm differential pressure(MPa)

0.2MPa

Use temperature(°C)

6~80

Recommended viscosity for use(cSt)

10~160

Power supply(V)

AC380V three-phase, AC220V three-phase

Motor Power(kw)

0.180.250.35

Weight(kw)

131618

Dimensions(mm)

650x680x980
650x680x980
720x680x1020

Note: *- filter precision, such as 003 is 3 microns

**-Filter media, omitted: ordinary hydraulic oil; BH: water glycol; V: phosphate ester hydraulic oil.

Features

Lightweight and easy to carry

Filter, transfer in one- step operation

Minimized equipment downtime

Wide variety of filter elements options

Low noise, one person operation

Applications

*Hydraulic lubrication system refueling and maintenance

*The hydraulic,lubrication system bypasses filtration at work
