Product Details

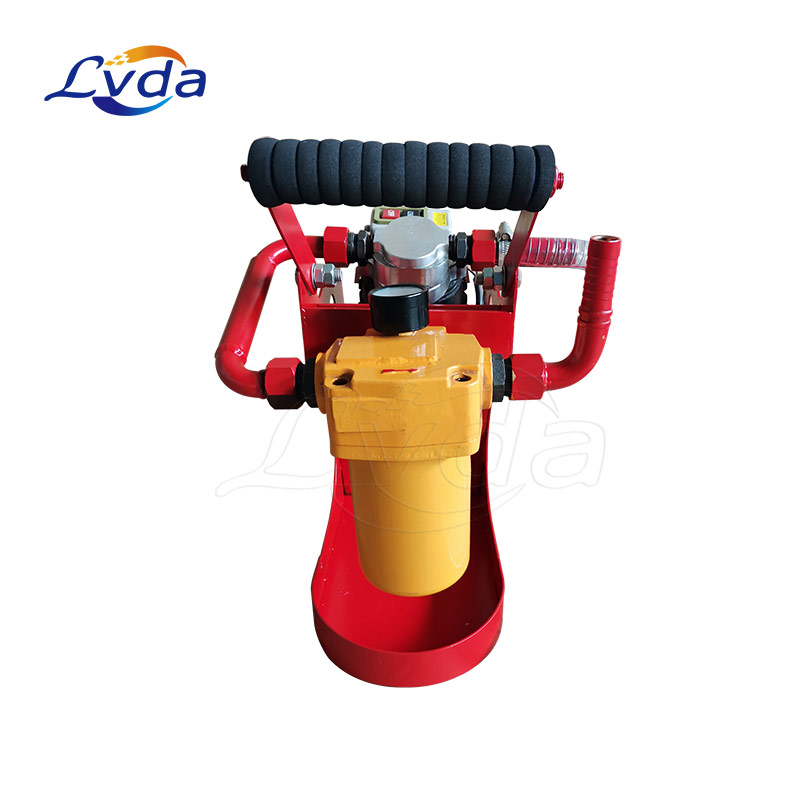

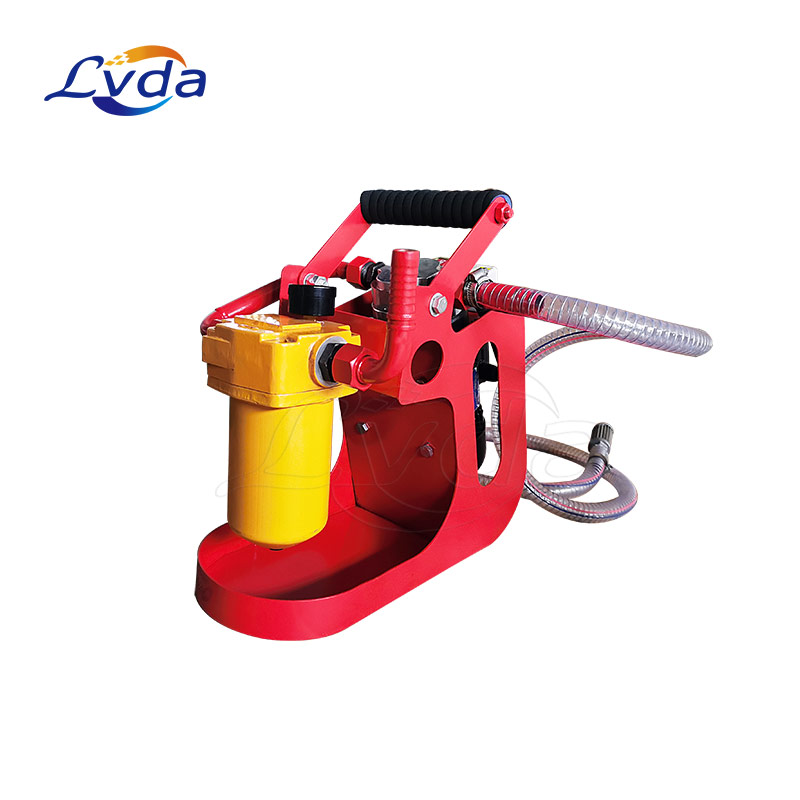

Handheld hydraulic filter units
Our hand-held filtration unit systems are compact, self-contained, “light-viscosity”, industrial separation systems.
With over 70% of all premature system failures being attributed to hydraulic and water source contamination, it is critical to implement the finest portable oil filter machine to all phases of a hydraulic circuit.
That includes the flushing, transferring, and filling processes.
Our hand-held filter units take the filtration technologies most commonly found in full-size filtration systems.
Often times, at least in our case, these units are sold with high efficiency, high capacity liquid pressure filter elements capable of removing particulate contamination and/or water quickly, conveniently and economically from the hydraulic fluid.
Hand-held filter elements are especially critical to the operating system pressure lines since new fluids often have contamination levels significantly higher than the recommended amount in most hydraulic systems.
These units are small enough for use as drum or tank top filtration for cleaning up existing systems as well as the pre-filtration of new fluids.
As the markets that uses hydraulic components become more dynamic, they are now more dependent on the highest quality filtration, separation, and reservoir accessories available.
Our hand-held systems are the premier offline, portable filter systems for maintaining oil water separation and mineral-based fluid conditioning in the market.
Parameters
| Model | AOP-6-*/**
| AOP-10-*/**
| AOP-16-*/**
|
Rated flow(L/min) | 6
| 10 | 16 |
Rated pressure(Mpa) | 0.34
|
| Original pressure loss(Mpa) | ≤0.02
|
Coarse filtration accuracy(μm) | 40 meshes
|
Fine filtration accuracy(μm) | 3、 5、 10、 20、 40 |
Alarm differential pressure(MPa) | 0.2MPa |
Use temperature(°C) | 6~80 |
Recommended viscosity for use(cSt) | 10~160 |
Power supply(V) | AC380V three-phase, AC220V three-phase |
Motor Power(kw) | 0.18 | 0.25 | 0.35 |
Weight(kw) | 13 | 16 | 18 |
Dimensions(mm) | 650x680x980
| 650x680x980
| 720x680x1020
|
Note: *- filter precision, such as 003 is 3 microns
**-Filter media, omitted: ordinary hydraulic oil; BH: water glycol; V: phosphate ester hydraulic oil.
Features
It is a tank, drum and tote top filter system that is compact in size and comes with replaceable element cartridges and a reusable bowl which helps minimize landfill waste.
The element service on this unit is seamless thanks to the the top-ported filter housings (included).
It is a portable service unit for filling and flushing hydraulic systems.
Our handheld hydraulic filter units can also be used for cleaning in bypass flow too.
This unit can be fitted with a contamination sensor to allow for the monitorization of solid particle contamination.
Applications
Our hand held filter are light-weight and extremely portable, they can be used throughout the plant or in service vehicles that use high viscosity fluids.
Supplementing continuous liquid filtration by system filters.
Cleaning up hydraulic systems following a component replacement.
Filtering new fluid before it is put into service.
Transferring fluid from drums to system reservoirs.
