Product Details

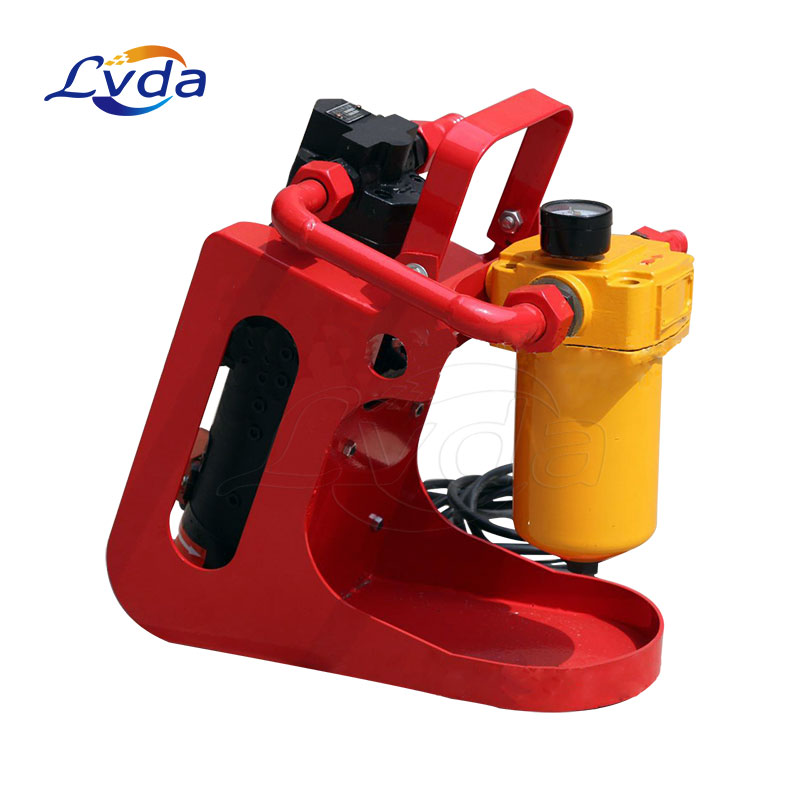

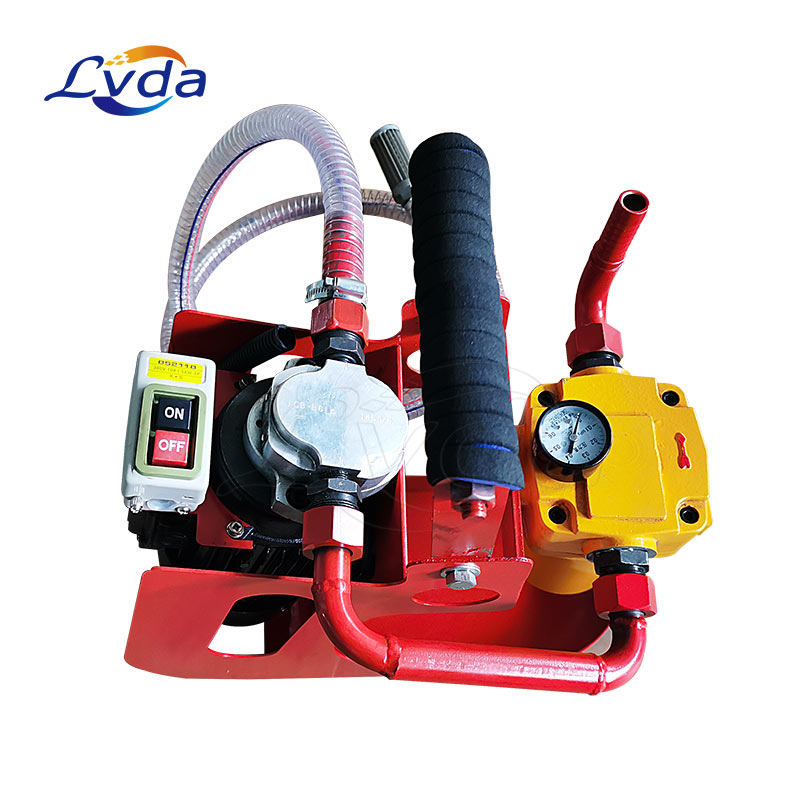

Portable lube oil purifier apparatus used in lubricating oil system
Our Portable lube oil purifier apparatus series is equipped with three-stage purification, is portable, and easy to operate. It also has a very low price, has no need for purification paper, and ensures no contamination to the ground. The portable lube oil purifier apparatus can effectively purify the tiny and fine mechanical impurity in oil, enabling it to be a preferred choice of power, petroleum, chemical, metallurgy, mechanics, and railway industries for oil filling, oil drawing and high-precision impurity removal of mutual inductor, lathe, and oil breaker, which do not use a large quantity of oil. The portable lube oil purifier apparatus combined with double FH trapezoidal network with H.P.M high molecule polymer material absorbing distinctively removes various impurities and particles. The filtering system has the backflush function to clean the filters and clear impurities from the filter automatically. It improves the effectiveness of filtering and extends the life of the filter immensely.
Parameters
| Model |
AOP-6-*/**
|
AOP-10-*/**
|
AOP-16-*/**
|
Rated flow(L/min) |
6
|
10 |
16 |
Rated pressure(Mpa) |
0.34
|
| Original pressure loss(Mpa) |
≤0.02
|
Coarse filtration accuracy(μm) |
40 meshes
|
Fine filtration accuracy(μm) |
3、 5、 10、 20、 40 |
Alarm differential pressure(MPa) |
0.2MPa |
Use temperature(°C) |
6~80 |
Recommended viscosity for use(cSt) |
10~160 |
Power supply(V) |
AC380V three-phase, AC220V three-phase |
Motor Power(kw) |
0.18 |
0.25 |
0.35 |
Weight(kw) |
13 |
16 |
18 |
Dimensions(mm) |
650x680x980
|
650x680x980
|
720x680x1020
|
Note: *- filter precision, such as 003 is 3 microns
**-Filter media, omitted: ordinary hydraulic oil; BH: water glycol; V: phosphate ester hydraulic oil.
Features
Primary Filter: Made of stainless steel material with double FH trapezoidal network filtering technology, it removes particles and impurities down to 80 microns.
Second-stage Filter: Made of stainless steel material with double FH trapezoidal network filtering technology, it removes particles and impurities down to 20 microns.
Fine Filter: Made by high polymer materials and imported from Germany, and thoroughly demulsifies and separates water from the waste oil. It removes particles and impurities down to 5 microns, making the oil clean.
Applications
● Impurity filtration of liquid oil during transportation.
●Bypass filtration of oil circuit system at work.
●Circular filtration of hydraulic lubricating system before it is put into operation.
●The oil of the hydraulic lubricating system is pumped out without being filtered by the pump of the equipment itself.
●Applicable oil: It is mainly used for the regeneration of lubricating oil such as mechanical oil, hydraulic oil, compressor oil, refrigeration oil, heat treatment oil, diesel oil, gear oil, gasoline oil and so on.
