Compact portable oil filter machine
Compact portable oil filter machine
Compact portable oil filter machine

Compact portable oil filter machine

Lubricant Oil Purifier

Model Number:

Rated pressure(Mpa) : 0.34

Original pressure loss(Mpa) : ≤0.02

Coarse filtration accuracy(μm) : 40 meshes

Use temperature(°C) : 6~80

Recommended viscosity for use(cSt) : 10~160

Get Quotation

Product Details

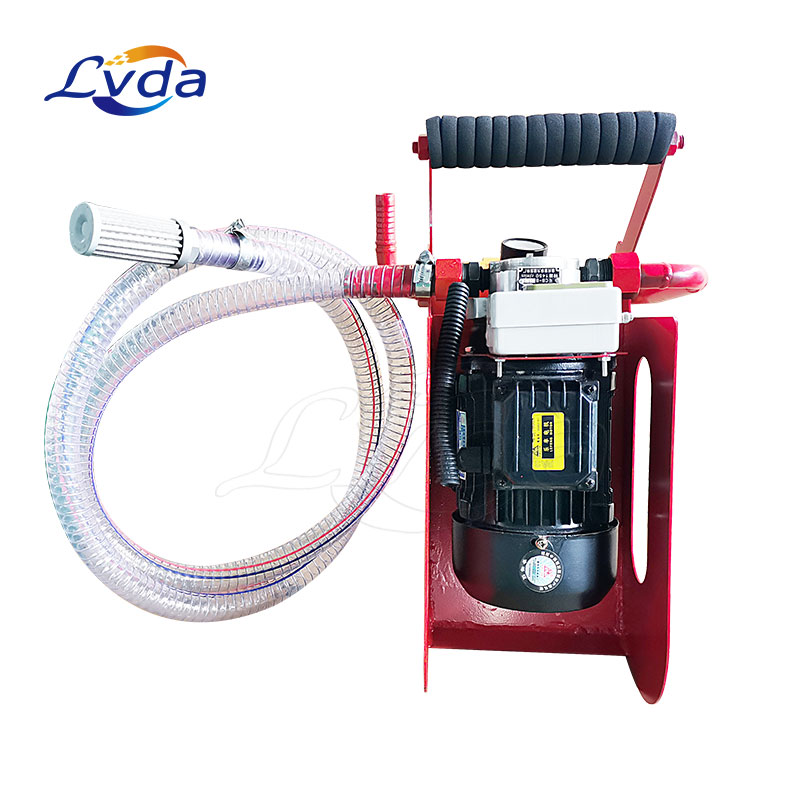

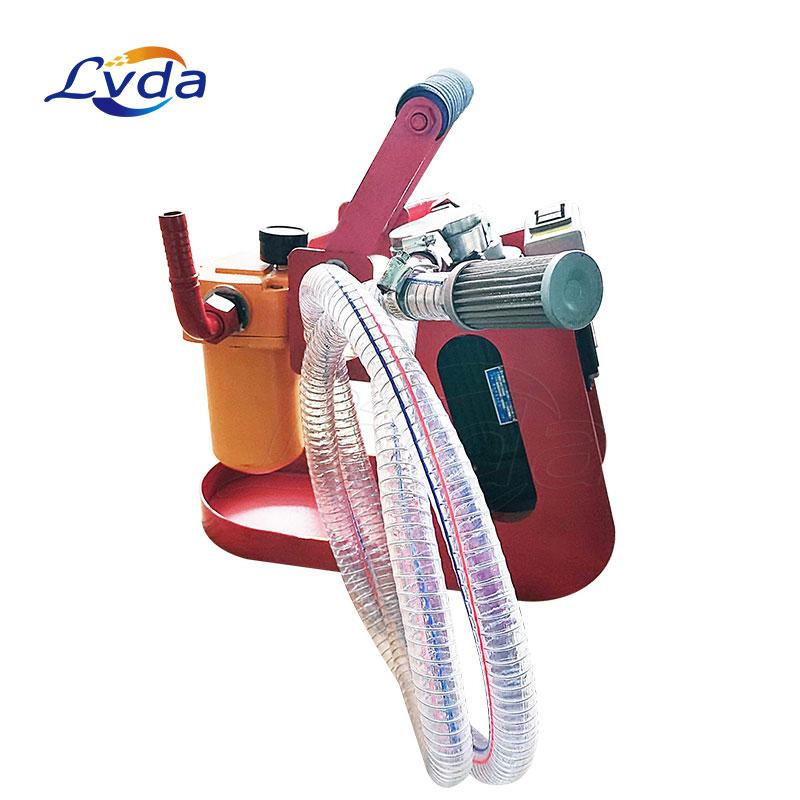

Compact portable oil filter machine

Compact portable oil filter machine is a portable way to filter multiple types of new and used oil, take oil samples, and transfer oil to and from storage containers and machines.

Portable oil filter machine are now considered a necessity when it comes to having an effective lubrication program thanks to their many benefits and uses.

Parameters

ModelAOP-6-*/**
AOP-10-*/**
AOP-16-*/**

Rated flow(L/min)

6
1016

Rated pressure(Mpa)

 0.34
Original pressure loss(Mpa)≤0.02

Coarse filtration accuracy(μm)

40 meshes

Fine filtration accuracy(μm)

3、 5、 10、 20、 40

Alarm differential pressure(MPa)

0.2MPa

Use temperature(°C)

6~80

Recommended viscosity for use(cSt)

10~160

Power supply(V)

AC380V three-phase, AC220V three-phase

Motor Power(kw)

0.180.250.35

Weight(kw)

131618

Dimensions(mm)

650x680x980
650x680x980
720x680x1020

Note: *- filter precision, such as 003 is 3 microns

**-Filter media, omitted: ordinary hydraulic oil; BH: water glycol; V: phosphate ester hydraulic oil.

Features

1.The compact portable oil filter machine includes a gear pump driven by a motor, which has the characteristics of low noise, strong corrosion

resistance and stable operation. It is especially suitable for liquids with weak lubrication performance.

2.Adopt thermal relay protection to prevent motor damage caused by motor overload

3.The coarse filter at the oil suction port protects the oil pump and prolongs the service life of the main filter.

4.The fine filter can select different accuracy according to different needs of users to achieve the required results.

Applications

1.Hydraulic lubrication system refueling and maintenance

2.The hydraulic,lubrication system bypasses filtration at work
